Sequencing Trades Around CFS Shaftwall Construction
Coordinate shaftwall assembly, service access, opening protection, and inspection timing with mechanical and framing trades before closure.

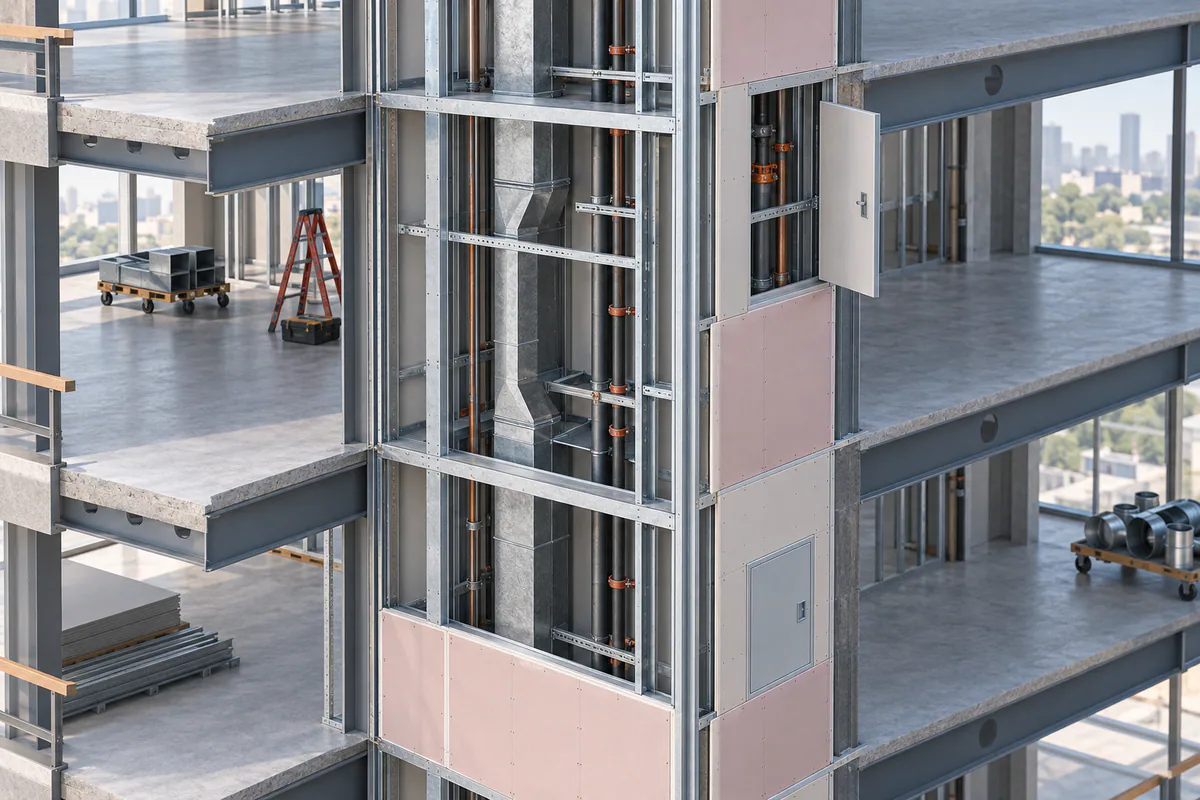

The condition to resolve
A shaft wall can be installed before services are ready, leaving later trades unable to complete supports or protection without opening the assembly. Shaft systems can use specific components and construction sequences rather than ordinary partition details. Review the accepted wall package and service installation plan together before closing access.
Coordinate before releasing the work
Identify shaft boundaries, assembly references, doors, access panels, and service penetrations. Ask trades which work requires access from each side and when it must occur. Coordinate framing, board, protection, and review stages in a shared sequence. Route changes in access openings or services to the applicable assembly and structural reviewers before modifying the wall.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Map assembly references and access openings by shaft and floor.
- Record each trade's required access side and completion stage.
- Coordinate service and protection review before enclosure closure.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Assembly | Accepted shaftwall package | Component and sequence requirements |
| Services | Access and support schedule | Completion before closure |
| Openings | Reviewed door and penetration details | Accepted protection arrangement |
Verification and handoff to the next trade
Before the shaft closes, reconcile service completion with the assembly's required observations and the approved access schedule. Record accepted openings and protection systems by shaft and floor. Confirm that later maintenance access uses designated panels rather than requiring unplanned removal of the enclosure. If a remaining service item cannot be completed within the planned sequence, obtain a revised coordinated approach instead of closing the wall and assuming the service crew will find an acceptable route afterward.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a shaftwall use the ordinary partition detail?
Use the approved shaft assembly. Specific studs, layers, openings, and installation conditions may differ from the project's typical partitions.
What if a service is incomplete at closure?
Resolve the access and sequence with the responsible parties. Do not assume later removal or cutting of the rated enclosure will be acceptable.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
