Steel Framing Punchouts and Service Holes: Coordinate Before Cutting
Plan service routes through steel framing, distinguish factory punchouts from field changes, and prepare clear information for resolving hole conflicts.
Distinguish a factory opening from a field alteration

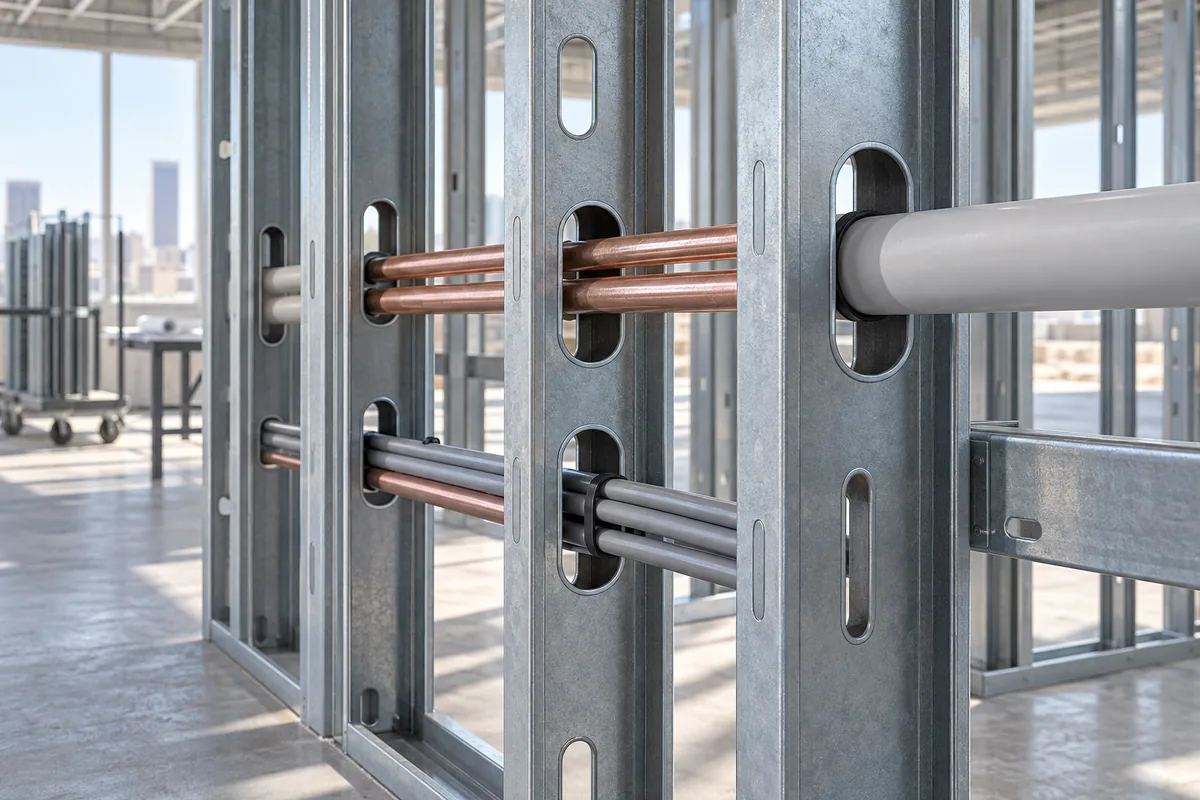

Factory punchouts are part of a manufactured member's documented configuration. Cutting a new hole, enlarging an opening, or notching a flange changes that configuration. The size of a pipe alone does not establish what may be removed from the framing.
SFIA's guidance recommends using engineered factory punchouts and identifies engineering review as important for field-cut studs. This guide intentionally does not provide a universal hole-size allowance: member role, location, and product conditions matter.
References: Cutting and notching in cold-formed steel framing
Make service coordination specific
A useful service-opening schedule identifies the wall or member, the route, the required space, and the reason the factory opening does not resolve the conflict. Include nearby connections, bearings, and openings in the drawing extract.
| Condition | Record | Next step |
|---|---|---|
| Factory punchout fits the coordinated route | Product and route reference | Verify alignment and applicable service protection |
| Punchouts do not align | Member orientation and cut-length information | Resolve layout before modifying members |
| Service needs a new opening | Location, size request, and affected member | Obtain a reviewed framing solution |
| Existing member has been cut | Photographs and exact location | Document condition and request evaluation |
Check orientation before assuming a hole is missing
Manufacturer punching patterns may be referenced from a particular end of the member. ClarkDietrich's stud guidance notes that consistent orientation helps align punchouts. A misaligned route can therefore be an installation-coordination issue rather than a need for another hole.
Compare the delivered product and cutting schedule with the wall layout. If different stud lengths occur, label the groups and verify their intended orientation before distributing them. A short review of one representative bay can expose a mismatch before it repeats across a wall.
References: Structural studs and factory punchouts
Resolve the whole conflict, including bracing
Services may compete with bridging, backing, opening framing, and movement connections. Show all affected components in the question sent for review. A solution that clears the pipe but interrupts a required restraint line is incomplete.
For example, if a service bundle crosses an intended bridging location, prepare an elevation with both routes and the adjacent opening. Ask for a coordinated resolution, then update the service and framing records together. Keep the response tied to the exact wall location so it is not reused indiscriminately elsewhere.
Use a before-cut checklist
The most effective check occurs before anyone selects a cutting tool. Confirm whether the issue can be resolved through the planned factory opening or a revised service route. If framing alteration remains necessary, make sure the reviewed instruction is available to the person doing the work.
- Identify the exact member and its structural role.
- Locate the proposed hole relative to ends, connections, and other openings.
- Check the current manufacturer's configuration and project drawings.
- Coordinate services, bridging, and required edge protection.
- Obtain and record the applicable review before alteration.
- Inspect and photograph the completed condition before concealment.
Handle an unplanned cut as a traceable issue
If an opening has already been cut, record the condition accurately and keep the affected work identifiable. Do not hide it with an improvised patch or describe it only as a small hole. The reviewer needs the member description, measured location, photographs, and surrounding condition.
A documented disposition may call for a repair, replacement, or another action. Keep that decision with the final inspection record and ensure it applies to every affected member, not just the example shown in the initial photograph.
Common questions
Can I copy the size of a factory hole for a new field hole?
No. The position, member, and evaluated configuration also matter. A factory opening does not provide blanket approval to create matching holes elsewhere.
Are flange notches equivalent to web holes?
No. They alter different parts of the section. Describe the exact proposed change and obtain a reviewed solution rather than applying a web-hole rule to a flange.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Cutting and notching in cold-formed steel framing SFIA / BuildSteel
- Structural studs and factory punchouts ClarkDietrich
