Steel Framing Rough Openings: Coordinate Headers, Jambs, and Sills

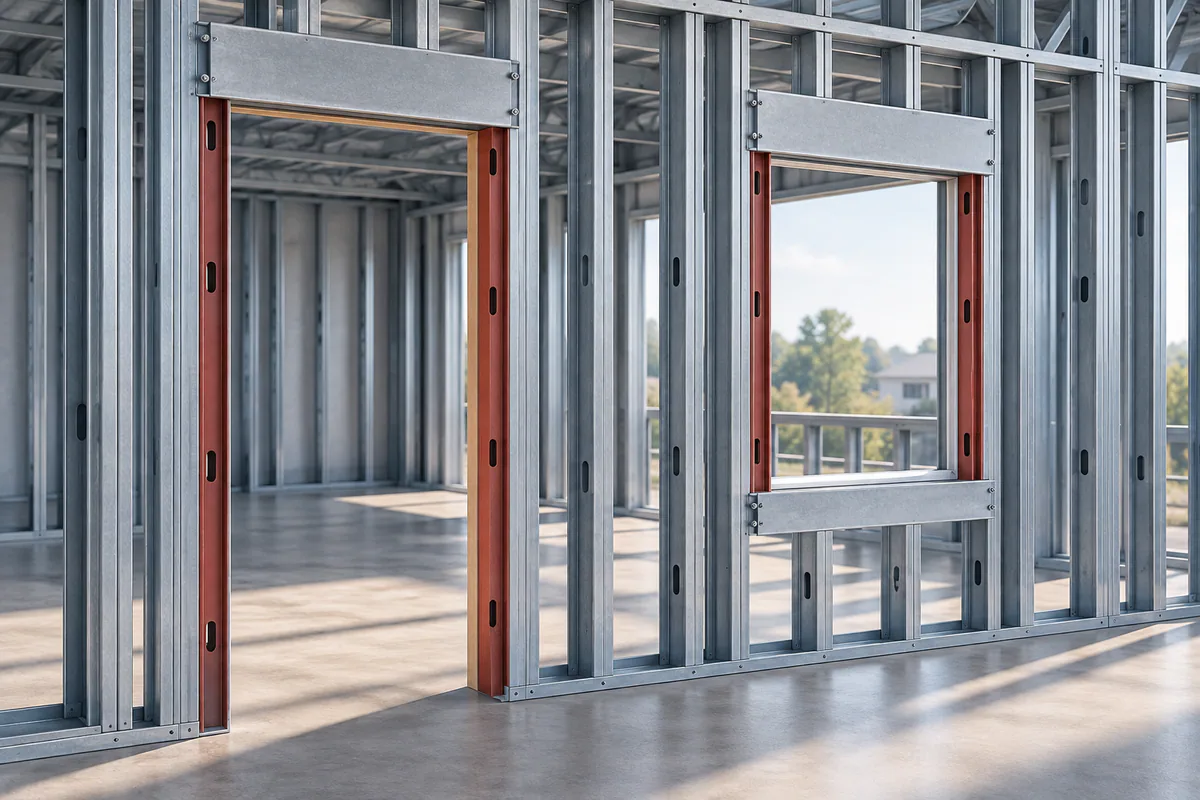

Plan steel-framed door and window openings with a clear schedule for dimensions, headers, jambs, sills, connections, and the surrounding wall assembly.
Begin with the opening's purpose and reference dimensions
A rough opening must be coordinated with the selected door, window, louver, or other inserted assembly. Establish which dimensions describe the clear opening, the frame outside dimension, and the framing opening. Keep those terms separate so a supplier does not cut a member to the wrong reference.
Then identify the wall type, location, finish buildup, and relevant structural condition. An opening schedule is most useful when its mark leads directly to a framing detail and the inserted product's current installation information.
Identify every part of the opening package
Headers, jambs, sills, adjacent studs, and connection components need coordinated descriptions. A proprietary opening system may replace a conventional built-up arrangement; ClarkDietrich's RedHeader PRO literature illustrates this approach with matched opening members and connectors.
This does not mean a proprietary component can be mixed with an unrelated clip or dimension rule. Keep the chosen assembly's identifiers together on the submittal and material list.
| Component | Confirm | Coordinate with |
|---|---|---|
| Header | Selected assembly and finished length | Jamb connection and framing above |
| Jambs | Member configuration and support detail | Inserted frame and surrounding studs |
| Sill | Elevation and framing detail | Window support and enclosure details |
| Connectors | Exact part and attachment information | Both connected members |
| Adjacent framing | Stud and finish support requirements | Wall assembly and services |
References: RedHeader PRO rough opening system
Ask for a complete selection review
Manufacturer opening-framing resources often request opening type, location, wall geometry, and design requirements because the selection depends on their combination. ClarkDietrich's technical-services page provides separate resources for opening-framing review.
When requesting assistance, send the relevant drawing extract rather than only a width. Include the proposed opening product, the wall above and beside it, the supporting structure, and any unusual attachment. List unresolved information clearly so a preliminary selection is not mistaken for a completed project review.
References: Technical services and opening-framing sizing resources
Example: a door changes after the takeoff
Suppose an interior door becomes wider after the framing takeoff is complete. Update more than the header length. Review the jamb positions, adjacent stud layout, head connection, door-frame requirements, finishes, and any services routed around the opening.
Mark the affected opening as unreleased while the change is resolved. Then issue one revised material record identifying removed quantities and added quantities. This is clearer than leaving the original order in place and adding a loose note for a longer header.
Check installation readiness before framing
A useful readiness check prevents the opening from being assembled around an obsolete dimension. Confirm that the frame or window submittal, opening schedule, and framing details describe the same condition. If a field dimension differs, document it before repeated pieces are cut.
- Match the opening mark across all drawings and product documents.
- Confirm the definition of rough-opening width and height.
- Verify header, jamb, sill, and connector descriptions.
- Coordinate finish thickness and required attachment access.
- Identify rated, acoustic, weather, or movement interfaces.
- Record the resolved revision before releasing fabrication or installation.
Keep enclosure and structural questions connected
At an exterior opening, framing, flashing, air sealing, and the inserted assembly occupy the same space. Track which trade provides each interface and whether the framing geometry leaves room for the approved enclosure details. A framing review should not silently remove an enclosure requirement.
Use photographs and marked-up details to close field questions. A clear record of the final opening arrangement helps subsequent trades locate approved attachment areas without altering the framing to make their own work fit.
Common questions
Is the header length always the rough-opening width?
No. The selected connection system determines the member's finished length relative to the opening. Use its approved detail rather than a general subtraction rule.
Can a window opening be framed like a door opening?
Do not assume so. Sills, supporting members, attachment requirements, and the surrounding wall condition may differ. Coordinate the specific opening assembly.
