Handing Off Head-of-Wall Firestop Details in CFS Construction
Coordinate CFS wall-head movement, substrate, listed firestop systems, installation boundaries, and review timing before wall closure.
The condition to resolve

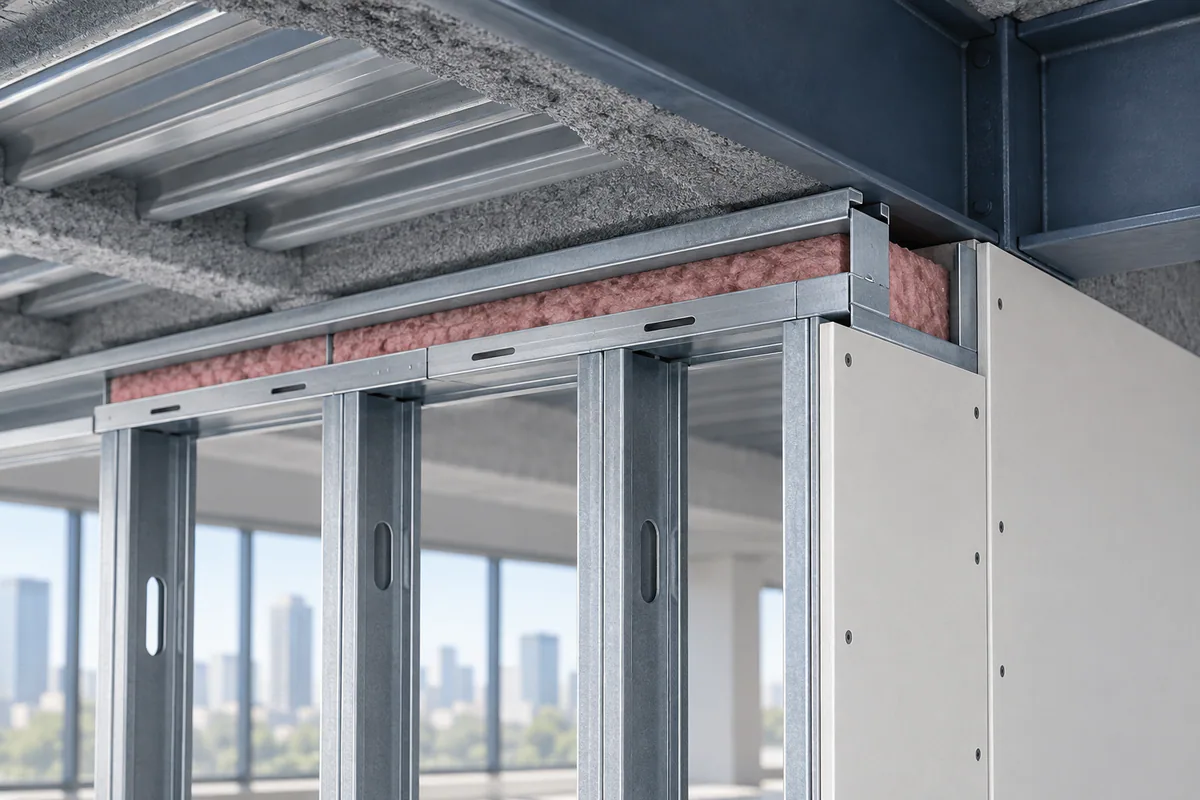

The framing trade can complete a movement-track installation while another trade expects a different joint geometry for firestopping. Deck flutes, fireproofing, wall layers, and actual gap conditions affect the interface. Select the accepted system from project-specific documentation rather than treating firestop material as a universal filler for any wall-head condition.
Coordinate before releasing the work
Compare the framing movement detail with the proposed listed joint system and actual supporting substrate. Assign installation of joint components and preparation work, including concealed parts. Have the relevant reviewer confirm compatibility before the track is purchased. Agree on observation access and record the current listing or accepted project detail used for installation.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Match actual substrate and joint geometry to the accepted system.
- Reconcile movement-track and firestop installation responsibilities.
- Review concealed joint components before board closure.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Movement | Approved framing detail | Required joint action |
| Fire protection | Accepted listed system | Compatible substrate and geometry |
| Handoff | Trade responsibility schedule | Complete installed joint |
Verification and handoff to the next trade
At handoff, verify the actual wall-head geometry and installed components against the accepted system, including the interfaces with deck or fireproofing. Record any deviation for the assigned reviewer rather than substituting an additional sealant layer. Preserve movement requirements when board and finishing crews arrive; their fasteners or rigid fill can alter the reviewed joint action. Keep system identity and location in closeout records so repairs use the correct documented condition.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does fire-rated track alone create a rated wall head?
Use the complete accepted system and its conditions. Product labeling does not establish compatibility with every substrate, gap, wall layer, or movement requirement.
Can rigid finishing material fill the movement joint?
Submit that proposal for review. It can restrain movement or depart from the accepted fire-resistance joint configuration.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
