Maintaining a Penetration Log for Rated CFS Walls
Track service penetrations in rated CFS walls by location, assembly, service type, accepted system, installer, and review status.
The condition to resolve

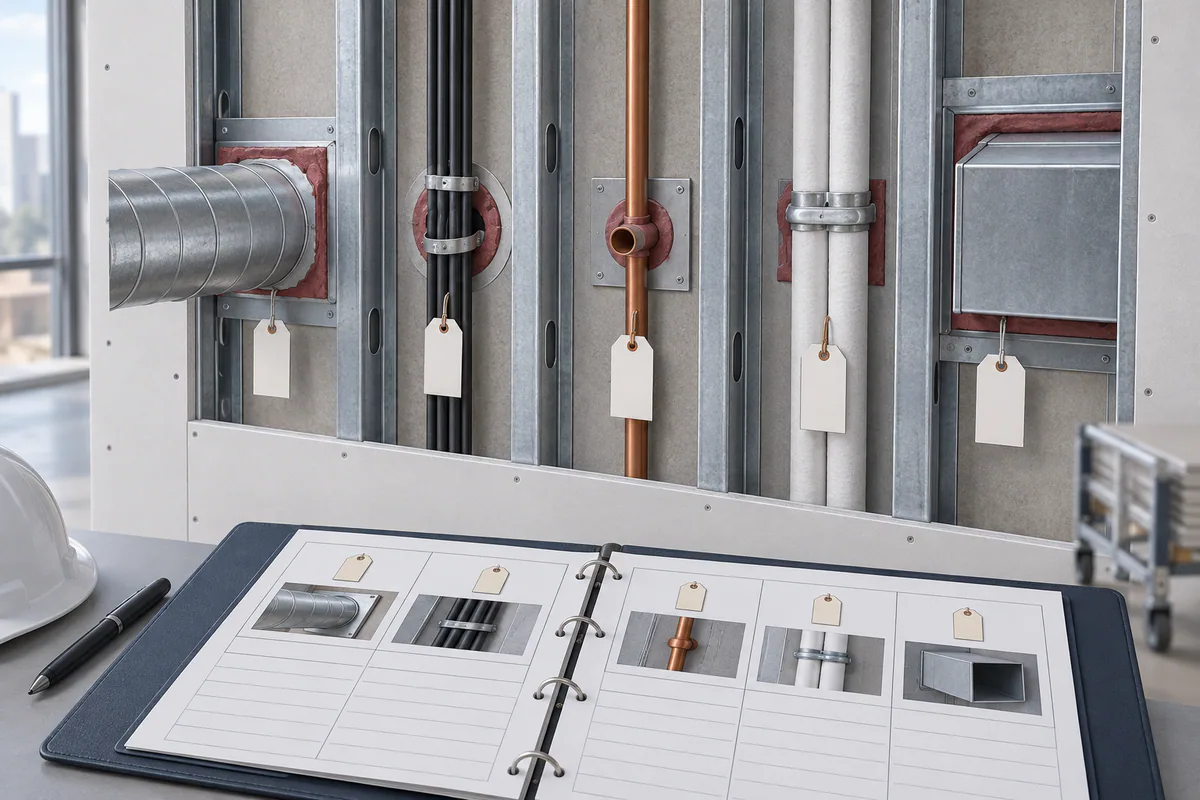

Repeated rated walls can contain many service crossings installed by several trades. A generic firestop submittal does not show which accepted system applies to a particular crossing. A location-based log helps reconcile actual wall construction, service geometry, and installation status before finishes hide the evidence.
Coordinate before releasing the work
Assign identifiers using floor, room, wall, and penetration location. Record the wall assembly, service description, proposed protection system, and review status without assuming one product covers every condition. Coordinate changes in pipe, insulation, or opening geometry with the assigned reviewer. Keep inspection requirements separate from the administrative log so neither is mistaken for the other.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Identify each crossing by actual wall and floor location.
- Link service geometry and wall assembly to accepted protection.
- Update status after installation, review, and later additions.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Location | Penetration identifier | Correct wall assembly |
| System | Accepted protection documentation | Actual service compatibility |
| Status | Installation and review record | Closed or unresolved item |
Verification and handoff to the next trade
Close each log item only when its installed condition and required review correspond to the accepted system. Photographs should show identifiable locations and relevant geometry while written records explain acceptance or unresolved variations. Update the log when another trade adds a service after initial closure. Deliver the final record to the owner so later cabling or pipe work can identify protected crossings rather than treating a finished wall as unrestricted space for additional penetrations.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does one approved firestop submittal close every penetration?
No. The installed condition must match an accepted system for the actual assembly and service. Track each location and its review status.
Is the log itself an inspection?
No. It organizes information. Required observation and acceptance belong to the project's assigned inspection and review process.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
