Cold-Formed Steel Connection Inspection Planning

Define the inspection before the work is concealed

An inspection plan should identify what will be checked, who will check it, and when the relevant surfaces will still be visible. Start with the project's approved details and required inspection provisions. A general online checklist cannot determine the scope of a code-required inspection or replace the responsible inspector's judgment.

For day-to-day coordination, group connections by detail rather than by the nearest room name alone. Record the building location as well, so the field condition can be found again. This pairing allows a reviewer to compare repeated connections while keeping any local exceptions visible.

• Steel Connection Documentation Checklist →

Match the installed products to the reference

Cold-formed steel connector catalogs include product-specific installation details and fastening information. Use the named product's requirements, including the appropriate member and fastener arrangement, rather than applying a typical drawing from another connector.

Collect product labels while they are available. A connector stamp, a fastener box, and the accepted submittal can help establish identity more reliably than a distant photograph of a finished wall. If identity cannot be confirmed, record that uncertainty explicitly instead of writing a general pass based on appearance.

References: Cold-formed steel connector catalog · Fastening information for cold-formed steel construction

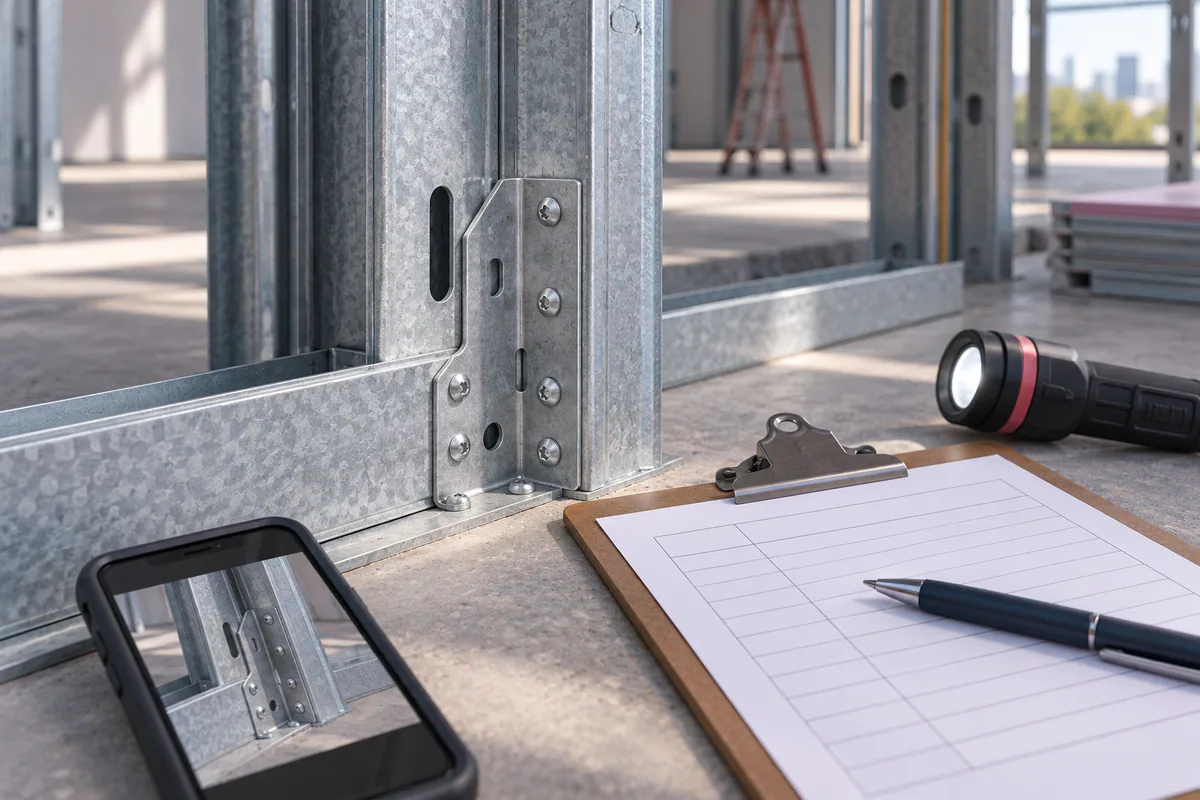

Create a useful field record

Keep observations factual and separable from the final acceptance decision. The following fields support coordination but do not define a complete structural inspection standard.

Pay attention to connections that must move

Some details are intended to accommodate relative movement. Their inspection questions differ from those for a fixed connection. Confirm which detail applies and make sure the record identifies any condition that appears to obstruct its intended action.

This is especially important when later trades add finishes or accessories near a movement connection. Coordinate access and inspection timing so that a condition is not hidden before it can be reviewed. Do not add fasteners simply because an unused hole or slot appears incomplete; the approved detail determines the intended arrangement.

• Slotted Holes and Movement Connections in Steel →

Example: closing an observation properly

Suppose a field review finds a screw that spins without visibly seating at a connector. Record the exact location, product information, and observed condition. Keep the entry open while the appropriate reviewer determines what investigation or correction is required. Avoid marking it complete merely because a different screw has appeared nearby.

Close the entry with the accepted instruction, evidence of the completed work, and the required follow-up inspection. If the condition occurred repeatedly, record the affected extent separately so the team can determine whether other locations need review. This creates a traceable resolution rather than a collection of unexplained before-and-after photographs.

• Arrange inspection before relevant work is covered.
• Use the current detail and exact product references.
• Separate observed facts from assumptions about capacity.
• Keep unresolved items visible until accepted closeout.
