Reviewing Rated Floor-Ceiling Assemblies with CFS Joists
Review CFS floor-ceiling ratings using the exact joist, deck, insulation, ceiling, openings, and accepted assembly documentation.
The condition to resolve
A floor package may propose one joist and ceiling configuration while the finish and mechanical trades propose another. Product pages can refer to rated assemblies with specific conditions and exceptions. The project must identify the actual accepted assembly rather than describe any floor made with steel as having a particular fire rating.
Coordinate before releasing the work

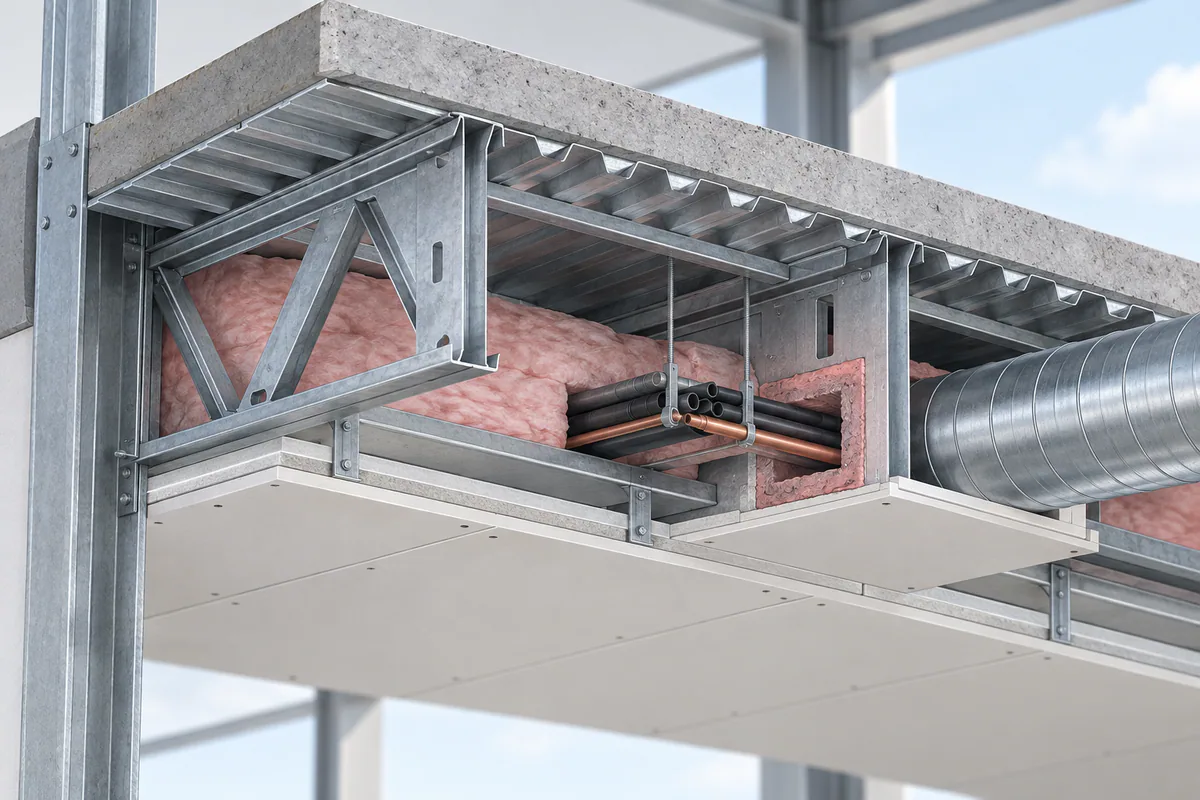

Compare the proposed joist, deck, topping, insulation, ceiling layers, suspension, and openings with the accepted documentation. Assign review of substitutions and service penetrations before procurement. Confirm whether a product depth or configuration is covered rather than inferring coverage from a family name. Coordinate field observations while the relevant layers remain visible.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Compare every floor and ceiling layer with the accepted assembly.
- Review product configuration exceptions before purchase.
- Coordinate service openings and access before ceiling closure.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Structure | Identified joist and deck package | Covered assembly configuration |
| Ceiling | Layer and suspension documentation | Accepted protection system |
| Services | Penetration and access details | Compatible floor-ceiling interfaces |
Verification and handoff to the next trade
At each layer handoff, record the installed product and applicable assembly reference. Close substitutions through the assigned review so one trade's change does not invalidate another trade's accepted detail. Before ceiling closure, reconcile penetrations, access panels, and suspension with the documented configuration. Retain the final floor-ceiling assembly basis by area for maintenance and renovations; a general statement that all floors are steel does not establish which protected assembly was actually installed.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Does steel framing automatically provide a fire rating?
No. The rating applies to an accepted assembly under stated conditions. Match its components and installation details, and review changes through the assigned process.
Can any joist depth within a product family be used?
Check the actual assembly documentation and product exceptions. Family branding alone does not establish coverage for every size or configuration.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
