Steel Studs vs. Track: How the Wall Components Work Together
Identify steel studs and track, understand their different jobs in a wall, and check sizes, thicknesses, openings, and head details before ordering.

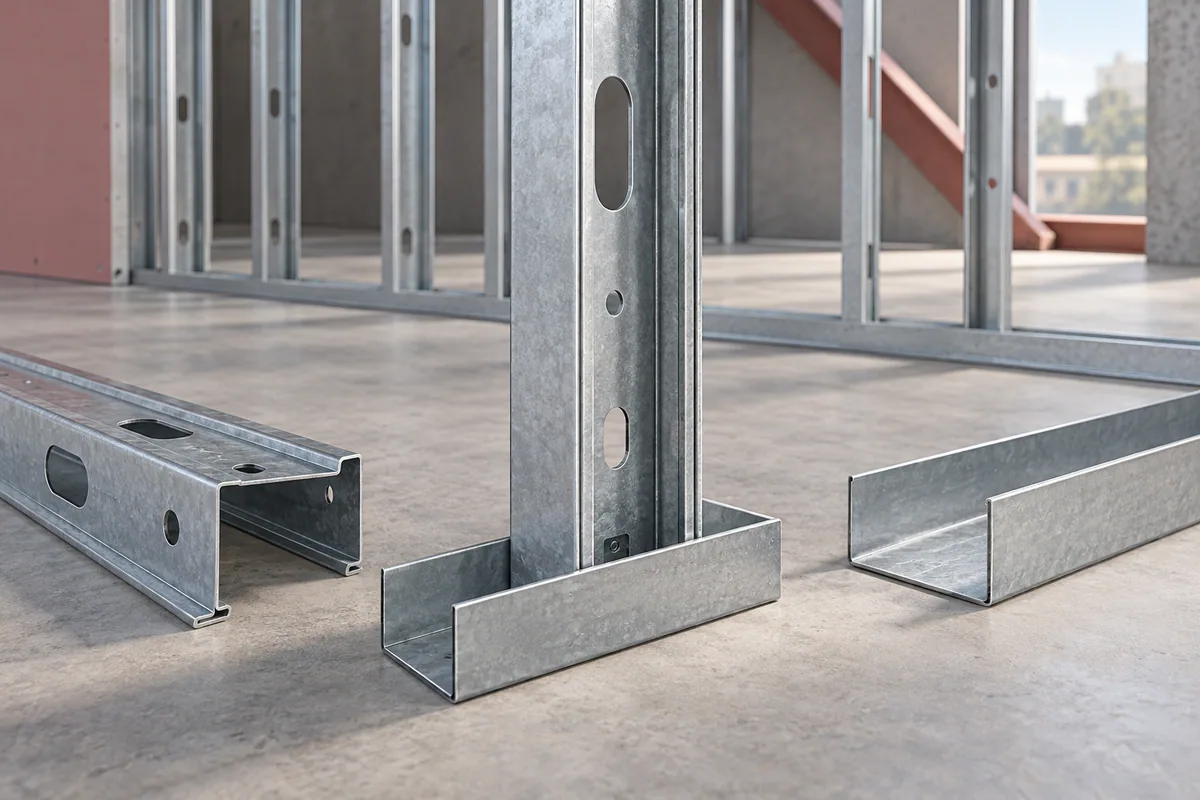

Identify the two profiles
A typical steel stud is a C-shaped member with a web, flanges, and return lips. Track is generally a U-shaped runner without those stud lips. In a conventional wall, studs form the repeated vertical members while track locates their ends along the wall line.
ClarkDietrich identifies structural track for several roles beyond top and bottom runners, including joist closures and opening framing. A piece described as track therefore needs a location and application as well as a size. Do not identify its purpose from its shape alone.
References: Structural track: applications and product data
Match the detail, not only the nominal depth
The stud depth and track designation help describe fit, but flange or leg dimensions and thickness remain separate requirements. A wide track leg may relate to a particular connection or movement detail. It should not be substituted solely because it accepts the stud.
| Item | Stud check | Track check |
|---|---|---|
| Profile | Web, flange, return lip | Web and leg configuration |
| Material | Thickness, grade, coating | Specified thickness, grade, coating |
| Length | Approved cut length by wall condition | Piece lengths and splice locations |
| Connection | Stud attachment or movement provision | Attachment to support and stud interface |
Separate wall fields from special locations
The repeated field studs may be only one part of a wall package. Openings, ends, intersections, and attachments can introduce different members. Give these locations their own takeoff lines instead of assuming all steel in the wall has one description.
For example, a corridor wall may contain repeated studs, reinforced door jambs, a specific header, backing for equipment, and a movement connection at its top. Counting studs by wall length does not capture those details. Mark each exception on the plan before combining the quantities.
Look at punchouts and stud orientation
Factory punchouts can serve both services and bridging. ClarkDietrich notes that consistent end orientation matters when aligning punchouts. A bundle of correctly specified studs can still require sorting if cut lengths or end orientations differ.
Ask how the selected product is punched and whether that arrangement matches the wall coordination drawings. Record unpunched members separately. When an opening or service route interrupts a regular pattern, resolve the conflict before site crews depend on an assumed clear passage.
References: Structural studs and factory punchouts
Check the top connection before cutting studs
A fixed head and a movement head are different conditions. The project detail establishes how the top of the stud meets the overhead structure and which parts can move. The nominal floor-to-floor dimension is therefore not automatically the stud cut length.
During coordination, pair each wall mark with its head detail and required field measurements. If the ceiling hides the connection, plan the inspection before concealment. A clear label on the material list is more useful than a general note saying all track is the same.
- Identify the wall type and whether it carries building loads.
- Confirm the approved base, head, and opening details.
- Record component descriptions separately for studs, track, and accessories.
- Resolve mismatches between wall schedules and detail callouts before release.
Make the supply list readable in the field
Use one consistent wall identifier across the plan, material request, delivery labels, and issue list. For each line, include the component designation, length, quantity, and finish. Keep a separate field for unresolved information so a question cannot be mistaken for an accepted material change.
When reviewing an alternate, ask whether the entire wall arrangement remains compatible. A successful fit in a loose sample is useful for checking geometry, but it does not establish structural or assembly performance.
Common questions
Should studs and track always have the same thickness?
Follow the specified assembly. The required track thickness and leg configuration depend on its role and connections; matching stud thickness is not a universal selection rule.
Can track be used to make every header?
Only when the reviewed opening detail calls for that arrangement. Header configuration, connections, and supporting jambs should be identified as a complete assembly.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural track: applications and product data ClarkDietrich
- Structural studs and factory punchouts ClarkDietrich
Prepared with AI assistance. Linked references require current project-specific review. How these guides are prepared.
Prepare a supply inquiry
- Record the project drawing or detail and the specified product, profile, or system.
- List the complete configuration, physical units, quantities, and cuts per piece.
- Request current manufacturer documents; confirm compatibility, price, and availability before ordering.
- Obtain the responsible professional's review for loads, code requirements, or installation.
