Header To Jamb Clip
Header To Jamb Clip. Connection hardware for metal building framing. Match the clip geometry and attachment location to the adjoining members, hole pattern, and connection requirements in the engineered drawings. Choose color / finish for your project.
Header_To_Jamb_Clip

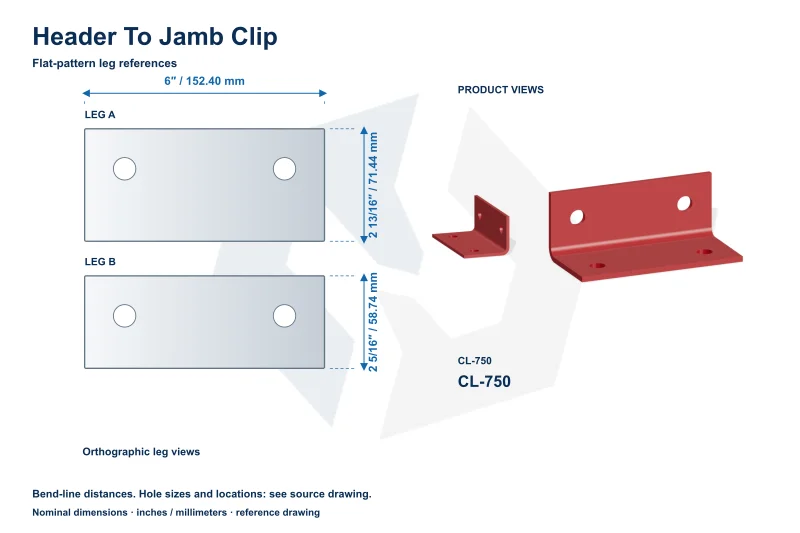

1 / 3 · Original rendered product illustration. The finish and member length shown are representative; refer to the selected product options.
The 3D view illustrates the shape, gauge, and finish. Confirm dimensions, holes, and fabrication details for your order.
OPTIONS
Configure this component
Choose specifications for your project.
Color / finish
Red Oxide- Color / finish
- Red Oxide
- Part number
- 8301-0704863
Estimate for the selected pieces.
Reference price: $7.13 per piece.
Published dimensions and weights
- Part
- CL-750
- Flat pattern
- 6 × 5-1/8 in
- Bend
- 90° at 2-13/16 in
- Marked holes
- 9/16 in diameter
Dimensions describe the manufacturer's flat-pattern drawing before bending. The checked product reference does not publish a weight or plate thickness.
