Cold-Formed Steel Load Paths: Follow the Connections
Learn to trace steel framing loads through members, connections, and supports, and identify coordination gaps at openings, transitions, and alterations.
Think in connected steps

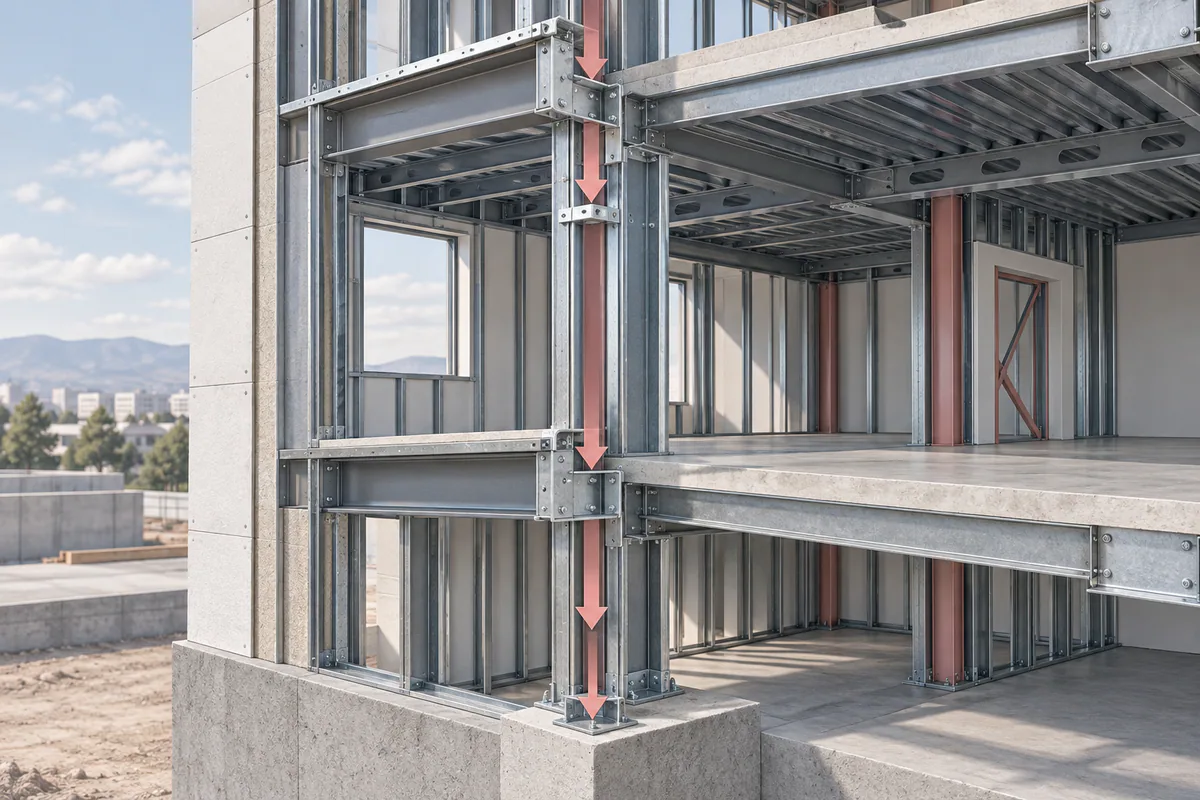

A load path describes how a force moves through a structure to its supports. In a framing review, that means following the supported material into a member, across its connections, and onward into the supporting system. A well-described member does not complete the path if its connection is missing from the documents.
CFSEI maintains technical guidance specifically devoted to load-path considerations in cold-formed steel construction. Use such resources for deeper engineering study; this guide focuses on recognizing coordination questions before materials are ordered or concealed.
References: Load-path and inspection technical-note directory
Separate the questions for different actions
Do not assume that tracing gravity loads answers every connection question. The relevant actions and combinations are established by the project design. Your coordination record should identify which detail resolves each interface without trying to calculate an informal capacity.
| Start with | Follow through | Ask at the interface |
|---|---|---|
| Supported floor or roof material | Supporting member and its ends | Which detail transfers the reaction? |
| Wall pressure | Cladding, studs or girts, supports | How does the force reach the primary structure? |
| Uplift or reversal | Attachments along the stated path | Does the reviewed detail address this action? |
| Equipment attachment | Backing and framing to supports | Who has reviewed the complete attachment path? |
Give connectors a visible role
The BuildSteel glossary distinguishes a member from a connector and describes connections as the parts that transmit forces between members. This vocabulary is useful in material reviews: a connector should not disappear into a miscellaneous allowance if the assembly depends on it.
Mark the interfaces on a drawing extract and assign each one a detail reference. If two packages meet, identify which party supplies the connecting hardware and which document defines its installation. That simple responsibility map can reveal a gap long before the first delivery.
References: Cold-formed steel framing glossary
Inspect transitions and interruptions first
Openings, steps in elevation, offsets, changes of material, and framing ends deserve focused review because a straightforward path may change at those locations. Trace each condition using the actual detail rather than extending a typical wall assumption through it.
Imagine a wall-mounted equipment item added beside a door. The local attachment may seem straightforward, but the nearby opening changes the framing available to receive it. Record the equipment position and proposed backing on the opening elevation so the design team can evaluate the complete support arrangement.
Use a drawing walk-through
Choose one representative assembly and follow it from supported item to final supporting structure. Repeat the exercise at atypical locations. The output should be a short list of confirmed references and unresolved interfaces, not an unofficial calculation.
- Identify the item or surface applying the load and its drawing reference.
- Locate the member that receives it and verify its scheduled description.
- Find the connection detail at each end or intermediate support.
- Continue into the next supporting member or structure.
- Identify restraint, movement, and local reinforcement details along the path.
- Assign unanswered interface questions to the appropriate project reviewer.
Carry changes through the entire chain
When a member or attachment changes, revisit the interfaces connected to it. A product substitution may affect hole arrangement, available connection area, thickness, or required accessory parts even when the visible wall geometry stays the same.
Record the accepted revision on the material list and inspection plan. This keeps purchasing from ordering an obsolete connector and gives the installer a way to verify that the final arrangement matches the reviewed system.
Common questions
Does a stronger member fix an incomplete load path?
No. A missing or unsuitable connection remains an unresolved interface. The assembly must be reviewed as a connected system.
Is a load-path sketch a structural design?
No. It is a coordination aid that makes the intended interfaces visible. Member capacities, load combinations, and connection design remain part of the project's engineering work.
