Coordinating Sprinkler Supports with CFS Framing
Coordinate sprinkler pipe routes and support attachments with CFS framing, ceiling details, rated interfaces, and responsible designers.
The condition to resolve

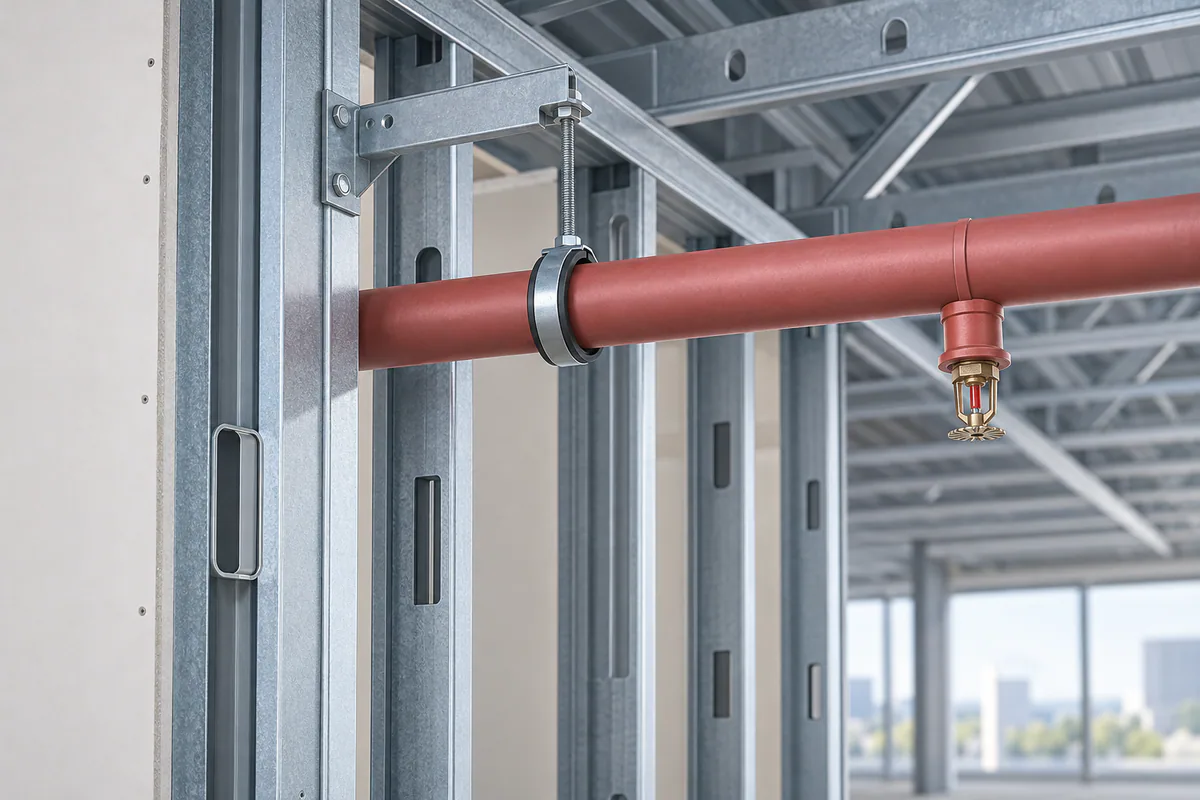

A sprinkler pipe can fit a cavity while its hanger or other required restraint has no reviewed attachment location. Ceiling framing, nonbearing studs, and structural joists have different assigned roles. The support designer and framing designer need to agree on actual attachment information instead of relying on available steel at the nearest location.
Coordinate before releasing the work
Obtain support locations and relevant load information from the sprinkler package. Overlay these with identified CFS members and ceiling or wall details. Coordinate any penetration of rated construction through the separate accepted protection detail. Resolve changes to routes and supports together so a shifted pipe does not leave an obsolete structural attachment assumption.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Identify the CFS member receiving each reviewed support attachment.
- Coordinate sprinkler route changes with support-location changes.
- Review rated penetrations and ceiling access separately.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Pipe route | Sprinkler coordination layout | Clear service envelope |
| Support | Attachment and load information | Accepted CFS receiving member |
| Penetration | Reviewed protection detail | Preserved wall or floor rating |
Verification and handoff to the next trade
At the support handoff, verify actual hanger attachment locations against the reviewed sprinkler and CFS documents. Record any field relocation before the ceiling closes, including affected member marks and supporting details. Check that access for system inspection is preserved and that installation has not interrupted wall movement or required floor restraint. Future pipe changes should be reviewed against these actual support records rather than assuming every exposed CFS member is suitable for another attachment.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can sprinkler piping hang from any available CFS stud?
No. Provide the proposed support and load information to the assigned reviewers. Member appearance or convenience does not establish an acceptable attachment.
Does a framing review approve the sprinkler design?
It addresses the stated framing interface. The sprinkler package and applicable protection requirements remain with their assigned designers and approval process.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
