Creating a Backing and Equipment Load Register for CFS Walls

The condition to resolve

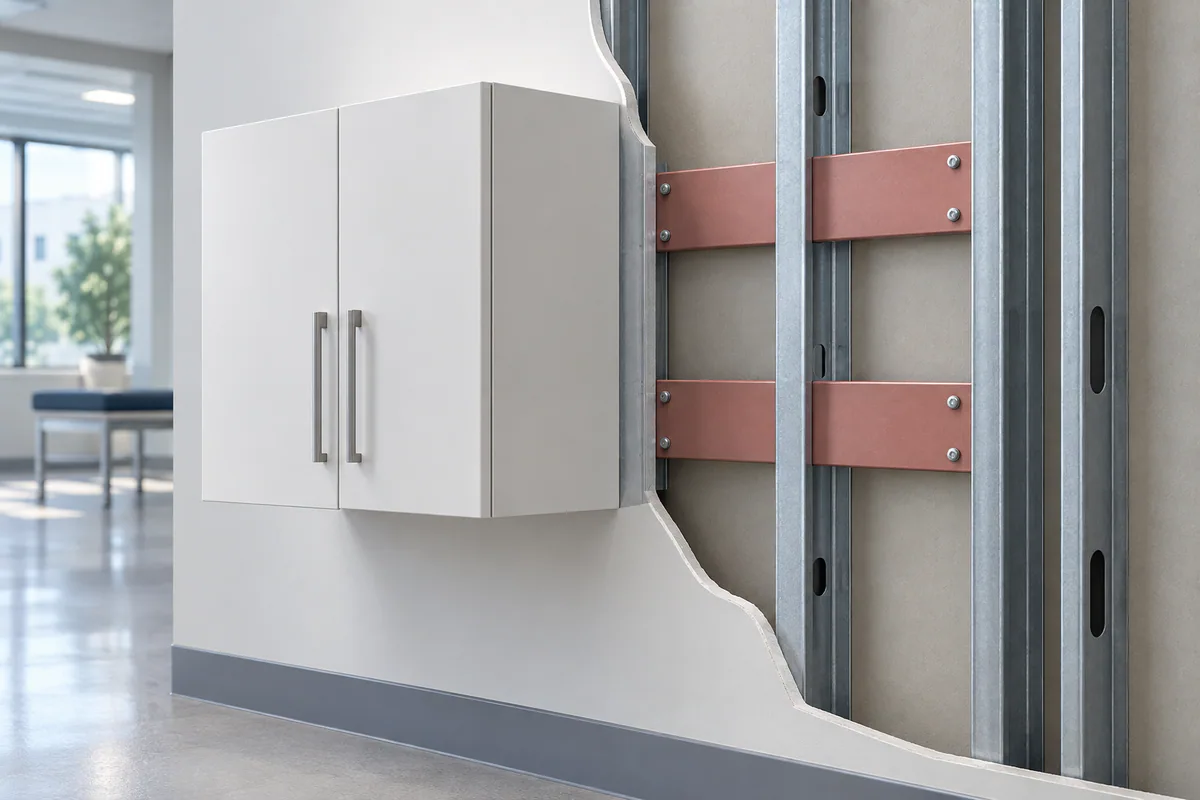

Generic backing notes can hide substantial differences between a shelf, cabinet, wall-mounted device, and heavy equipment. The item supplier's attachments and use conditions need to reach the framing reviewer before the wall closes. A standard backing strip shown for finishes is not automatically designed for every future mounted item.

Coordinate before releasing the work

Build a location-based list using actual equipment and fixture submittals. Record attachment zones and relevant load information, then coordinate with structural members, services, and rated assemblies. Assign who designs and installs each backing condition. Update the register when an owner-selected item changes rather than relying on the original room description.

How it fits the building system

Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.

Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.

References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection

Practical location-based review

Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.

• Collect actual item loads and attachment geometry by location.
• Separate finish backing from reviewed equipment-support conditions.
• Update backing records after owner or equipment substitutions.

Documents and decisions that must agree

Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.

Verification and handoff to the next trade

Before concealment, verify each backing mark against the accepted item and attachment arrangement. Record locations relative to durable room references so the final installer can find the backing without guessing behind finishes. Identify substituted or deferred items separately; an unknown future fixture should not be described as approved. Preserve the register with the installed item information so replacement equipment can be evaluated against the backing actually present in the wall.

Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.

• Steel Framing Punchouts and Service Holes: Coordinate Before Cutting →
• Steel Framing Rough Openings: Coordinate Headers, Jambs, and Sills →
• Cold-Formed Steel Connection Inspection Planning →

Common questions

Prepare a supply inquiry

• Record the project drawing or detail and the specified product, profile, or system.
• List the complete configuration, physical units, quantities, and cuts per piece.
• Request current manufacturer documents; confirm compatibility, price, and availability before ordering.
• Obtain the responsible professional's review for loads, code requirements, or installation.
