Planning Plumbing Chases in CFS Walls
Coordinate pipe size, slope, fittings, access, framing role, and rated-wall requirements before laying out a plumbing chase in CFS construction.
The condition to resolve

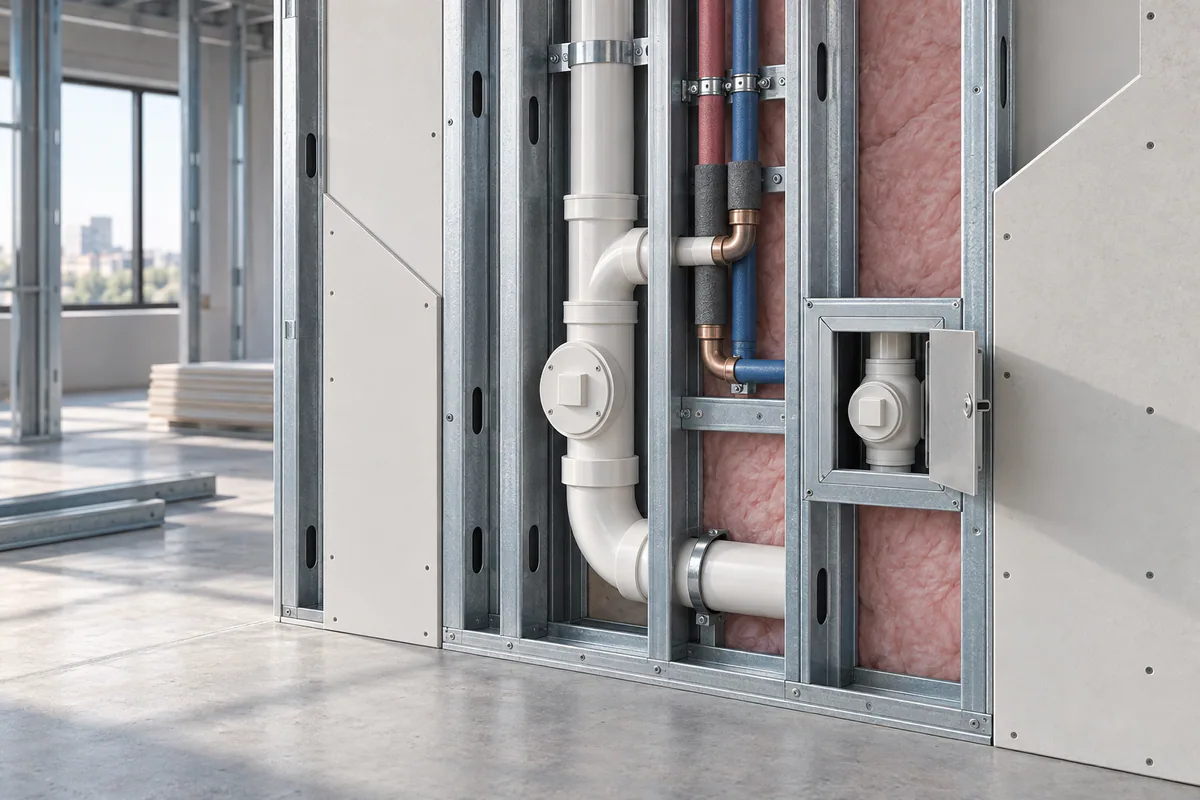

A pipe drawn as a single line can require much more space at fittings, insulation, supports, and cleanouts. A narrow chase may place these elements inside a bearing stud or rated boundary. Review the real plumbing package and access requirements before framing layout rather than enlarging the cavity through field cuts.
Coordinate before releasing the work
Ask the plumbing contractor for outside dimensions, slopes, service access, and support locations. Compare them with wall function and opening details. Identify which pipes run within a cavity and which cross framing. Coordinate the chase construction and rated interfaces with the applicable designers, then release a section the installer can use.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Use fitting and insulation envelopes, not nominal pipe diameter.
- Coordinate cleanout and valve access with finished wall geometry.
- Separate within-cavity routes from crossings requiring structural review.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Pipe geometry | Fitting and insulation section | Usable chase envelope |
| Access | Cleanout and valve layout | Finished service opening |
| Wall interface | Framing and rating details | Accepted chase construction |
Verification and handoff to the next trade
Before wall closure, verify fitting and cleanout access against the accepted chase section, including the planned finish thickness. Record any rerouted pipe or relocated support with its framing location. Check that the final route has not displaced backing, connections, or rated boundaries included in the review. Give maintenance staff the accessible service points and actual route, while keeping required inspection records tied to the same chase identification rather than a generic floor note.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a plumbing chase occupy a bearing wall cavity?
That requires coordinated review of framing, route, and assembly requirements. Available cavity space does not authorize member cuts, moved connections, or an altered rated detail.
Does the pipe diameter establish the chase width?
No. Include fittings, insulation, supports, installation space, and service access. Use the actual plumbing package and coordinated section.
