Coordinating Duct Crossings Through CFS Walls
Review duct openings through CFS walls with insulation, framing, damper access, support loads, and rated-assembly requirements.
The condition to resolve

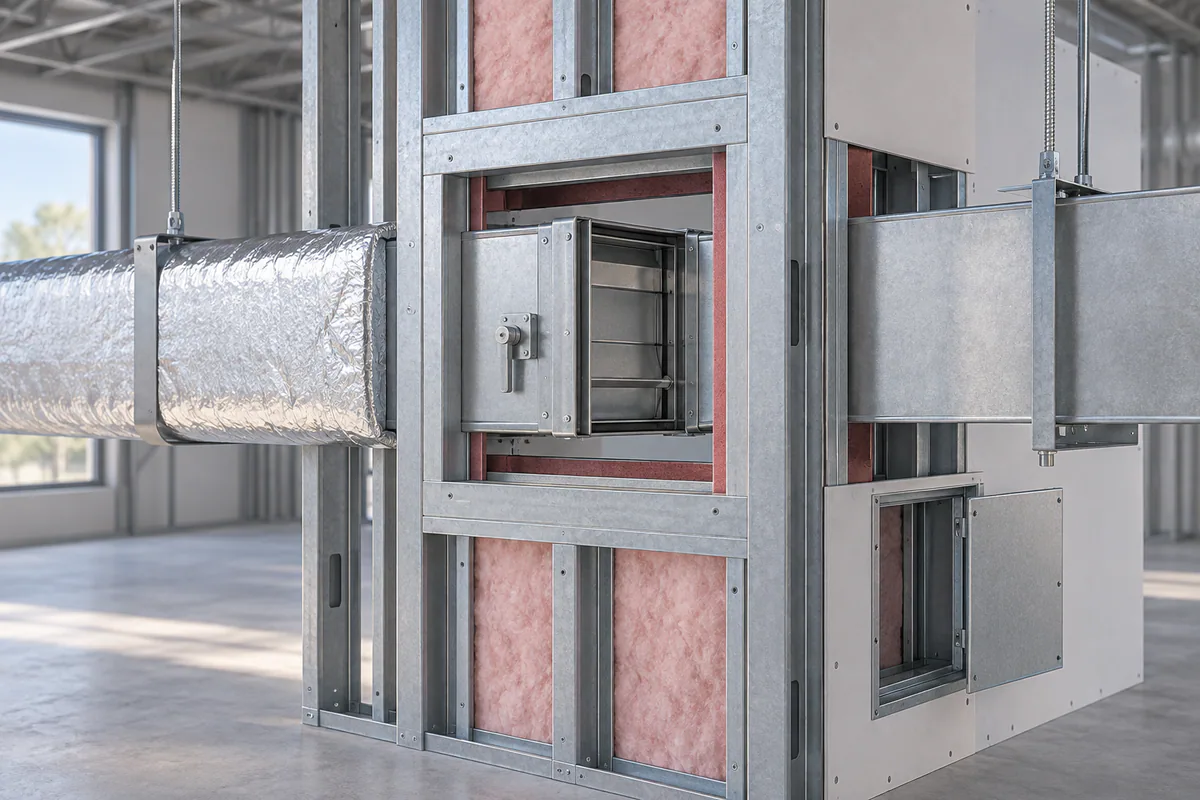

A duct crossing can require a framed opening larger than the nominal duct, especially where insulation, dampers, or access are involved. A mechanical layout may show a route without identifying the wall's bearing or rated role. Compare the crossing with the structural and life-safety documents before approving the opening geometry.
Coordinate before releasing the work
Locate the crossing by grid and elevation, then include insulation and required access in the section. Coordinate duct support separately from the opening framing. Ask the relevant assembly reviewer for the accepted penetration and damper arrangement where applicable. Resolve any interference with headers, boundary members, or movement joints before releasing framing and mechanical work.
How it fits the building system
Service coordination needs more than a centerline on a framing plan. Pipes, ducts, supports, insulation, access panels, and fire protection occupy physical space. Show that space against actual framing and identify where movement or rated construction imposes additional conditions. Factory openings in one product are not general permission to cut another product or enlarge an opening.
Use separate approval tracks for structural framing and fire-resistance systems. A structurally acceptable service route can still conflict with the listed wall or floor assembly; a firestop product cannot correct an unreviewed structural cut. Coordinate the framing designer, relevant trade, assembly documentation, and inspection sequence before closing the cavity. Record the selected detail and any accepted variation so later crews know what condition they must preserve.
References: Structural studs: product data and design resources · TradeReady steel joists: system data and application limits · BlazeFrame firestop products and listed joint systems · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Show insulated duct and access space at the actual crossing elevation.
- Coordinate duct supports separately from the opening assembly.
- Review dampers and rated interfaces with the assigned specialist.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Crossing geometry | Insulated duct section | Framed opening envelope |
| Support | Mechanical attachment layout | Reviewed load interface |
| Rated interface | Accepted system documentation | Protection and access arrangement |
Verification and handoff to the next trade
At rough-in review, identify the installed duct size, insulation, and access arrangement alongside the accepted opening detail. Record changed elevations that bring the route closer to a header or movement interface. Verify that duct supports and access framing do not introduce unreviewed attachments to the wall. The closeout should identify the actual penetration system and service-access location so future damper maintenance or duct replacement preserves the approved framing and rated construction.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can an opening be sized from duct dimensions alone?
Include insulation, applicable protection, installation access, and the framing detail. Nominal duct dimensions may not establish the complete crossing envelope.
Can a duct share the wall's movement gap?
Submit that interface for review. Services can restrain movement or conflict with a rated joint; geometric clearance alone does not resolve either issue.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Structural studs: product data and design resources ClarkDietrich
- TradeReady steel joists: system data and application limits ClarkDietrich
- BlazeFrame firestop products and listed joint systems ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
