Sculptured Southern Std. Gutter Expansion Cap - Double-Lok, Ultra-Dek
0 ratings0 recorded purchasers
Sculptured Southern Std. Gutter Expansion Cap - Double-Lok, Ultra-Dek. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.
Reference part: 6000-0950574

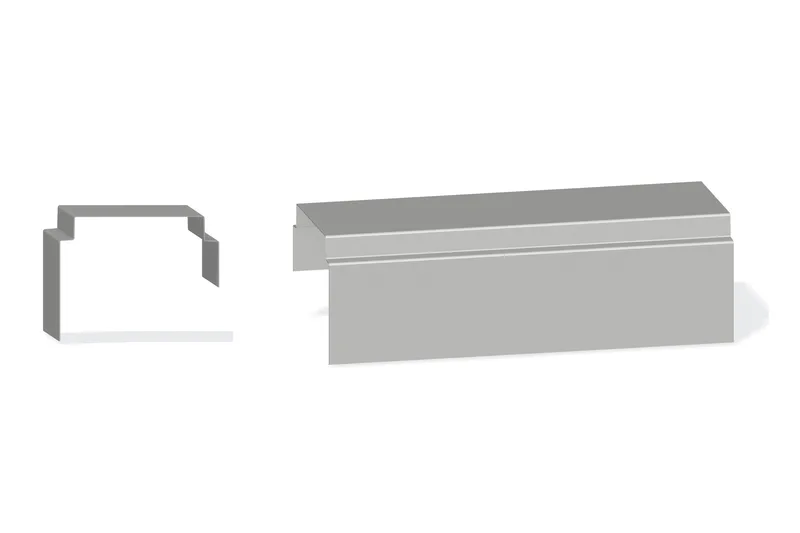

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-8-1/2"
- Published gauges
- 24; 26
- Published girth
- 7.4375; 7.75; 8.0625; 8.3125; 8.6875; 8.875; 9.3125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7034A | 0'-8-1/2" | 7.4375 | 24 | 0.4287 |
| F-7034A | 0'-8-1/2" | 7.4375 | 26 | 0.3416 |
| F-7034B | 0'-8-1/2" | 7.75 | 24 | 0.4467 |
| F-7034B | 0'-8-1/2" | 7.75 | 26 | 0.356 |
| F-7034C | 0'-8-1/2" | 8.0625 | 24 | 0.4647 |
| F-7034C | 0'-8-1/2" | 8.0625 | 26 | 0.3703 |
| F-7034D | 0'-8-1/2" | 8.3125 | 24 | 0.4791 |
| F-7034D | 0'-8-1/2" | 8.3125 | 26 | 0.3818 |
| F-7034E | 0'-8-1/2" | 8.6875 | 24 | 0.5007 |
| F-7034E | 0'-8-1/2" | 8.6875 | 26 | 0.399 |
| F-7034F | 0'-8-1/2" | 8.875 | 24 | 0.5115 |
| F-7034F | 0'-8-1/2" | 8.875 | 26 | 0.4076 |
| F-7034G | 0'-8-1/2" | 9.3125 | 24 | 0.5367 |
| F-7034G | 0'-8-1/2" | 9.3125 | 26 | 0.4277 |
Product resources
Request current drawings and installation instructions for your selected product.

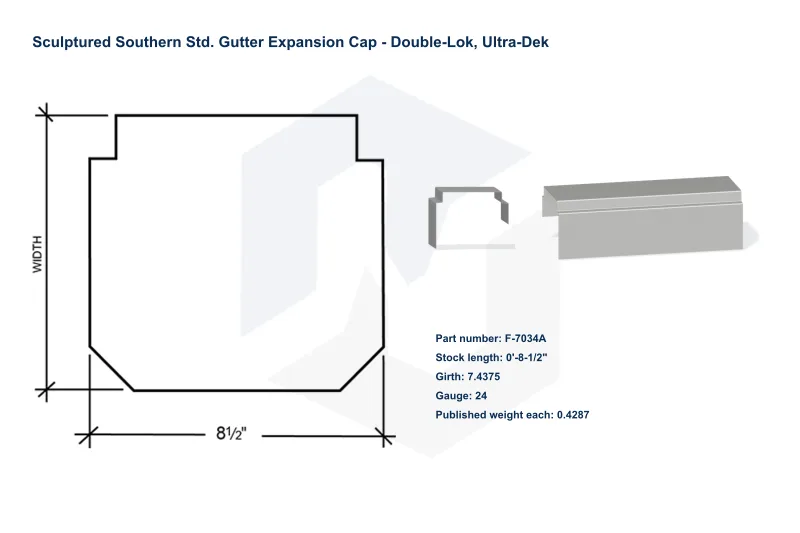

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
