3-1/2" x 4" Box Downspout - Canopy Return
3-1/2" x 4" Box Downspout - Canopy Return. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.
Reference part: 69.24.001.F1810

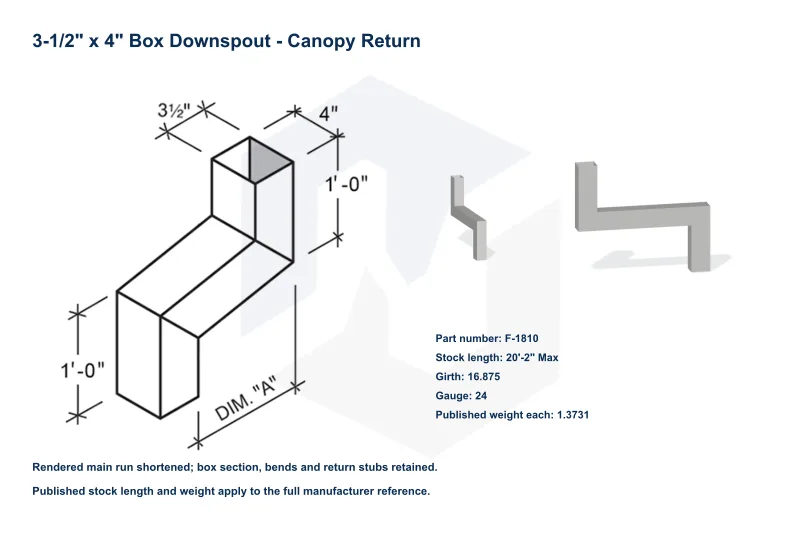

1 / 3 · 3-1/2" x 4" Box Downspout - Canopy Return. The rendered main run is shortened for visibility; the box section, bends and return stubs retain their reference geometry. Published stock lengths and weights refer to the full manufacturer reference.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 20'-2" Max
- Published gauges
- 24; 26
- Published girth
- 16.875
- Published weight per piece
- 1.3731; 1.0943
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-1810 | 20'-2" Max | 16.875 | 24 | 1.3731 |
| F-1810 | 20'-2" Max | 16.875 | 26 | 1.0943 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
