Thermal Movement in Metal Roof and Wall Panels
Understand how temperature changes affect metal panels and what to coordinate about clips, fixed points, penetrations, trim, and future roof attachments.
Why movement belongs in the roof discussion
Metal changes dimension as its temperature changes. In a panel assembly, the important question is how the selected system accommodates that change while staying attached and maintaining its enclosure functions. Panel length, material, temperature conditions, and restraint all matter to the review.
MBCI describes standing seam systems with clips that allow movement and explains that clip selection depends on the panel, insulation, substrate, and anticipated movement. A general clip label does not tell the whole story. The approved roof documents should identify the exact components and their intended arrangement.
References: Standing seam roof systems · Standing seam roof clip selection

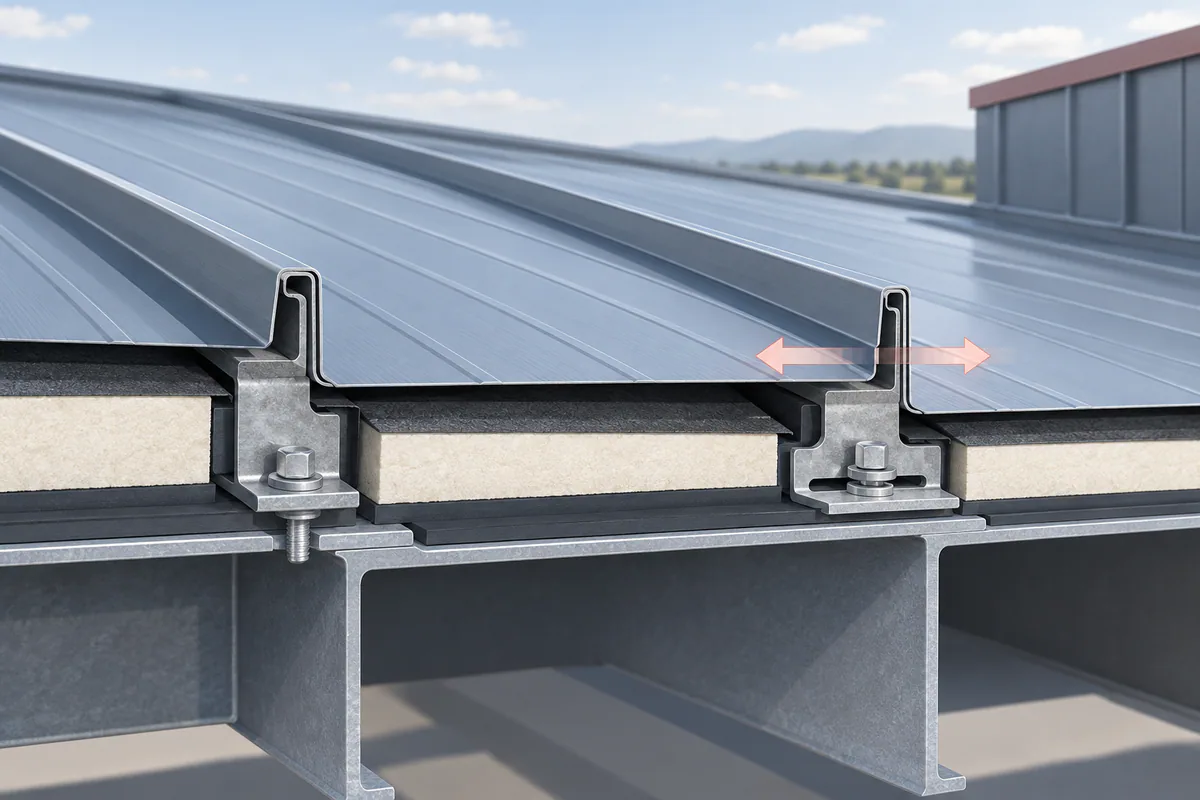

Understand fixed and moving parts conceptually
A moving assembly still needs controlled attachment. Some locations establish a reference or restraint while others accommodate movement. The manufacturer's detail determines how those roles are achieved; the word floating does not mean the roof is unattached.
For a drawing review, ask the system designer to mark the intended movement direction and relevant reference locations. This makes it easier for other trades to understand why an additional attachment can require review. Do not decide clip travel, fixed-point placement, or clearance from a generic diagram.
Collect the information used in the review
A useful movement review begins with complete project inputs. The following checklist is for coordination; it does not provide a movement calculation or installation dimensions.
| Input | Why to provide it | Where it appears |
|---|---|---|
| Panel product and material | Identifies the applicable system details | Approved submittal |
| Panel run and geometry | Defines the configuration being evaluated | Roof or wall layout |
| Support and insulation | Affects attachment selection | Building section and clip schedule |
| Temperature assumptions | Informs the design movement review | Design criteria |
| Curbs and other interfaces | Identifies independently supported construction | Penetration and transition register |
Review accessories as part of the system
A roof can have correctly specified panel clips while a later accessory creates a new restraint. Show proposed equipment, piping, signage, and other attachments to the roof-system reviewer before purchasing the attachment hardware.
For example, a maintenance team might propose a bracket that appears convenient because it can connect both a panel and nearby fixed framing. The useful question is whether that bracket changes the intended movement. The responsible parties need the exact location and detail to answer it. Do not assume that avoiding a visible leak at installation proves the attachment will perform through temperature cycles.
Coordinate panel ends and changes in direction
Edges, wall junctions, and changes in roof geometry deserve their own review. Mark them on the same drawing used for the main panel layout so the manufacturer can see how the repeated assembly meets each boundary.
Keep trim and penetration details linked to their roof area rather than issuing an unrelated standard-detail sheet without location references. When an accepted change is made to panel length, support type, or insulation, ask whether the movement review also needs updating. A revised panel order should not quietly retain an attachment assumption from an earlier assembly.
Document the intent for future work
The owner handover should include the panel and clip designations, accepted details, and the process for reviewing roof modifications. Keep the movement strategy understandable enough that a future contractor knows when to seek system-specific direction.
If there are unusual noises, distorted details, or damaged connections, document the location and conditions and have them evaluated. Do not loosen or add fasteners as a trial correction. The visible symptom may involve several causes, and an unreviewed adjustment can alter the original attachment or enclosure behavior.
Common questions
Are floating clips interchangeable between panel brands?
No. Use the exact clips accepted for the panel system and project configuration. Similar appearance does not establish fit or performance.
Does every metal roof use the same movement allowance?
No. The system, panel run, temperature assumptions, supports, and restraints determine the required review and details.
