Edgecraft Southern Std. Eave Gutter Expansion Cap - Double-Lok, Ultra-Dek
0 ratings0 recorded purchasers
Edgecraft Southern Std. Eave Gutter Expansion Cap - Double-Lok, Ultra-Dek. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0723506

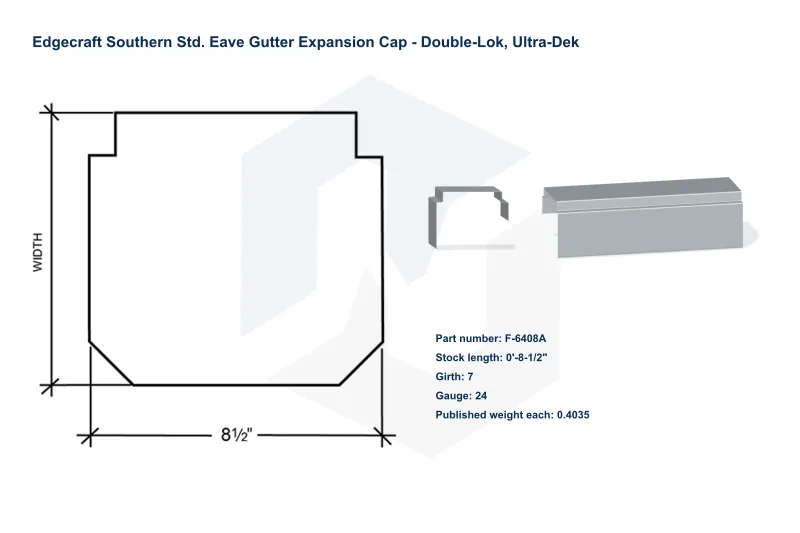

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-8-1/2"
- Published gauges
- 24; 26
- Published girth
- 7; 7.1875; 7.625; 7.875; 8.25; 8.5; 8.8125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6408A | 0'-8-1/2" | 7 | 24 | 0.4035 |
| F-6408A | 0'-8-1/2" | 7 | 26 | 0.3215 |
| F-6408B | 0'-8-1/2" | 7.1875 | 24 | 0.4143 |
| F-6408B | 0'-8-1/2" | 7.1875 | 26 | 0.3301 |
| F-6408C | 0'-8-1/2" | 7.625 | 24 | 0.4395 |
| F-6408C | 0'-8-1/2" | 7.625 | 26 | 0.3502 |
| F-6408D | 0'-8-1/2" | 7.875 | 24 | 0.4539 |
| F-6408D | 0'-8-1/2" | 7.875 | 26 | 0.3617 |
| F-6408E | 0'-8-1/2" | 8.25 | 24 | 0.4755 |
| F-6408E | 0'-8-1/2" | 8.25 | 26 | 0.3789 |
| F-6408F | 0'-8-1/2" | 8.5 | 24 | 0.4899 |
| F-6408F | 0'-8-1/2" | 8.5 | 26 | 0.3904 |
| F-6408G | 0'-8-1/2" | 8.8125 | 24 | 0.5079 |
| F-6408G | 0'-8-1/2" | 8.8125 | 26 | 0.4048 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
