Steel framing
Deflection Track vs. Standard Track: Preserve Wall Movement
Understand how deflection track differs from ordinary runners, and coordinate the head connection, finishes, services, and inspection before closing walls.
Define what is allowed to move
A deflection head allows the supporting structure and wall framing to move relative to one another in the manner established by the design. Ordinary track describes a runner profile; it does not by itself create that movement capability. The connection arrangement determines what is fixed and what can move.
ClarkDietrich's deep-leg system is one example of a head-of-wall assembly developed to accommodate structural deflection. Its literature also identifies limits on where that particular system may be used. Select the complete detail for the wall condition, not a track by leg depth alone.
References: Deep Leg Deflection Track System

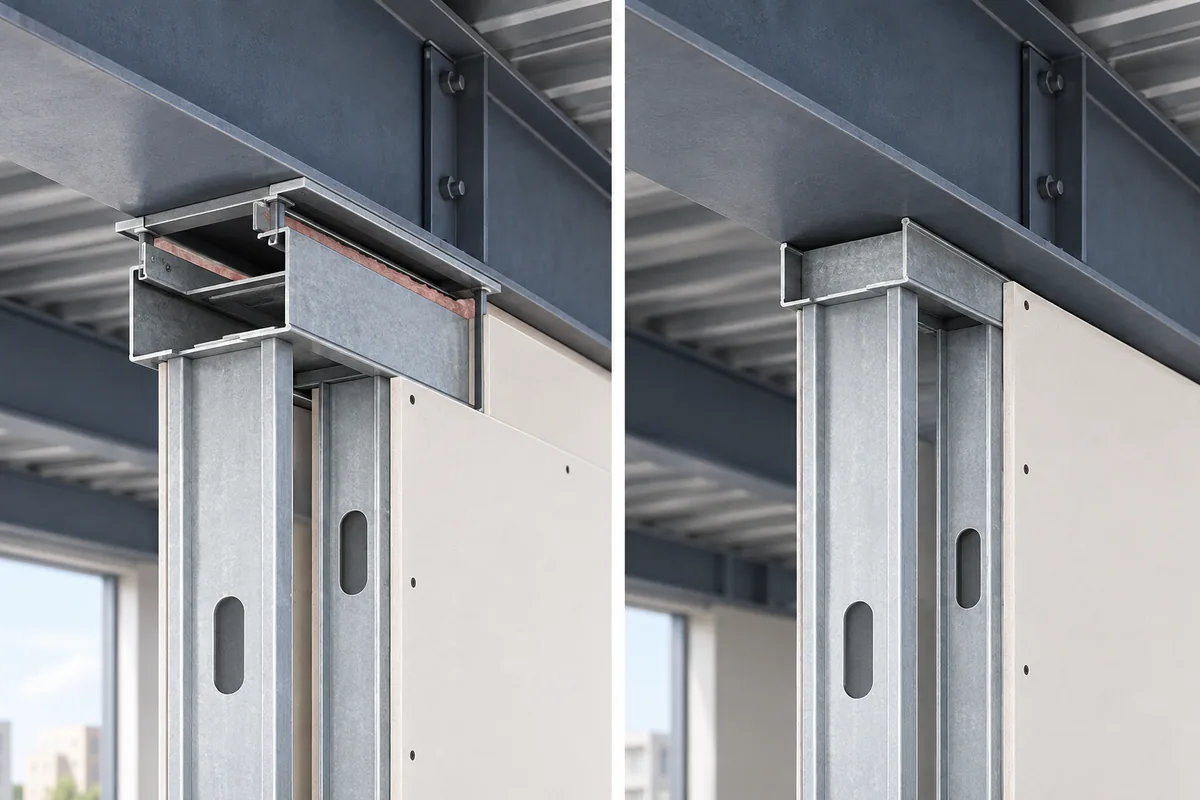

Compare the head conditions
Start with a clear head-condition schedule for the project. Different wall areas may require different arrangements even if their stud descriptions match. The table below is a coordination aid, not an installation detail.
| Check | Ordinary fixed detail | Designed movement detail |
|---|---|---|
| Intended behavior | As defined by the fixed connection | Specified relative movement |
| Stud length | Match the approved end condition | Account for the designed movement arrangement |
| Attachments | Use the stated fixed connections | Avoid attachments that obstruct the moving interface |
| Finishes and services | Coordinate normal wall interfaces | Maintain compatible movement at each interface |
Recognize that movement systems differ
Deep-leg track, slotted systems, nested tracks, and deflection clips should not be treated as interchangeable versions of one detail. A manufacturer may provide different restraint and attachment requirements for each. ClarkDietrich's Fast Top Clip, for example, provides a product-specific alternative for certain non-load-bearing head conditions.
When comparing an alternate system, request the complete assembly information. Highlight changes to studs, track, clips, fasteners, finish termination, and required access. The review should establish how the alternate delivers the required behavior in the actual wall.
References: Fast Top Clip: movement at the head of a wall
Coordinate the elements that cross the joint
A correctly selected framing component can still be obstructed by another part of the wall. Review board attachment, trim, sealants, insulation, service supports, and adjacent construction around the movement zone. For rated assemblies, use the applicable tested or listed joint details and project requirements.
Consider a partition with a coordinated head detail that later receives a cabinet or service support near its top. Ask whether the new attachment crosses the intended moving interface. Put the answer in the updated detail so the framing and finishing crews work from the same instruction.
Use a pre-close inspection checklist
Inspect the interface while all relevant components remain visible. Record the wall mark and head-detail reference with the inspection notes. If something differs from the approved detail, identify the location and component rather than trying to judge the movement capacity by appearance.
- Confirm the selected system and current installation document.
- Match the stud, track, clips, and required accessories.
- Check the specified movement arrangement against the field condition.
- Look for attachments or finish details that bridge the moving parts.
- Coordinate fire, acoustic, and service interfaces where applicable.
- Close open questions before the head is concealed.
Keep the order connected to the head schedule
List movement-system components separately from ordinary runners so they cannot be substituted during purchasing or site distribution. Include manufacturer identifiers when the reviewed system depends on proprietary parts. Retain the head detail with the package used by the installer.
If the overhead condition differs from the drawing, obtain the resolved detail before cutting an entire wall's studs. One confirmed field measurement and a documented decision can prevent an uncertain assumption from being repeated across every member.
Common questions
Is long-leg track always deflection track?
No. Leg length alone does not establish a working movement connection. Follow the complete reviewed head detail, including restraint and attachment requirements.
Can finish screws prevent a movement joint from working?
An attachment crossing the intended moving interface can conflict with the detail. Coordinate finish fastening and joint treatment with the selected system rather than improvising at concealment.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Deep Leg Deflection Track System ClarkDietrich
- Fast Top Clip: movement at the head of a wall ClarkDietrich
Prepared with AI assistance. Linked references require current project-specific review. How these guides are prepared.
Prepare a supply inquiry
- Record the project drawing or detail and the specified product, profile, or system.
- List the complete configuration, physical units, quantities, and cuts per piece.
- Request current manufacturer documents; confirm compatibility, price, and availability before ordering.
- Obtain the responsible professional's review for loads, code requirements, or installation.
