Vertical vs. Horizontal Metal Wall Panels
Compare vertical and horizontal steel wall panels, including joint layout, supports, openings, drainage details, and the information needed before ordering.
Confirm the panel allows the intended orientation

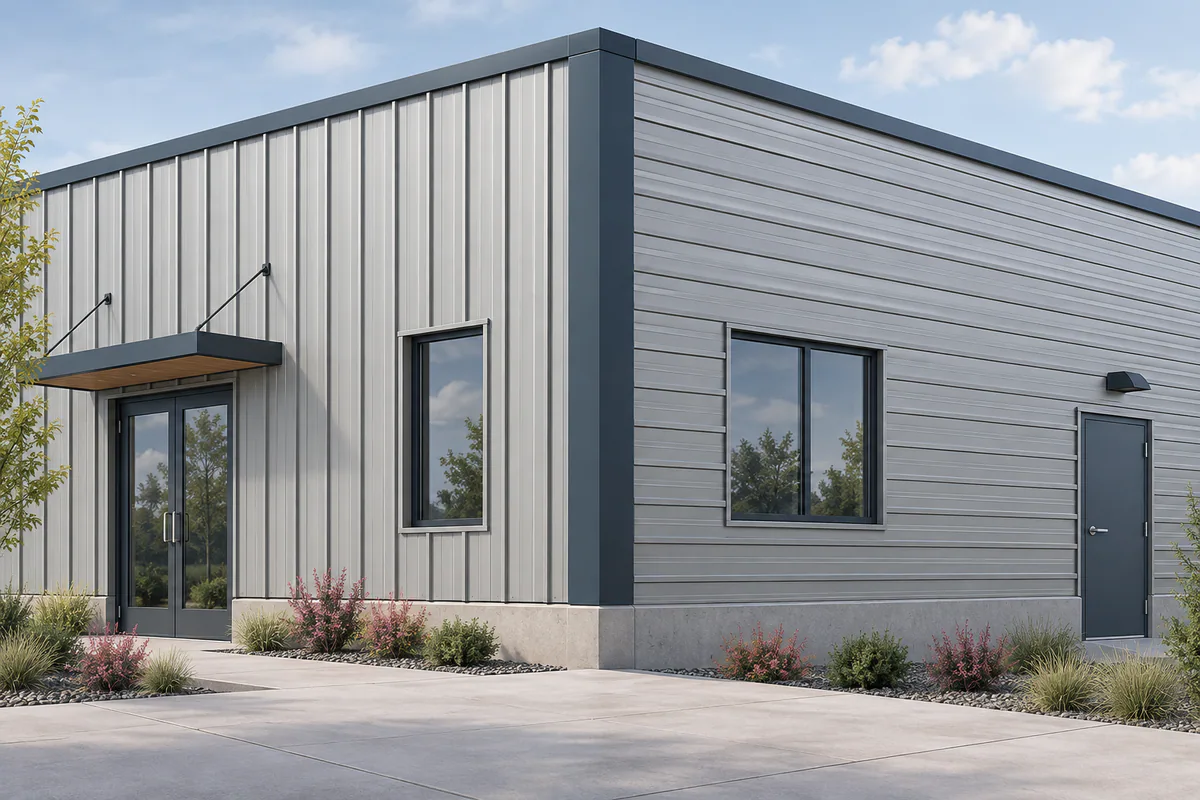

Vertical and horizontal describe the direction in which the panel's long dimension and ribs run across the wall. Some products allow either orientation. For example, MBCI identifies vertical and horizontal wall applications for PBD panels. That permission belongs to the named product and its details; it should not be transferred to every metal wall panel.
Begin with the architectural elevation, product data, and installation details together. The elevation expresses the desired appearance, while the technical documents explain how that appearance is assembled. If one document shows vertical ribs and another shows horizontal panels, resolve the conflict before requesting a final takeoff.
References: PBD panel applications · Industrial roof and wall panel data sheet (PDF)
Compare the coordination tasks
Changing orientation can rearrange the relationship between panels, supports, and openings. These are useful subjects for a drawing review rather than reasons to declare one direction universally better.
| Topic | Vertical layout | Horizontal layout |
|---|---|---|
| Visual rhythm | Review full-height lines and roof-edge cuts | Review course lines and their alignment |
| Supports | Confirm support intersections on the elevation | Confirm the required support arrangement |
| Openings | Coordinate panel modules beside jambs | Coordinate courses at heads and sills |
| Joints | Identify side joints and any end joints | Identify course joints and end-joint locations |
Draw openings early
Doors, windows, louvers, and service openings interrupt a repeated panel pattern. Put their actual rough-opening locations on the elevation before optimizing panel lengths. A layout that looks efficient on an uninterrupted rectangle can produce awkward cuts or unplanned joint locations once openings are added.
For a small office facade, imagine the owner wants a horizontal course line to meet the window heads. Record that intent and ask the design team to reconcile it with the window, flashing, and panel details. Do not let the aesthetic line become an improvised field modification to the window's water-management assembly.
Follow the wall's water-management strategy
The exterior metal face is only part of the wall assembly. A project may include separate drainage, air-control, insulation, and interior-finish layers. Ask the designer to identify where water is intended to go at joints, openings, the wall base, and transitions to other materials.
A trim piece that fits over a cut edge does not, by itself, prove that a wall detail works in a different orientation. Compare the exact horizontal or vertical detail supplied for the selected system. Mark any missing corner, sill, or head condition as an open coordination item, with responsibility assigned for its resolution.
Turn the elevation into a clear order
Divide the wall into identifiable areas and give each panel group a drawing reference. State the profile, orientation, finish face, length, and quantity. Where the manufacturer's terminology includes reverse rolling or other face options, carry that designation into the order only after it has been confirmed for the specified product.
Keep opening trim and corner trim separate from the main panel count. A receiving checklist should allow the crew to distinguish material for the east office wall from material for the warehouse wall without guessing from length alone. Labels and piece marks are especially helpful where both orientations appear on one building.
References: Industrial roof and wall panel data sheet (PDF)
Check a sample area before releasing every elevation
For a facade with strong visual requirements, ask the project team whether a sample assembly or approved mockup is appropriate. Use it to review course alignment, exposed attachment appearance, trim proportions, and finish consistency under the agreed viewing conditions.
Record decisions in the drawing set rather than relying on a photograph of the sample alone. A useful release checklist confirms product orientation, support details, opening details, panel layout, finish sample, and quantities. It also states who must approve later changes so the visual and technical reviews stay connected.
Common questions
Can any vertical metal wall panel be installed horizontally?
No. Confirm the specific product's permitted orientation and use its corresponding support, joint, and flashing details.
Does horizontal orientation eliminate vertical joints?
Not necessarily. Panel lengths, building geometry, openings, and the approved layout determine whether end joints are needed.
