Roofing & enclosure
Insulated Metal Panels vs. Single Skin Panels
Compare insulated metal panels with single skin steel cladding by assembly scope, insulation, joints, openings, finishes, and the documents needed to order.
Understand what each product includes

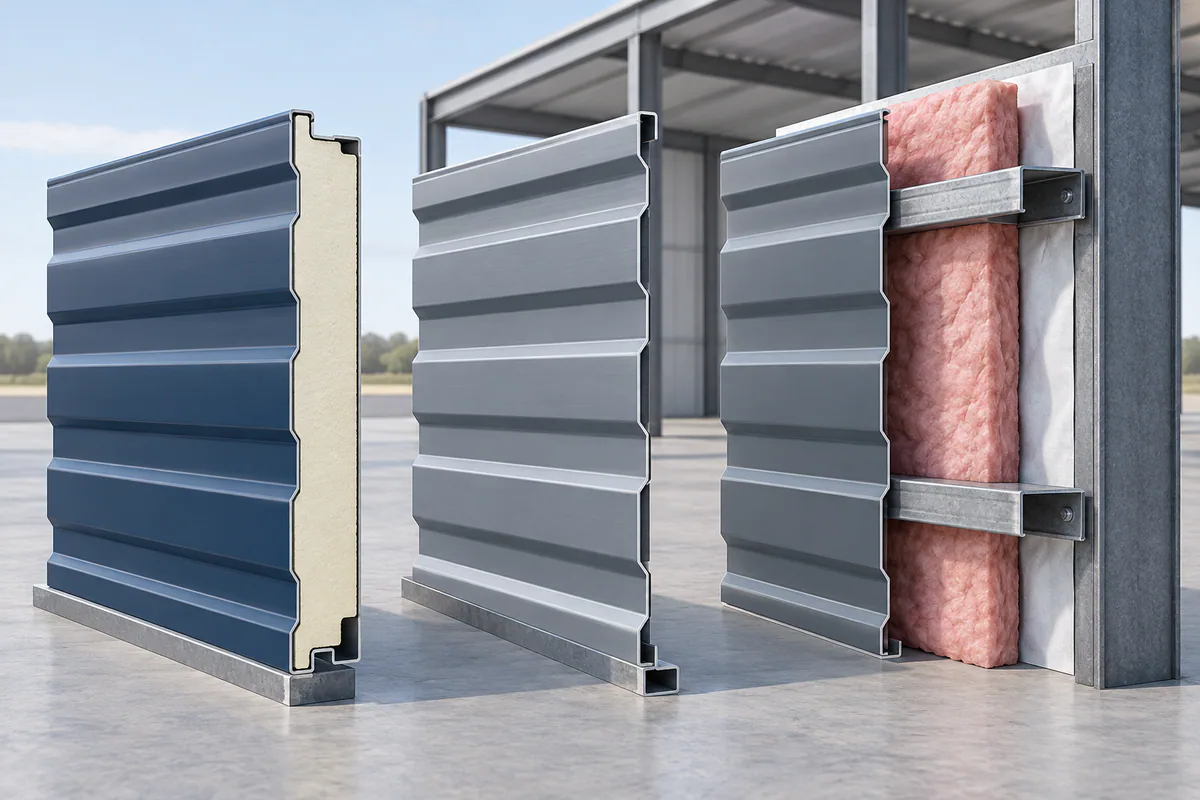

An insulated metal panel, or IMP, combines metal faces with an insulating core. A single skin panel is a formed metal cladding sheet; the insulation and other enclosure layers are addressed separately in the project assembly. MCA describes both product families and their roof or wall applications.
That difference changes how a comparison should be organized. If one proposal includes an interior metal face and insulation within the panel while another includes only exterior cladding, their unit prices describe different scopes. Establish the intended finished assembly before deciding which proposal appears more economical.
References: Insulated metal panel wall systems · Single skin metal wall panels
Compare assembly responsibilities
Use a scope matrix to identify what is included, what is supplied separately, and who coordinates the interfaces. A blank cell is a question to resolve, not an assumed inclusion.
| Item | Insulated metal panel approach | Single skin approach |
|---|---|---|
| Insulation | Core forms part of the panel | Identify the separate insulation system |
| Interior appearance | Review the panel's interior face | Identify liner or interior finish scope |
| Joints | Review the selected panel joinery | Review cladding joints and underlying layers |
| Openings | Coordinate trim and exposed core treatment | Coordinate cladding, insulation, and wall layers |
| Performance documents | Request the exact panel assembly data | Request data for the complete assembled wall |
Ask about use before choosing thickness
A warehouse, a conditioned office, and a temperature-controlled room can place different demands on an enclosure. State the intended use, indoor conditions, washdown or process exposure where relevant, and appearance expectations before narrowing the product list.
For IMPs, identify the specific core, panel configuration, interior finish, and required assembly evidence. For single skin construction, identify the insulation, liner, air-control, and vapor-control approach. Do not treat either family name as proof of energy, fire, acoustic, or hygienic performance. Those questions belong to the actual specified system and project requirements.
Give joints and openings their own review
A panel's center can be straightforward while the edges require substantial coordination. Ask for typical joints, corners, bases, roof transitions, and the details around doors and service openings. Include every recurring opening type, not just the most visually prominent entrance.
Consider a wall with a future exhaust opening. The owner should disclose that intent early so the design team can review the future alteration. An apparently simple cut can affect more than the exterior sheet. Preserve the accepted opening detail and product identification so later work can be evaluated using the correct assembly information.
Build a fair procurement example
Suppose an owner compares an IMP wall quote with a single skin panel quote for an office addition. Create one requirement list covering exterior appearance, interior finish, insulation performance, openings, support interfaces, and applicable fire requirements. Ask both teams to price their complete response to that list.
Then compare exclusions, sequencing, handling needs, field labor scope, and documentation. A more integrated product can simplify some interfaces while still requiring careful perimeter details. A site-assembled wall offers separate component choices but needs clear responsibility for connecting them. The preferred approach depends on the project rather than a universal ranking.
Retain the approved assembly, not just the color
The turnover package should identify the panel manufacturer, product, material and core information where applicable, thickness, finish, approved details, and maintenance guidance. Keep records of any alternate products or field changes that were accepted.
For the purchase order, use the same designation as the approved submittal and identify the building area served by each item. Include accessory packages and special conditions. This gives the receiving team a defined checklist and gives the owner useful information when planning repairs or additions later.
Common questions
Does single skin metal cladding include insulation?
The sheet itself does not provide an integrated insulation core. A conditioned building needs a separately specified enclosure assembly appropriate to its requirements.
Are all insulated metal panels interchangeable?
No. Core, thickness, joinery, supports, finishes, intended use, and applicable performance evidence differ. Review the exact proposed system.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Insulated metal panel wall systems Metal Construction Association
- Single skin metal wall panels Metal Construction Association
