Designer™ Series - Fluted
Designer™ Series - Fluted. A concealed fastener metal wall panel for architectural cladding. The attachment is integrated into the panel system rather than displayed across the main face, helping define a continuous facade pattern. Choose color / finish, gauge, width, and texture for your project.
Designer_Series_-_Fluted

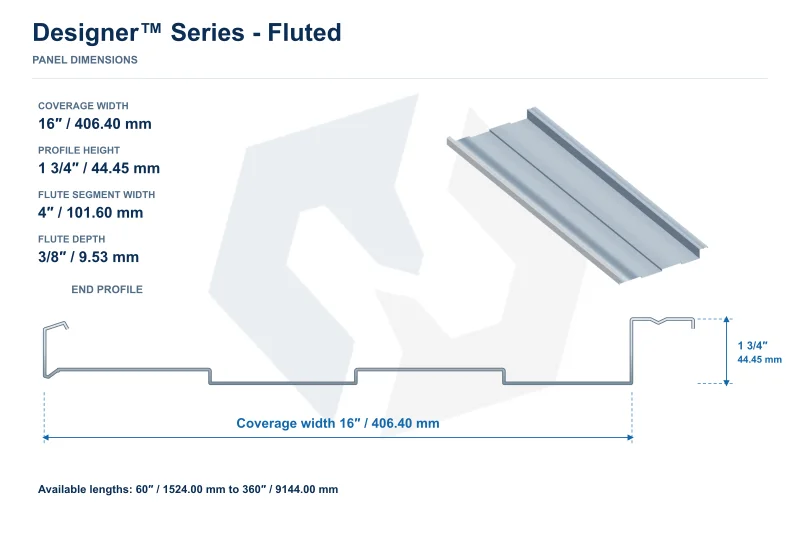

1 / 3 · Product illustration. Refer to the product options for finish and dimensions.
The 3D view illustrates the profile and finish. Confirm the final width, length, and color for your order.
OPTIONS
Configure this panel
Choose specifications for your project.
Color / finish
Galvalume® Plus36 of 36 colors. Scroll to see more.
- Gauge
- 22 GA
- Color
- Galvalume® Plus
- Width
- 16"
- Texture
- Smooth
- Part number
- 10.22.018.DEFLU16
Requested footage estimate at the linear-foot rate. Confirm cuts and the final total before ordering.
Product resources
Request current drawings and installation instructions for your selected product.
Technical documents
Confirm the current document revision and its application to your selected configuration.
- Designer Series®-Fluted Data Sheet Document revision: 0706209991130/RevD/MS/0325.
- CAD (PDF) Designer Series : Vertical : Panel Profiles
- CAD (PDF) Designer Series : Horizontal : Panel Profiles
