Metal Roof Panel Profiles: Ribs, Seams, and Coverage
Learn how metal roof panel profiles differ, what coverage width means, and which drawings help match panels, closures, trim, and supporting construction.
A profile is more than the visible pattern

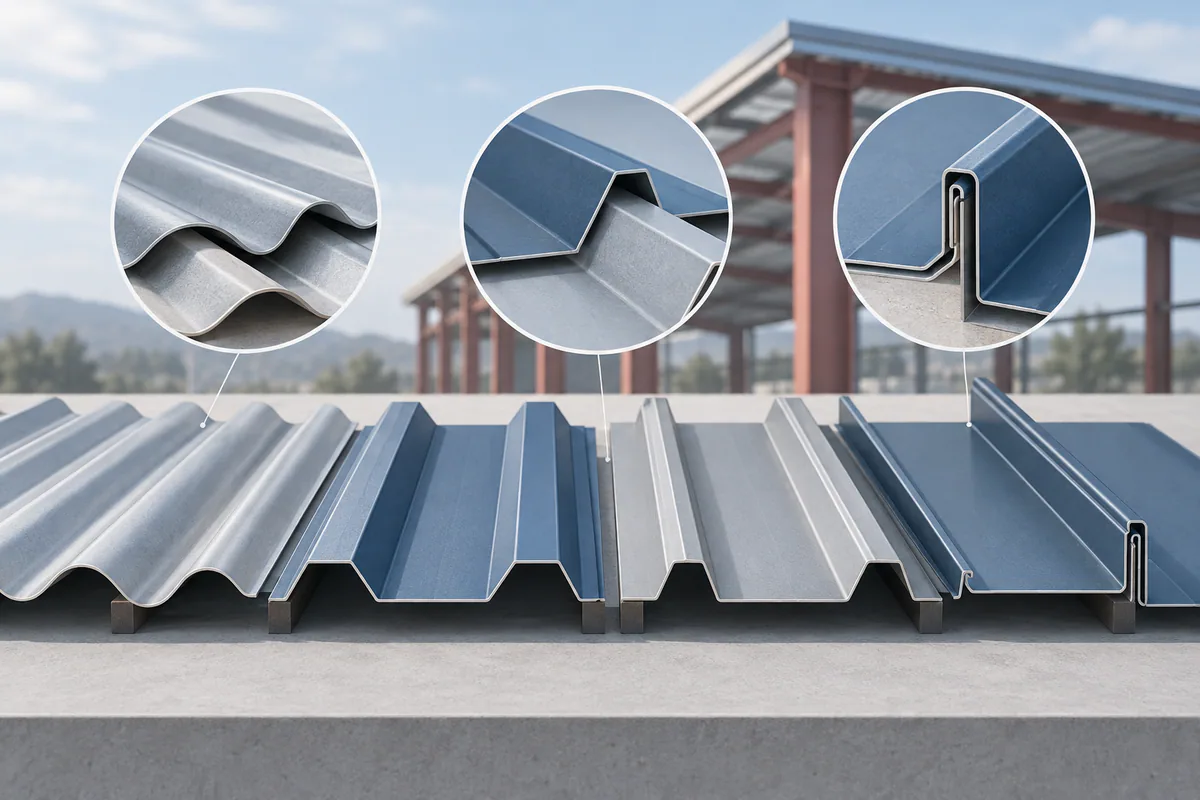

A metal panel profile is its formed cross-section: the ribs, pans, edges, and joining features that repeat along its length. Corrugated panels, trapezoidal rib panels, and standing seam panels look different because their cross-sections differ. MBCI's PBC and PBR pages show why a generic description such as corrugated metal is not enough to identify a replacement.
A photograph can help narrow the search, but the product designation and dimensioned drawing should settle it. Two panels may resemble each other from ground level yet have different edge geometry. That difference matters when matching an existing wall, ordering a closure, or reviewing the transition to new work.
References: PBC corrugated panel information · PBR panel specifications and technical documents
Read the profile drawing in a useful order
First find the product name and drawing revision. Then distinguish overall sheet width from installed coverage. Finally, look at the side edges and any directional features. This sequence prevents a quantity calculation from being built around the wrong dimension.
| Drawing item | What it tells you | Purchasing question |
|---|---|---|
| Coverage width | Area added by each installed panel module | Which width was used for the takeoff? |
| Rib pattern | Repeated geometry across the sheet | Which matching closure is specified? |
| Side joint | How adjacent panels engage | Is the replacement edge compatible? |
| Panel designation | The precise product being described | Does it match the approved submittal? |
Keep dimensions and performance separate
Rib height and panel width are useful identification details. They do not independently tell a purchaser how far a panel can span or what load it can resist. That review also depends on the specific product, material, attachment, supports, and design conditions.
When a proposal includes a different gauge or width, ask for the applicable assembly information instead of accepting a statement that it is equivalent because it looks similar. Keep the comparison focused on documented requirements. A change may also affect panel counts, cut pieces, accessory dimensions, and the appearance of the last bay.
Use a simple coverage example
Consider a wall elevation whose takeoff requires ten full panel modules plus a partial closing panel. The material list should show the selected profile, the coverage module used, and the closing condition. It should not silently substitute overall sheet width or assume that the final cut edge uses the same trim as the starting edge.
This example is about organizing quantities, not prescribing a layout. The approved panel layout controls the starting point, joint locations, and cuts. If the profile changes during purchasing, return to that layout before carrying the old quantities into the new order. Keep roof and wall applications separately identified.
Order the surrounding parts by profile
Make a small accessory matrix for every profile on the project. Give closures, trim, sealants, and fasteners their own rows, with the applicable detail beside each item. If a part serves several areas, state those areas explicitly so the receiving crew can check it against the delivery.
For replacement work, preserve any original product labels and record the installed orientation. Ask the manufacturer to identify uncertain material before ordering a large quantity. A sample can be helpful when obtained through an appropriate maintenance process, but it should not be removed from an active enclosure merely to complete a shopping list.
Finish with a profile identification sheet
A one-page identification sheet can travel with the estimate, submittal, and delivery check. Include the exact manufacturer and profile name, intended use, approved finish, material designation, coverage width, and linked drawing revision. Add a note for unresolved alternatives rather than merging them into the base order.
For visually important areas, attach an approved physical finish sample reference and an elevation showing joint intent. This makes the discussion easier for the owner and installer, while keeping appearance approval separate from the designer's technical review.
Common questions
Are R-panel and corrugated panel interchangeable names?
They are often used loosely in conversation, but they do not reliably identify the same profile. Use the manufacturer's exact designation and drawing.
Should I order panels using overall width?
Use the installed coverage and approved layout for the takeoff. Overall sheet width includes geometry that may overlap or engage with the adjacent panel.
