Metal Building Eave Struts: Slope, Orientation, and Ordering
Plan an eave strut order with roof slope, member orientation, end connections, and roof-to-wall details coordinated before fabrication.
Recognize the roof-to-wall interface

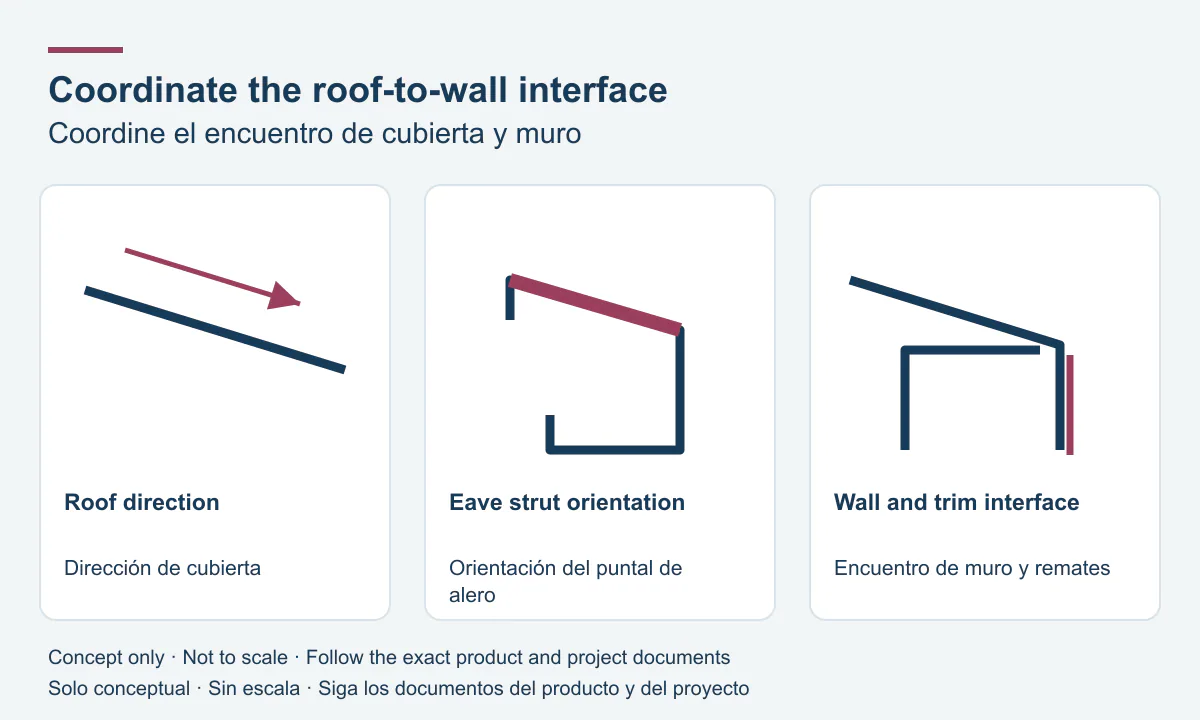

An eave strut belongs at a roof-to-wall framing interface. Start by locating its piece mark on the framing drawings and finding the matching roof-edge section. That section should explain how the roof and wall attachment planes meet. Keep its framing function distinct from the visible eave flashing or gutter. Those components may meet the same edge, but their names describe different scopes and should remain separate on the material list.
MBMA describes a metal building as coordinated components rather than a collection of independently chosen shapes. Apply that principle at the eave: ask for the accepted member and connection details before treating a catalog option as ready for construction.
References: QuickStart Guide: metal building components and system coordination
Confirm what nominal height means for the chosen slope
MBCI publishes eave strut profiles by nominal height and specifically notes that height is determined by roof slope. Include the actual project slope and a section drawing with the request. Do not assume one nominal designation defines every installed dimension or flange angle. Identify the roof-facing side, the wall-facing side, and the required flange arrangement using the manufacturer's terminology.
Check the supplier's offered configuration against that section before releasing the order. A verbal description such as standard eave member leaves too much unresolved when a building has different roof slopes, multiple eave conditions, or a later addition.
References: Eave struts: nominal heights and roof-slope qualification
Build a complete eave strut request
Use a separate schedule row wherever geometry, length, end condition, or finish changes. Link each row to its location so the fabricator and installer can distinguish similar pieces. Identify which dimensions are nominal and which are required finished dimensions. Ask the supplier to flag any field fabrication excluded from the offer.
| Input | Record with the request | Check before release |
|---|---|---|
| Roof-edge geometry | Slope, section, orientation, flange arrangement | Offered profile matches the coordinated edge |
| Member specification | Piece mark, section, thickness basis, finish | No unresolved material substitution |
| Fabrication | Finished length, end detail, hole or clip references | Supplier and field work scopes are assigned |
| Enclosure interface | Roof, wall, flashing, gutter, and closure references | Separate components and attachment requirements are identified |
Resolve the connections and enclosure together
The framing reviewer needs the member support and connection details. The enclosure team needs the roof and wall planes, closures, insulation transitions, flashing, and any gutter interface. Have those teams review the same roof-edge section. Do not add holes, weld attachments, or cut away a flange to make a conflicting enclosure detail fit without the required review.
Keep structural fasteners distinct from panel and trim fasteners in the takeoff. Their functions, receiving materials, and installation documents may differ. List the approved attachment references instead of assigning one generic screw throughout the eave. Obtain the applicable manufacturer details for the selected panel system as well as the framing drawings.
Review an eave change before ordering
Consider a building whose roof slope changes after the initial takeoff. Even if the quoted eave strut keeps the same nominal depth, its geometry and adjacent enclosure details need comparison with the revision. Identify affected piece marks, pause their fabrication release, and request the coordinated revised section. Include roof panels, wall panels, trim, gutter attachments, and connection references in that review.
Release the final schedule only after the responsible reviewers resolve the changed condition. Preserve the prior revision as superseded so a supplier or crew does not accidentally build from the earlier roof edge.
- Locate every affected eave condition and drawing revision.
- Reconcile offered profile, slope, connections, and enclosure interfaces.
- Issue the accepted piece schedule and supporting details to the relevant teams.
Verify delivered identity and field readiness
Check piece marks, lengths, profile orientation, finish, and visible condition against the released documents. Make sure the crew has the current connection and roof-edge details before installation. If a piece does not fit, document its mark and the observed difference and request a disposition. An improvised cut or reversal can hide the mismatch without answering whether the framing and enclosure still meet the accepted design.
Common questions
Can a Cee or Zee replace an eave strut?
Do not make that substitution from shape or nominal depth alone. The project designer must review the member, orientation, support, connection, and roof-to-wall interfaces.
Is the eave strut the same item as eave trim?
No. Keep the framing member and the enclosure flashing or trim as separate takeoff items with their own accepted details.
What information is most often missing from an eave strut request?
Check for roof slope, section orientation, finished piece length, end connection references, and the coordinated roof-edge section before requesting an offer.
