Eave Height vs. Clear Height in a Metal Building
Translate metal building eave-height descriptions into usable clearances beneath haunches, purlins, doors, and installed services.
Understand the project condition

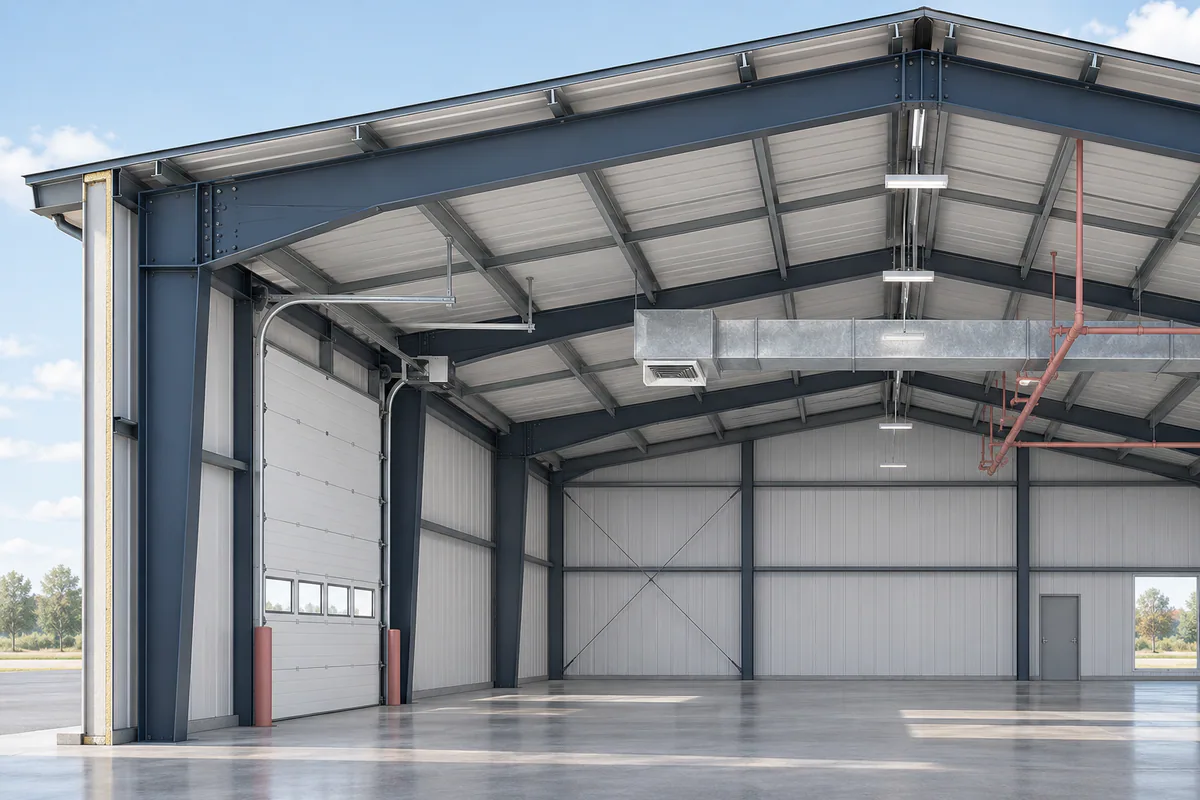

Eave height describes a building reference, while clear height describes an unobstructed space needed for use. Different proposals can use different measurement references. Roof framing, haunches, suspended systems, and overhead door hardware may sit below the line that an owner assumes represents available space.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Show the required clearance over the entire operating zone. A high vehicle needs a continuous route, not one favorable section near the ridge. Record the top of slab, structural reference, lowest obstruction, and equipment envelope. Include future equipment only when its dimensions and design allowance are documented.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Ask the door supplier for track and operator envelopes, and the mechanical team for service routing. Reconcile these with the building manufacturer's frame sections. Increasing eave height can affect building geometry and other design inputs, so resolve it before structural and permit documents are finalized.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Eave reference | Manufacturer's dimension definition | Compare proposals consistently |
| Required clearance | Dimensioned operating envelope | Confirm use along the full route |
| Installed obstruction | Door and service coordination section | Identify the lowest controlling element |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Include measured clearances in the handover record where required by the project, identifying location, reference elevation, and controlling obstruction. A design drawing establishes intent; completed installations determine the space actually available. Reconcile any installed services that differ from the coordinated section before the owner accepts operating access. Later equipment purchases should use the final clearance record rather than an advertised eave height that omits door tracks, haunches, or other local obstructions.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Write clear-height requirements with locations and reference elevations.
- Overlay framing, doors, and services on the same sections.
- Have the owner accept the coordinated operating clearance.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Is clear height equal to eave height minus one fixed allowance?
No. The controlling obstruction and reference definition vary with the frame, roof, door, and services.
Can a higher ridge solve a low clearance at the wall?
Not necessarily. Review the local frame profile and the entire required operating route.
