Large Overhead Doors and Metal Building Frame Coordination
Coordinate large overhead doors with steel frames through jamb reactions, operating envelopes, bracing locations, and supplier responsibilities.
Understand the project condition

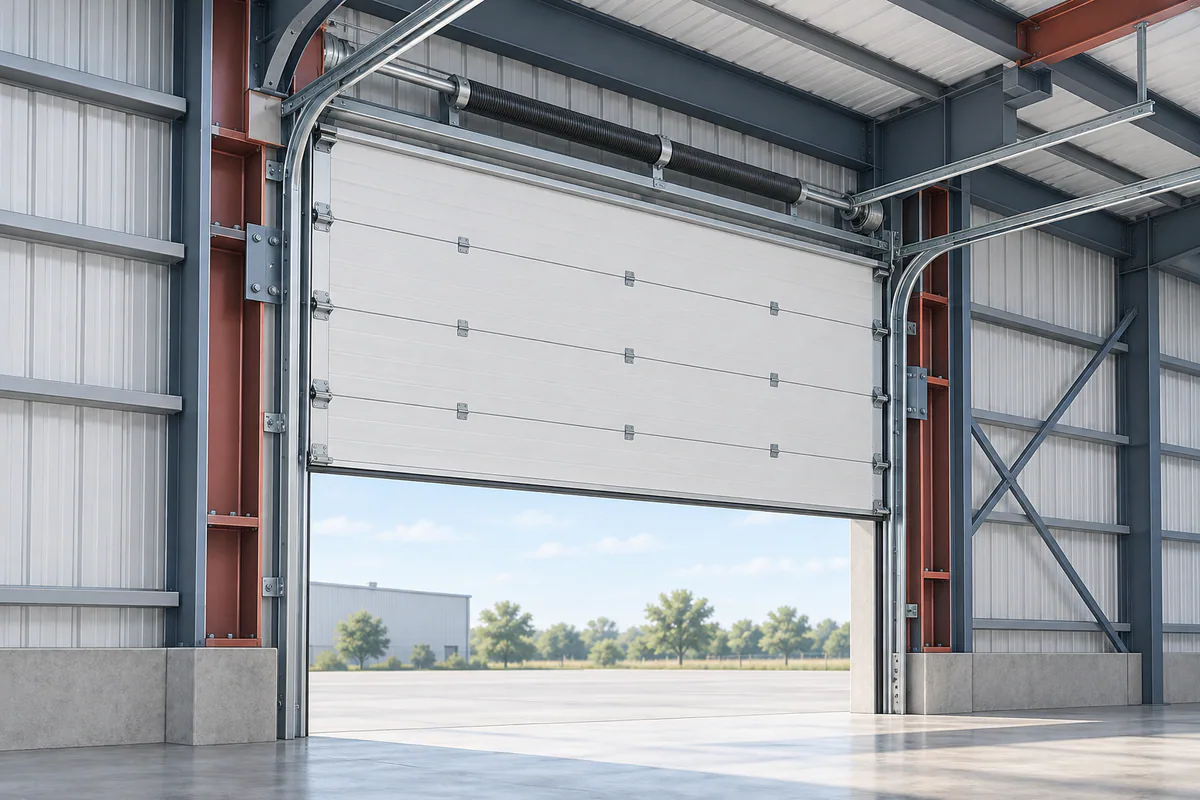

A large overhead door can fit the architectural opening while its tracks, operator, and support reactions conflict with the metal building system. Vehicle access also needs clearance beneath the open door. Door width and height alone do not describe this combined structural and operating condition.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Compare decisions before fabrication release
Obtain door-supplier information for the actual model, mounting arrangement, and project design criteria. Show clear opening, high-lift or other track configuration, service access, and the supported hardware. Resolve door loads with the building-system designer before jamb and header framing are finalized; generic opening dimensions cannot replace that review.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Coordinate the trade interface
Door brackets may need supports distinct from the panel-framing system. Check operating equipment against haunches, bracing, ducts, and lights. Assign responsibility for supports provided by others and for weather seals at jambs and head. Moving bracing to accommodate a door requires engineered review.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Door opening | Dimensioned clear opening and elevations | Confirm vehicle access |
| Door equipment | Actual model and track envelope | Check overhead interference |
| Support reactions | Supplier loads and attachment details | Coordinate jamb and header design |
References: Common Industry Practices, 2024 edition · Metal building system design resources
Close open items and transfer the information
Keep accepted door submittals with the final opening drawings and identified support details. Record installed track and operator arrangements, accepted changes, and the completed operating clearance. Replacement door equipment should be checked for changed reactions and mounting geometry even if opening dimensions remain the same. Future maintenance staff need to distinguish door-supplier hardware from building supports so a convenient replacement bracket does not create an attachment condition absent from the original review.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Select the door arrangement before framing release.
- Send complete supplier data to the responsible building designer.
- Resolve braces and service conflicts on a shared wall section.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Common Industry Practices, 2024 edition · Metal building system design resources
Common questions
Is the door installer automatically responsible for supporting steel?
Only if that scope is assigned. Clarify supplied brackets, structural supports, and review responsibilities in writing.
Can a door use wall-panel framing for every support?
Do not assume so. Support needs must match the actual door and approved building details.
