Overhead Crane Inputs for a Metal Building Project
Assemble crane-supplier geometry, operating information, reactions, and runway scope before a steel building with an overhead crane is designed.

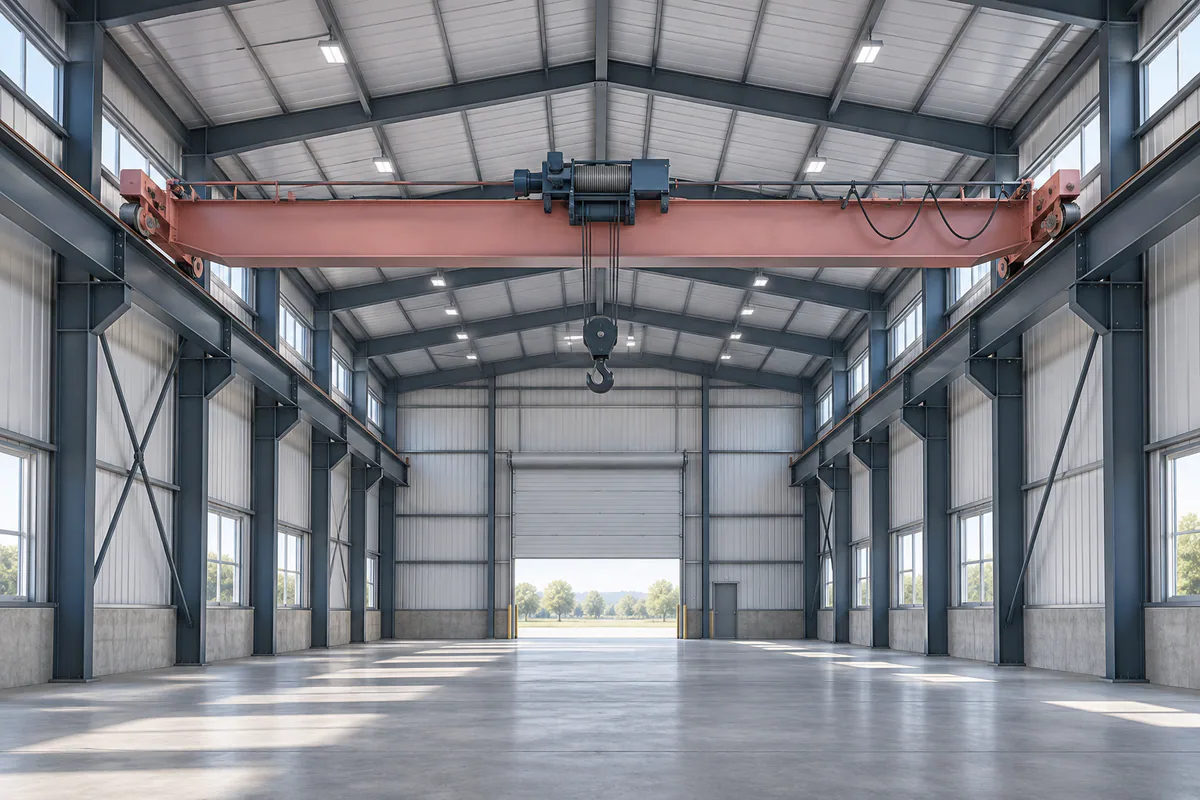

Understand the project condition
An overhead crane introduces equipment geometry and actions that a basic building description does not capture. The crane, runway, brackets, frame, and foundations may be supplied by different parties. Treating the crane's lifting rating as the entire design input leaves those interfaces unresolved.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Identify the actual crane configuration, operating class information supplied by its manufacturer, runway alignment, and clearances. Request the required reaction data and movement criteria through the responsible design team. State whether the crane is current, future, or excluded; a future allowance needs defined assumptions rather than an undefined crane-ready label.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Coordinate runway-support elevations with hook coverage, column profiles, access, electrification, and building movement. Establish who designs runway beams, stops, brackets, and attachments, and who reconciles the crane supplier's requirements with the building frame. Installation and operational acceptance have distinct scopes.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Crane equipment | Supplier configuration and operation data | Establish a specific design input |
| Runway | Alignment, elevations, and support scope | Coordinate equipment coverage |
| Building interface | Reactions and movement criteria | Review frames, connections, and foundations |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Retain supplier data, reviewed support details, and acceptance records together, with final runway elevations and the defined operating basis. Identify the scope of installation and operational acceptance separately. Changes to crane equipment or use require review of the whole support chain, including frames and foundations where applicable. A future owner should be able to locate the original equipment assumptions without treating a nominal lifting rating as unrestricted permission to replace the crane.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Obtain the crane supplier's complete project data.
- Assign runway and support design responsibilities explicitly.
- Reconcile coverage and movement criteria before frame release.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Does a lifting rating determine building crane loads?
No. The actual equipment, operation, reactions, and applicable design criteria require coordinated review.
Does crane-ready mean any crane can be added later?
No. Record the specific future equipment assumptions and have the actual later installation evaluated.
