Resolving Mechanical Conflicts with CFS Roof Trusses

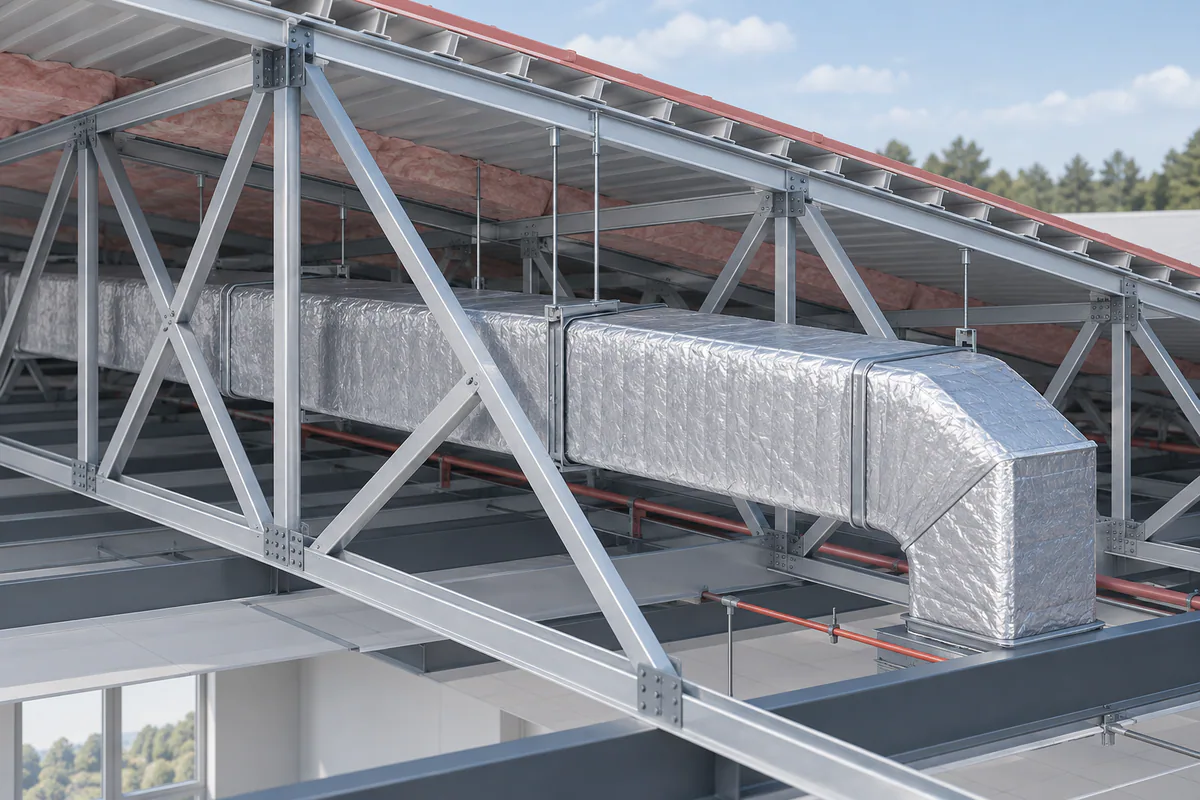

Review ducts, equipment, hangers, and access conflicts with CFS truss geometry before structural and mechanical fabrication releases.
The condition to resolve
A large duct can fit between trusses in plan while colliding with webs in section. Equipment supports and service hangers can introduce loads not included in the original roof package. Review actual geometry and attachment information early; a truss web cannot be treated like a removable partition stud to create clearance.
Coordinate before releasing the work
Overlay ducts, insulation, access, and supports with the released truss geometry. Provide equipment locations and attachment information to the assigned roof designer. Separate geometric clearance from structural permission to attach a load. Resolve the routing or engineered alternative before either package is fabricated, and track revisions to affected truss marks and mechanical drawings.
How it fits the building system
Cold-formed steel trusses are engineered assemblies, not a collection of interchangeable studs. Their geometry, connections, bearing locations, and restraint requirements belong to a coordinated design package. The truss supplier's documents and the building structural documents must address the same supports and loads. Establish who checks those interfaces and who resolves a conflict before fabrication or installation begins.
Keep erection conditions separate from the completed roof condition. Review handling, temporary stability, permanent bracing, and access with the parties assigned to each task. Installing roof panels does not by itself document that every required restraint or connection is complete. Preserve the approved layout and connection information in the field, and route unexpected conditions through a recorded review instead of cutting, splicing, or straightening a truss.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Check duct sections against truss webs and bracing.
- Submit service-support loads and locations for structural review.
- Coordinate maintenance access before roof and ceiling closure.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Clearance | Truss and service overlay | Usable full service envelope |
| Hanger | Attachment and equipment data | Reviewed load location |
| Conflict | Marked section and truss identity | Approved route or redesign |
Verification and handoff to the next trade
During rough-in, compare actual ducts and hangers with the accepted overlay and record any support relocation. Verify that maintenance access has not been lost by an equipment or ceiling change. If a conflict appears, show the truss mark, web location, and full service envelope in the request; do not alter the truss while awaiting a response. Preserve final routes and approved load attachments so future equipment changes can be reviewed from reliable records.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can an unused-looking truss web be removed?
No unreviewed alteration is acceptable. The web belongs to an engineered assembly; obtain a specific designer disposition for the actual conflict.
Does available space permit a mechanical hanger?
Space and load capacity are different questions. Coordinate the proposed attachment and load with the designer even when the service fits geometrically.
