Documenting Damage and Repair Requests for CFS Trusses
Prepare location-specific CFS truss damage records, review requests, and repair verification before an affected assembly is installed or concealed.
The condition to resolve
Shipping or installation damage can affect a chord, web, connection, or the truss geometry. A general description such as bent steel gives the reviewer little basis for a response. Preserve the truss identity and actual condition while the assigned site team determines the appropriate handling and installation status.
Coordinate before releasing the work

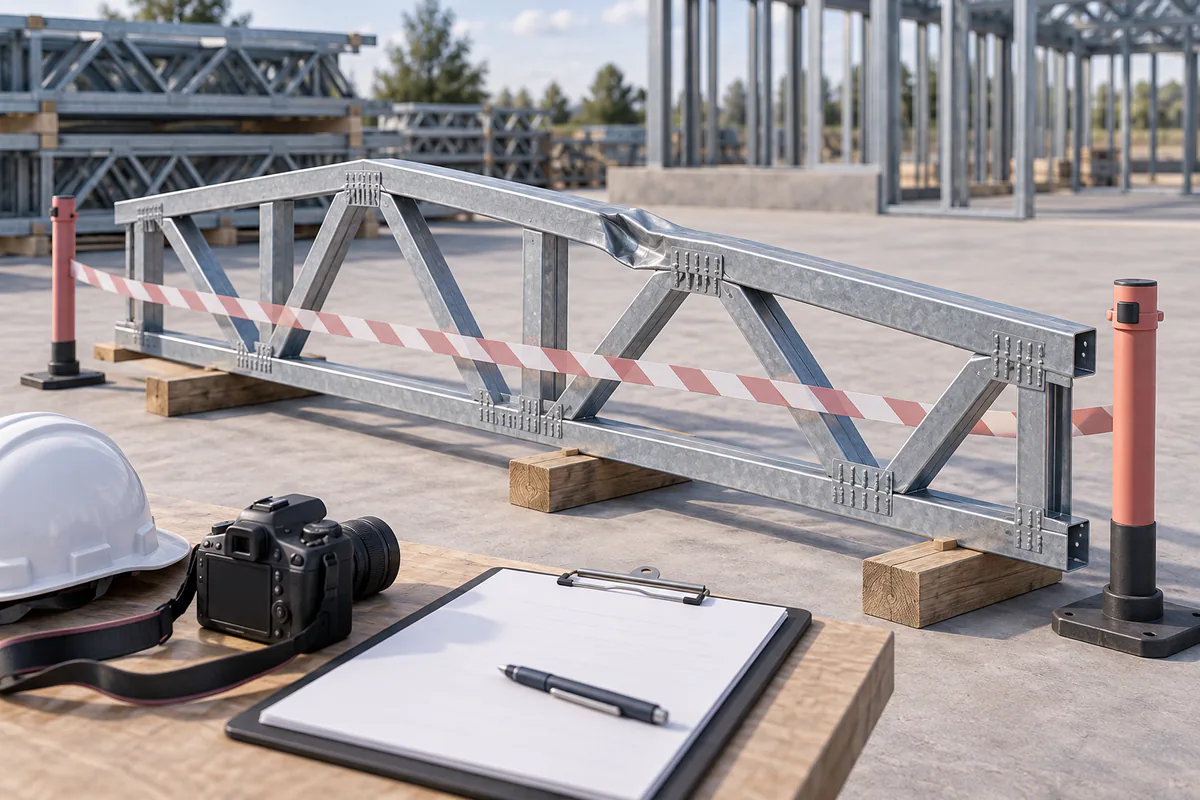

Photograph the full truss and close views with identifiable locations. Record member markings, the observed change, and whether the assembly is stored or installed. Contact the assigned designer and supplier through the project process for disposition. Do not straighten, cut, splice, or cover the damaged area before obtaining the relevant instructions and review.
How it fits the building system
Cold-formed steel trusses are engineered assemblies, not a collection of interchangeable studs. Their geometry, connections, bearing locations, and restraint requirements belong to a coordinated design package. The truss supplier's documents and the building structural documents must address the same supports and loads. Establish who checks those interfaces and who resolves a conflict before fabrication or installation begins.
Keep erection conditions separate from the completed roof condition. Review handling, temporary stability, permanent bracing, and access with the parties assigned to each task. Installing roof panels does not by itself document that every required restraint or connection is complete. Preserve the approved layout and connection information in the field, and route unexpected conditions through a recorded review instead of cutting, splicing, or straightening a truss.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Identify truss mark, damaged member, and physical status.
- Provide overall and close photographs with location references.
- Link approved disposition to repair and verification records.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Damage | Marked photographic report | Observed condition |
| Disposition | Designer and supplier response | Repair, replacement, or further review |
| Verification | Instruction-based review record | Released installation status |
Verification and handoff to the next trade
The repair record should link the original damage report to the approved instructions, installer, and verification observations. Confirm that the repaired truss still corresponds to its layout mark and intended support condition. If the damage assessment affects adjacent bracing or handling requirements, include those responses before returning the assembly to the installation sequence. Keep unresolved assemblies clearly controlled so a repaired or replacement status cannot be inferred from a changed appearance alone.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a crew straighten a bent chord before reporting it?
Report the original condition and obtain disposition first. Straightening changes the evidence and may be an unreviewed alteration of the engineered assembly.
What closes a repair request?
Document completion against the approved instructions and the project's required verification. The closeout should clearly identify the affected truss and its accepted status.
