Steel framing

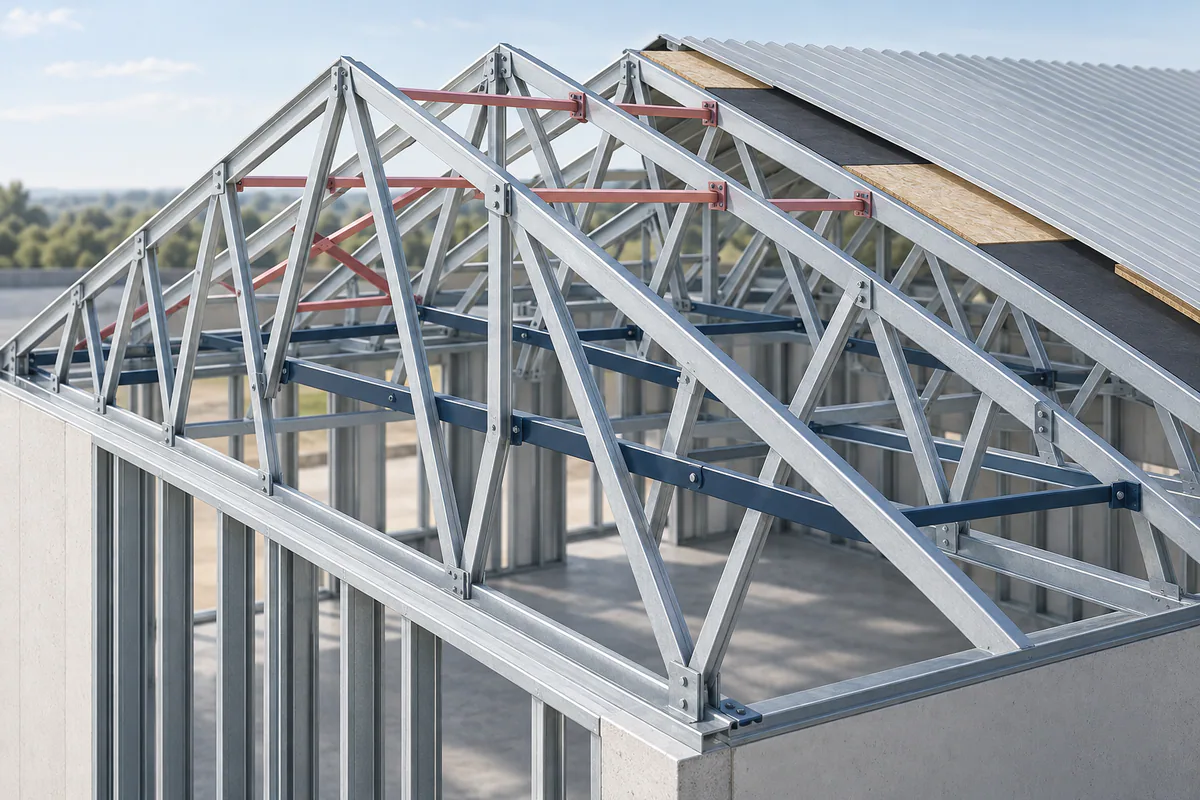

Coordinating Permanent and Temporary Bracing for CFS Trusses
Coordinate CFS truss restraint, bracing interfaces, temporary erection planning, roof layers, and inspection access before installation.
The condition to resolve
A truss design can identify restraint locations without showing the complete path that braces those locations into the building. Temporary erection stability is another separate issue. The installer needs coordinated responsibilities and details rather than assuming roofing or ceiling work will supply every restraint shown in the component package.
Coordinate before releasing the work
Have the relevant designers identify permanent restraint and its connection to the supporting system. Coordinate temporary erection planning with the assigned installation team. Overlay bracing with ducts, equipment, and roof access. Define the observation sequence before layers conceal the bracing and communicate which temporary elements can be removed under the approved plan.
How it fits the building system
Cold-formed steel trusses are engineered assemblies, not a collection of interchangeable studs. Their geometry, connections, bearing locations, and restraint requirements belong to a coordinated design package. The truss supplier's documents and the building structural documents must address the same supports and loads. Establish who checks those interfaces and who resolves a conflict before fabrication or installation begins.
Keep erection conditions separate from the completed roof condition. Review handling, temporary stability, permanent bracing, and access with the parties assigned to each task. Installing roof panels does not by itself document that every required restraint or connection is complete. Preserve the approved layout and connection information in the field, and route unexpected conditions through a recorded review instead of cutting, splicing, or straightening a truss.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Assign design and installation of permanent restraint paths.
- Coordinate temporary stability with the erection planner.
- Check bracing locations against services and roof access needs.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Permanent restraint | Reviewed building bracing package | Complete attachment path |
| Temporary work | Approved erection plan | Removal and sequence criteria |
| Concealment | Roof and service coordination | Review access retained |
Verification and handoff to the next trade
Use the final truss layout to locate each required bracing line and receiving attachment during the review walk. Close missing, obstructed, or changed restraint conditions with the assigned designer before treating the roof as complete. Record permanent components separately from temporary installation aids and retain their disposition. The roofing and mechanical handoff should identify protected bracing zones so later service access or equipment installation does not silently interrupt a designed restraint path.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Do truss drawings always show all building bracing?
Check the scope and references. Component restraint information and the complete building bracing system must be reconciled by the assigned responsible parties.
Can a brace be moved around a duct in the field?
Submit the conflict for review. Relocation can change the restraint path and its attachments; a convenient route is not evidence of equivalent performance.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Resources for framing contractors ClarkDietrich
Prepared with AI assistance. Linked references require current project-specific review. How these guides are prepared.
