Reviewing Rim Track Scope in CFS Floor Systems
Identify rim-track functions, corner details, joist interfaces, and supply boundaries before purchasing a cold-formed steel floor package.
The condition to resolve

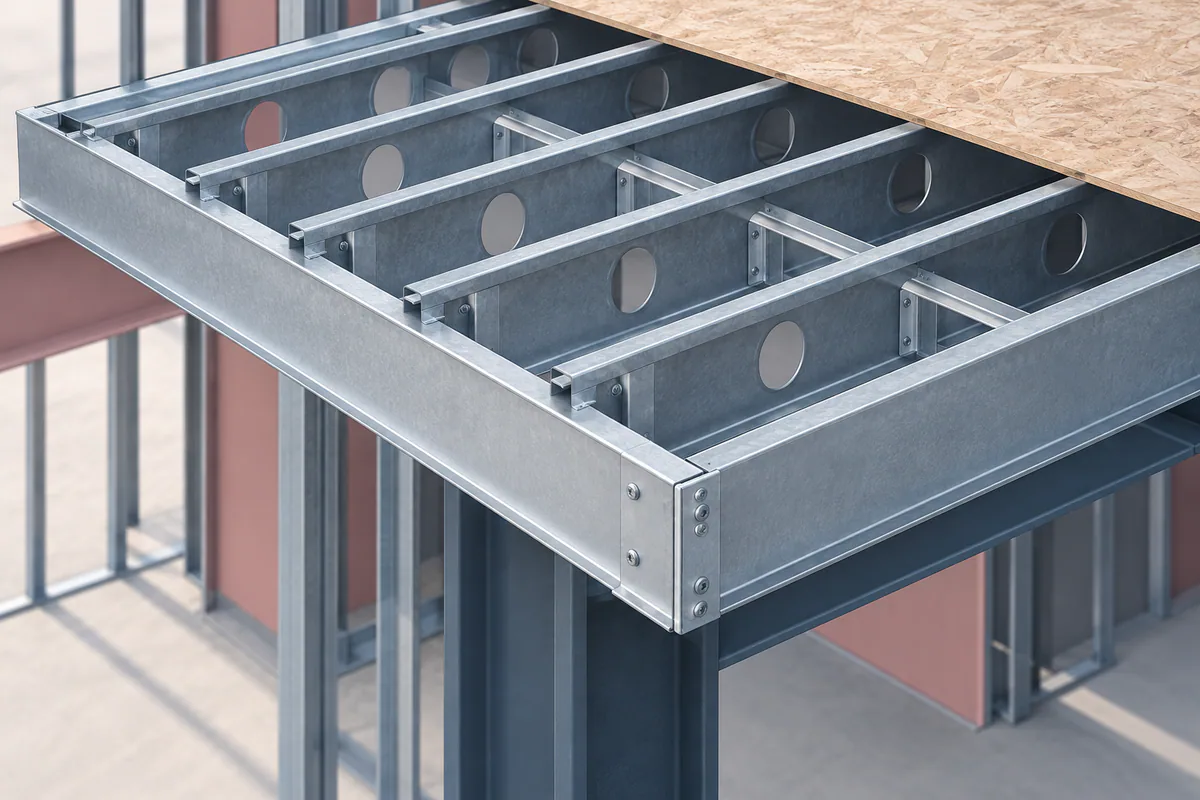

An estimate that counts perimeter track by length can miss different rim conditions at ledgers, corners, cantilevers, and openings. A rim may perform assigned restraint or support functions beyond closing joist ends. The floor designer's details should identify which functions apply and which accessories complete the connection.
Coordinate before releasing the work
Divide the perimeter into detail zones and match each zone to the specified rim product. Coordinate corners and interrupted runs with the joist layout and adjacent wall framing. Ask whether connector, stiffener, and attachment quantities are included in the floor offer. Avoid treating plain wall track as interchangeable with a proprietary floor rim.
How it fits the building system
A cold-formed steel floor is an assembly of joists, supports, restraint, deck or sheathing, finishes, and connections. Review the entire assembly rather than ordering joists from a span alone. Manufacturer data describes specific products and conditions; the project designer must reconcile those conditions with the building's loads, openings, and supporting construction. Product substitutions can change interfaces even when the nominal member depth remains the same.
Prepare a coordinated floor section showing the structure, service zone, ceiling, and finished floor elevation. Locate bearing lines and special openings in plan, then track the details that cannot be seen after enclosure. Before releasing an area for subsequent work, check that temporary construction activities and stored materials follow the approved construction plan. A finished-floor review and an installation-stage review answer different questions.
References: TradeReady steel joists: system data and application limits · TradeReady floor joist blocking · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Break perimeter quantities into distinct rim-detail zones.
- Check corners and interrupted runs against the joist layout.
- Reconcile end accessories and support fasteners with the supplier.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Typical edge | Rim product schedule | Assigned floor function |
| Corner | Perimeter transition detail | Connection and accessory scope |
| Interrupted rim | Opening or support section | Continuity response |
Verification and handoff to the next trade
Reconcile the delivered rim marks with the zone schedule before installation. At changes of direction and interruptions, verify the actual joint configuration against the reviewed detail and preserve access for connection review. If the floor supplier changes the rim profile, update joist-end compatibility and attachment scope together. The final floor record should identify unusual perimeter conditions so later wall or facade attachments are not made to an assumed generic rim.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Is rim track simply the same as wall track?
Do not infer interchangeability from shape. Use the floor package's identified rim product and details; proprietary configurations may have specific joist-end interfaces.
Why is perimeter length insufficient for an order?
Length omits changes in product, corners, supports, openings, and accessories. A detail-zone schedule makes those requirements visible to the supplier and installer.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- TradeReady steel joists: system data and application limits ClarkDietrich
- TradeReady floor joist blocking ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
