Planning an Opening in an Existing CFS Bearing Wall
Coordinate investigation, temporary work, structural design, services, and enclosure restoration before adding an opening to an existing CFS wall.
The condition to resolve

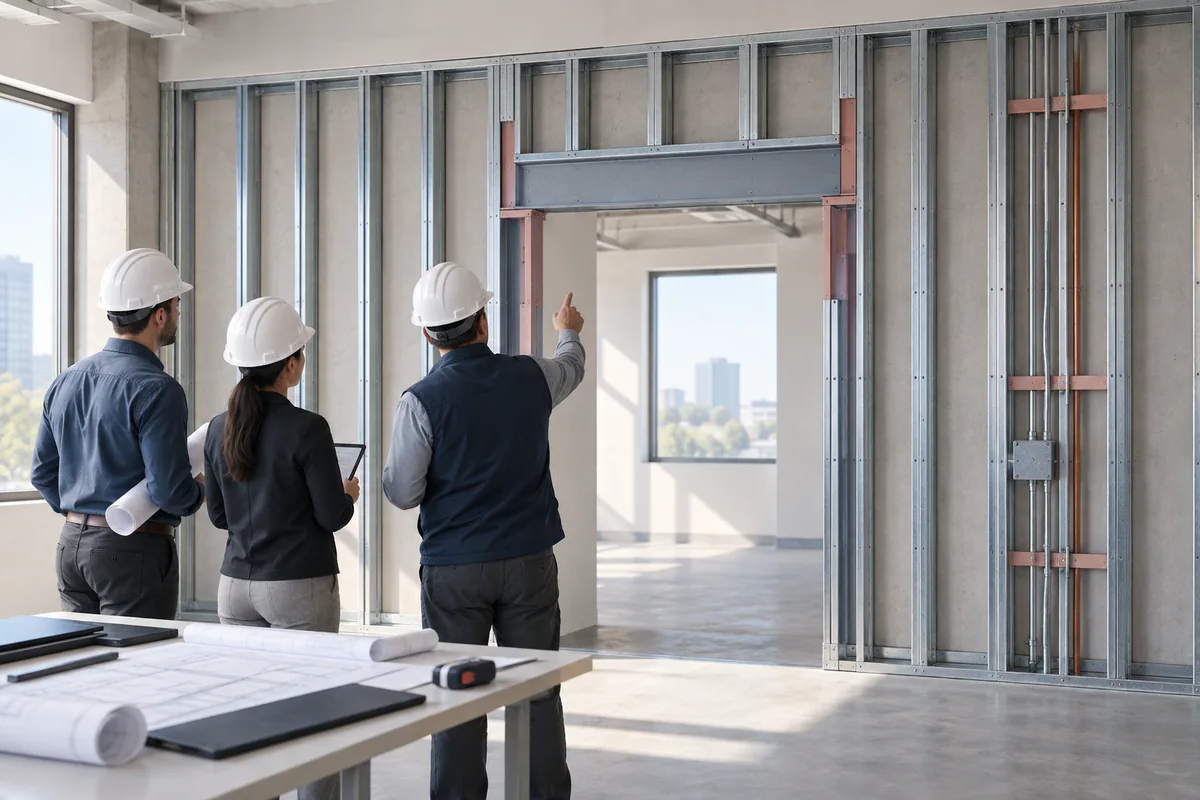

A new door or equipment opening can interrupt an existing bearing wall and change reactions below. The original wall may also contain services or rated construction. A header detail from a new building does not establish how to alter this wall or maintain support during the work.
Coordinate before releasing the work
Have the responsible structural designer evaluate the existing wall and proposed opening. Coordinate investigation and any temporary support plan with the assigned parties before demolition. Identify services, finishes, and protection that need relocation or restoration. Issue the reviewed permanent details and construction sequence together so pricing and field work use the same basis.
How it fits the building system
Existing framing investigations begin with evidence, not an assumed match to a current catalog. Obtain available drawings and alteration records, identify accessible members and connections, and separate observed facts from inferences. Finishes can conceal the wall's structural role or a previous modification. The responsible design professional should define what additional investigation is needed before a contractor prices or performs structural changes.
Plan access and occupancy protection around the investigation. Opening finishes, removing services, and temporarily supporting construction are separate tasks with their own responsible parties. Do not treat a limited visual review as confirmation of concealed conditions. Maintain a location-based record of photographs, measurements, product markings, and unresolved questions; then connect any repair or alteration to a written disposition and the required follow-up inspection.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Investigate the wall's role and reaction path before removal.
- Coordinate temporary support responsibility and reviewed work sequence.
- Plan restoration of services and rated or enclosure layers.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Existing condition | Designer-reviewed investigation | Actual support basis |
| Construction stage | Assigned temporary-work plan | Approved alteration sequence |
| Permanent opening | Reviewed framing and restoration details | Completed accepted assembly |
Verification and handoff to the next trade
After the alteration, verify the installed opening assembly and receiving supports against the accepted design while details remain accessible. Record deviations from investigated conditions and obtain disposition before concealment. Reconcile relocated services and restored rated or enclosure layers with their separate accepted details. The closeout should locate the new opening and identify its reviewed configuration so later modifications do not assume the remaining wall is an untouched typical assembly from the original building drawings.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a standard header detail be installed before review?
No. The designer must evaluate the existing wall, load transfer, supports, and alteration sequence for the actual proposed opening.
Does structural approval resolve fire-rated restoration?
Not by itself. Coordinate restoration of the wall's accepted protection and any service penetrations with the relevant assembly reviewers.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Resources for framing contractors ClarkDietrich
