Planning an Investigation of Existing CFS Walls
Plan an evidence-based investigation of existing CFS walls with records, access, member identification, concealed conditions, and review questions.
The condition to resolve
An existing steel-framed wall may be a partition, a bearing wall, or part of a lateral system. Finishes and old drawings can conceal changes made during previous work. Start an investigation by defining the proposed decision and the evidence needed, rather than assuming all thin steel studs are nonstructural.
Coordinate before releasing the work
Collect available drawings, permits or alteration records, and accessible product markings. Have the responsible designer identify useful investigation locations and any protection or temporary support planning needed. Coordinate opening finishes and isolating services with assigned trades. Record observed conditions separately from conclusions and identify areas that remain concealed.
How it fits the building system
Existing framing investigations begin with evidence, not an assumed match to a current catalog. Obtain available drawings and alteration records, identify accessible members and connections, and separate observed facts from inferences. Finishes can conceal the wall's structural role or a previous modification. The responsible design professional should define what additional investigation is needed before a contractor prices or performs structural changes.

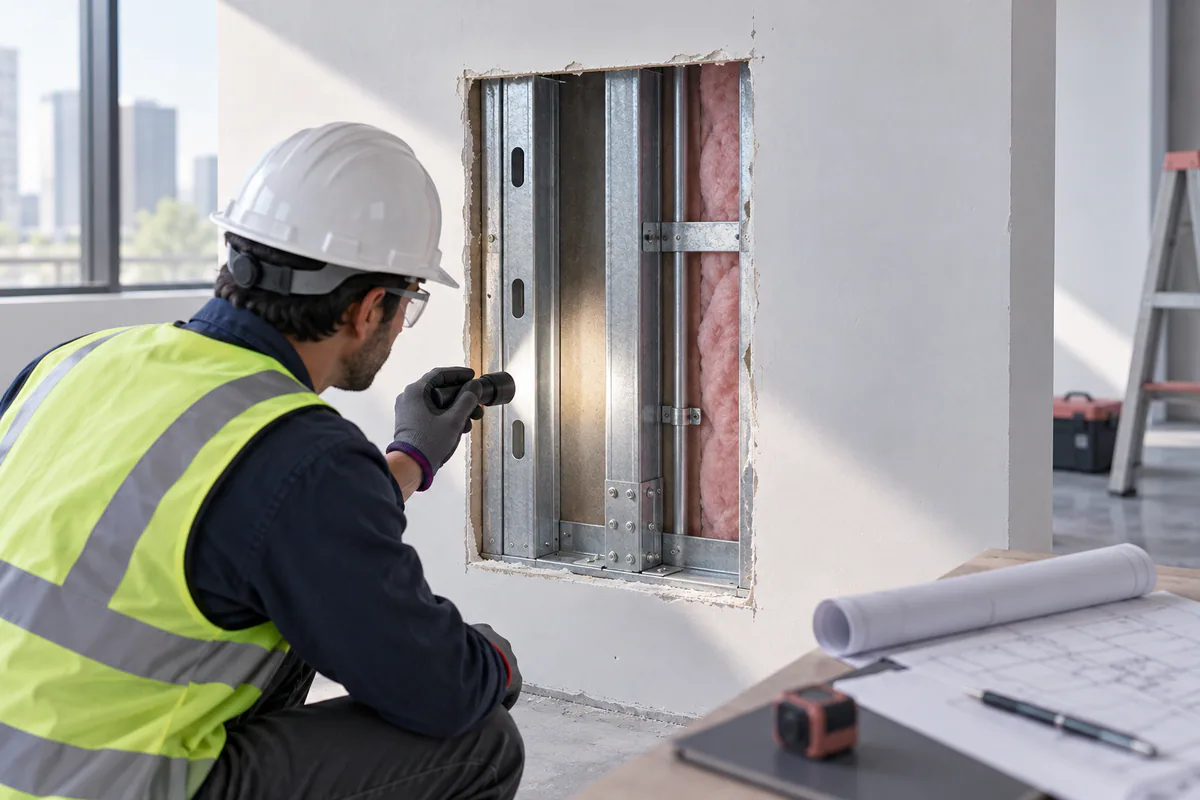

Plan access and occupancy protection around the investigation. Opening finishes, removing services, and temporarily supporting construction are separate tasks with their own responsible parties. Do not treat a limited visual review as confirmation of concealed conditions. Maintain a location-based record of photographs, measurements, product markings, and unresolved questions; then connect any repair or alteration to a written disposition and the required follow-up inspection.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Resources for framing contractors
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Define the alteration question before choosing investigation locations.
- Collect actual member markings and connection evidence where accessible.
- Separate observed facts, inferred conditions, and unresolved concealed areas.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Records | Available drawings and alterations | Reliability and gaps |
| Field evidence | Located observations and markings | Actual condition |
| Concealed work | Designer investigation plan | Further evidence needed |
Verification and handoff to the next trade
The investigation report should identify each reviewed area, evidence obtained, unresolved conditions, and the designer's next-step disposition. Do not extrapolate a single exposed bay to every wall without an accepted basis. Reconcile historical drawings with observed construction and keep discrepancies visible. The resulting scope can identify additional investigation, repair, or redesign work, while making clear which concealed conditions were not confirmed and must remain part of the decision before construction proceeds.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can wall function be identified from stud appearance alone?
No. Establish its role from the building system, records, and investigation reviewed by the responsible professional. Similar members can serve different functions.
Does opening one wall bay confirm the whole building?
Not automatically. The reviewer must evaluate representativeness and any differences between locations, construction phases, or previous alterations.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Resources for framing contractors ClarkDietrich
