TRIM CATALOG · Edgecraft Trim
Sculptured Southern Std. Rake Trim - PBR Roof At Steel Line Up To 3/4" with 3" Wall Panel
0 ratings0 recorded purchasers
Sculptured Southern Std. Rake Trim - PBR Roof At Steel Line Up To 3/4" with 3" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 6000-0954250

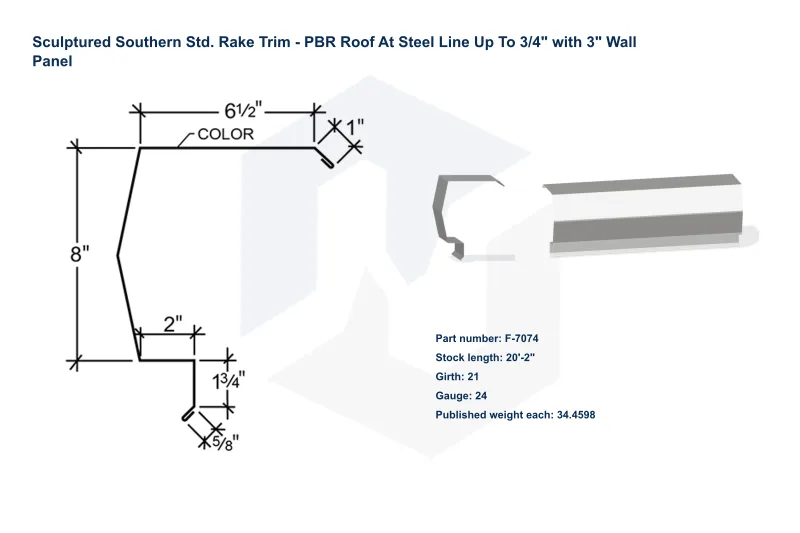

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$14.23/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 21
- Published weight per piece
- 34.4598; 27.4619
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7074 | 20'-2" | 21 | 24 | 34.4598 |
| F-7074 | 20'-2" | 21 | 26 | 27.4619 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
