TRIM CATALOG · Edgecraft Trim

Sculptured Southern Std. Rake Trim - PBR Roof At Steel Line Up To 3/4" with 3/4" Thru 1-3/4" Wall Panel

0 / 5

0 ratings0 recorded purchasers

Sculptured Southern Std. Rake Trim - PBR Roof At Steel Line Up To 3/4" with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.

Reference part: 6900-0741121

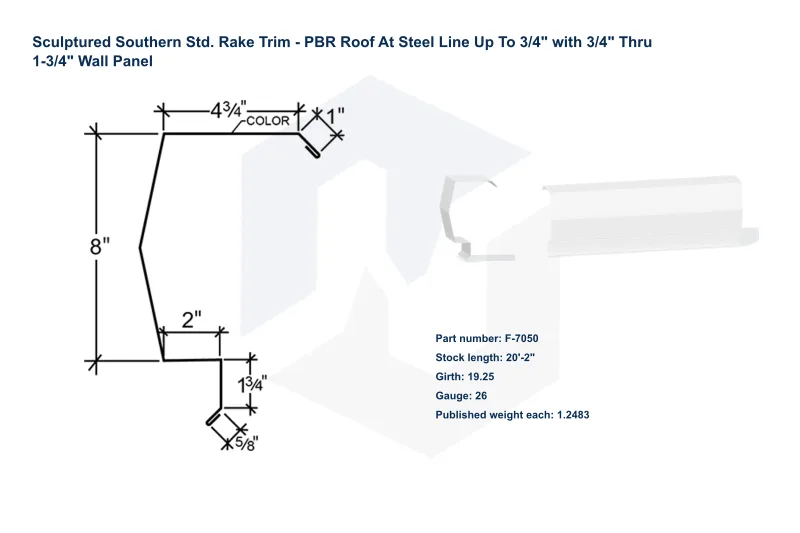

Sculptured Southern Std. Rake Trim - PBR Roof At Steel Line Up To 3/4" with 3/4" Thru 1-3/4" Wall Panel — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Thickness

Strippable Film

Embossed

Length (inches)

Custom request · price to confirmOn confirmation

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2"
Published gauges: 24; 26
Published girth: 19.25
Published weight per piece: 1.5664; 1.2483

Supplier specifications

Reference part: F-7050. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-7050	20'-2"	19.25	24	1.5664
F-7050	20'-2"	19.25	26	1.2483

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
