Sculptured Southern Std. Mitered High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Southern Std. Mitered High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0747607

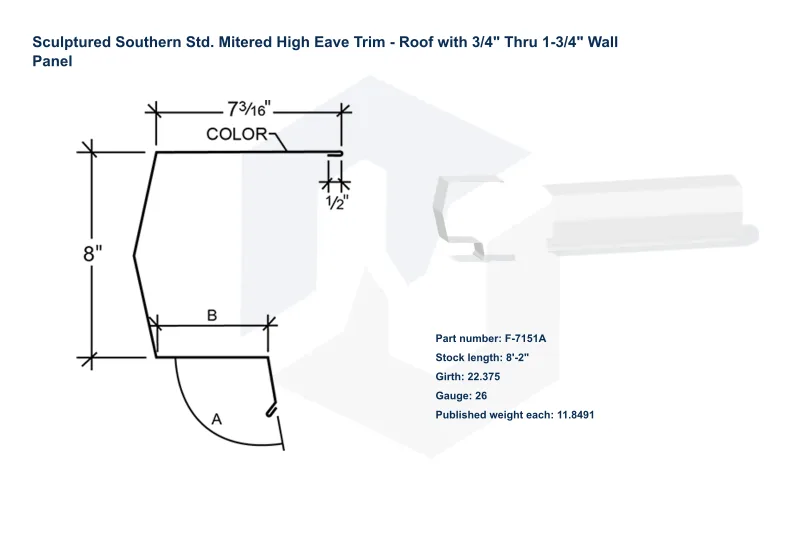

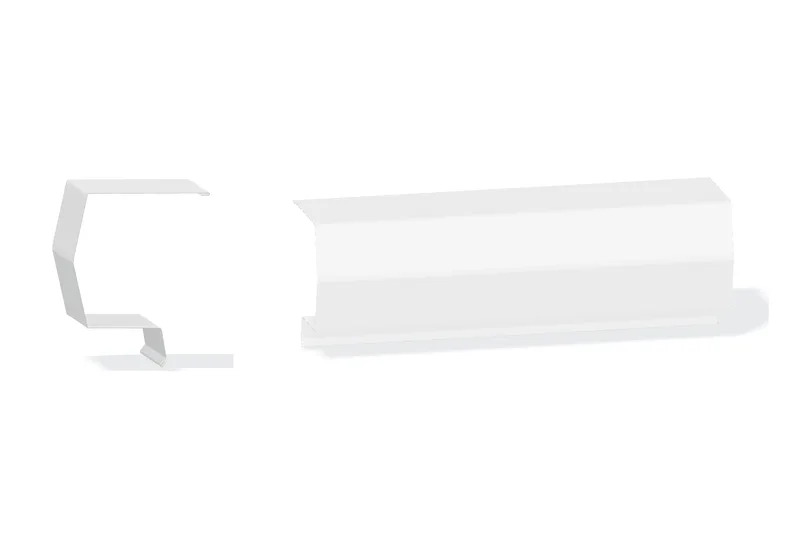

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 22.375; 22.625; 23.0625; 23.5625; 24; 24.5; 24.9375
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7151A | 8'-2" | 22.375 | 24 | 14.8685 |
| F-7151A | 8'-2" | 22.375 | 26 | 11.8491 |
| F-7151B | 8'-2" | 22.625 | 24 | 15.0346 |
| F-7151B | 8'-2" | 22.625 | 26 | 11.9815 |
| F-7151C | 8'-2" | 23.0625 | 24 | 15.3253 |
| F-7151C | 8'-2" | 23.0625 | 26 | 12.2132 |
| F-7151D | 8'-2" | 23.5625 | 24 | 15.6576 |
| F-7151D | 8'-2" | 23.5625 | 26 | 12.4779 |
| F-7151E | 8'-2" | 24 | 24 | 15.9483 |
| F-7151E | 8'-2" | 24 | 26 | 12.7096 |
| F-7151F | 8'-2" | 24.5 | 24 | 16.2806 |
| F-7151F | 8'-2" | 24.5 | 26 | 12.9744 |
| F-7151G | 8'-2" | 24.9375 | 24 | 16.5713 |
| F-7151G | 8'-2" | 24.9375 | 26 | 13.2061 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
