Sculptured Southern Std. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Southern Std. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0747600

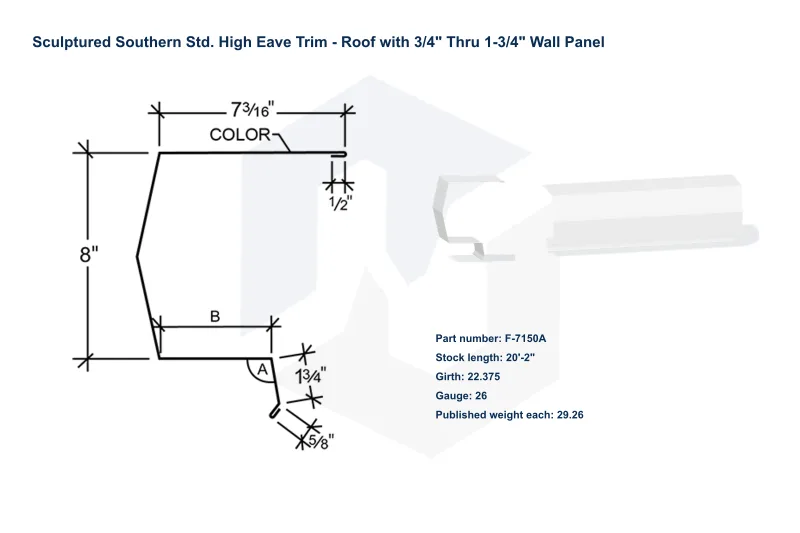

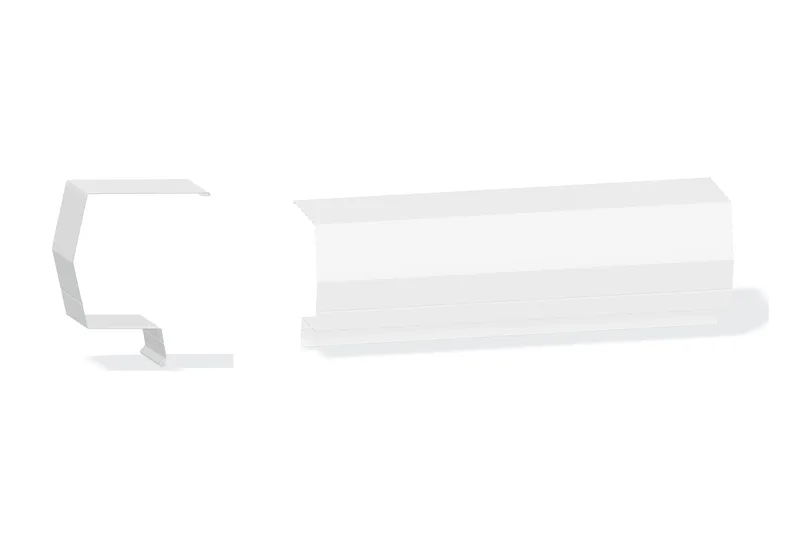

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 22.375; 22.625; 23.0625; 23.5625; 24; 24.5; 24.9375
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7150A | 20'-2" | 22.375 | 24 | 36.7161 |
| F-7150A | 20'-2" | 22.375 | 26 | 29.26 |
| F-7150B | 20'-2" | 22.625 | 24 | 37.1263 |
| F-7150B | 20'-2" | 22.625 | 26 | 29.5869 |
| F-7150C | 20'-2" | 23.0625 | 24 | 37.8442 |
| F-7150C | 20'-2" | 23.0625 | 26 | 30.159 |
| F-7150D | 20'-2" | 23.5625 | 24 | 38.6647 |
| F-7150D | 20'-2" | 23.5625 | 26 | 30.8129 |
| F-7150E | 20'-2" | 24 | 24 | 39.3826 |
| F-7150E | 20'-2" | 24 | 26 | 31.385 |
| F-7150F | 20'-2" | 24.5 | 24 | 40.2031 |
| F-7150F | 20'-2" | 24.5 | 26 | 32.0388 |
| F-7150G | 20'-2" | 24.9375 | 24 | 40.921 |
| F-7150G | 20'-2" | 24.9375 | 26 | 32.611 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
