TRIM CATALOG · Edgecraft Trim

Sculptured Southern Std. Alt. Peak Box - PBR

0 / 5

0 ratings0 recorded purchasers

Sculptured Southern Std. Alt. Peak Box - PBR. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.

Part: 6000-0768965

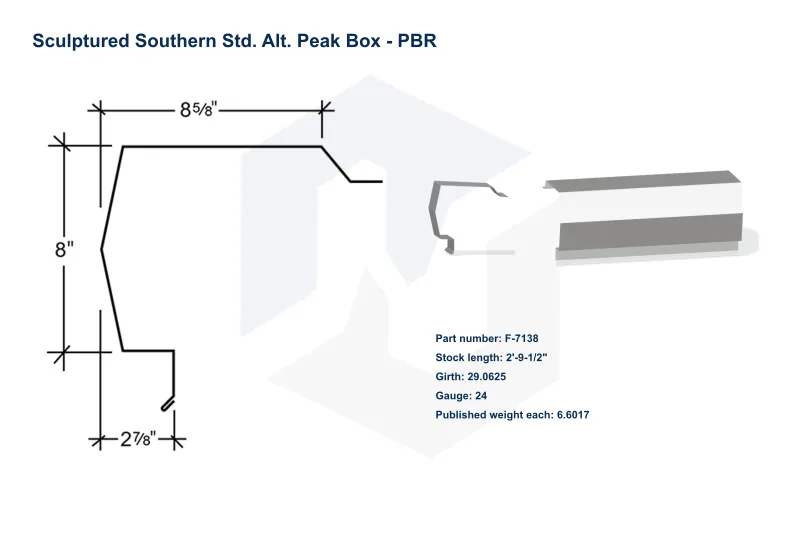

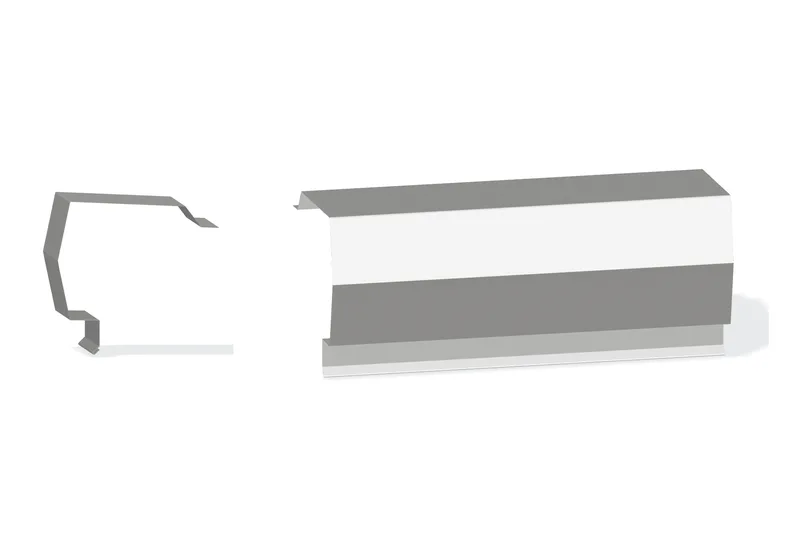

Sculptured Southern Std. Alt. Peak Box - PBR — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Standard Length

Thickness

Measurement Type

Roof Slope

Strippable Film

Embossed

Roof angle (degrees) — alternative to slopeInactive: Slope method selected.

Price for selected quantity$29.88/1 piece

per piece

Price recorded

Requested quantity

Published product details

Published lengths: 2'-9-1/2"
Published gauges: 24; 26
Published girth: 29.0625
Published weight per piece: 6.6017; 5.2611

Supplier specifications

Selected part: F-7138. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-7138	2'-9-1/2"	29.0625	24	6.6017
F-7138	2'-9-1/2"	29.0625	26	5.2611

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
