Sculptured Southern Lg. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Southern Lg. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0740586

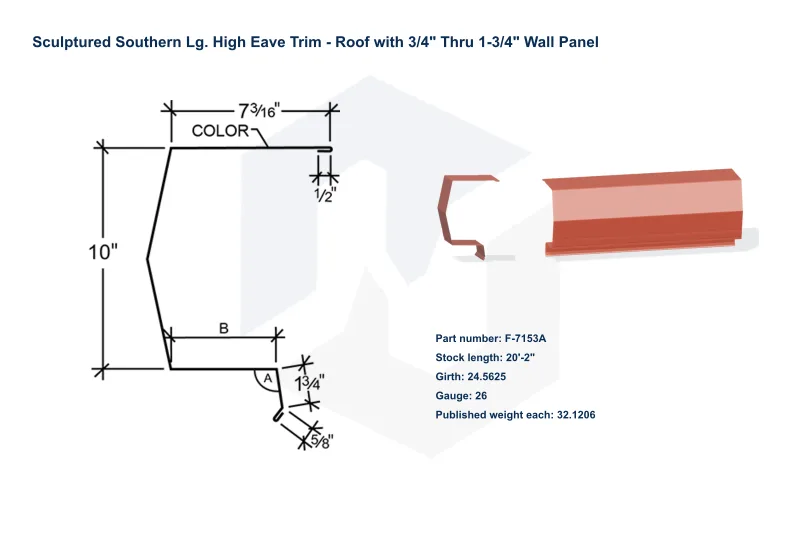

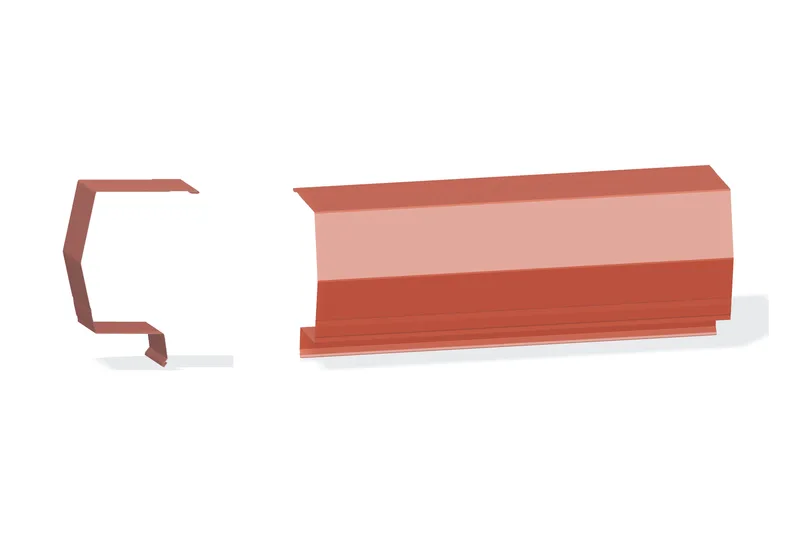

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 24.5625; 25.875; 25.5625; 26.1875; 26.8125; 27.4375; 28.0625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7153A | 20'-2" | 24.5625 | 24 | 40.3056 |
| F-7153A | 20'-2" | 24.5625 | 26 | 32.1206 |
| F-7153B | 20'-2" | 25.875 | 24 | 40.8184 |
| F-7153B | 20'-2" | 25.875 | 26 | 33.8369 |
| F-7153C | 20'-2" | 25.5625 | 24 | 41.9466 |
| F-7153C | 20'-2" | 25.5625 | 26 | 33.4283 |
| F-7153D | 20'-2" | 26.1875 | 24 | 42.9722 |
| F-7153D | 20'-2" | 26.1875 | 26 | 34.2456 |
| F-7153E | 20'-2" | 26.8125 | 24 | 43.9977 |
| F-7153E | 20'-2" | 26.8125 | 26 | 35.0629 |
| F-7153F | 20'-2" | 27.4375 | 24 | 45.0233 |
| F-7153F | 20'-2" | 27.4375 | 26 | 35.8802 |
| F-7153G | 20'-2" | 28.0625 | 24 | 46.0489 |
| F-7153G | 20'-2" | 28.0625 | 26 | 36.6975 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
