TRIM CATALOG · Edgecraft Trim
Sculptured Southern Lg. High Eave Expansion Cover - Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Southern Lg. High Eave Expansion Cover - Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0766925

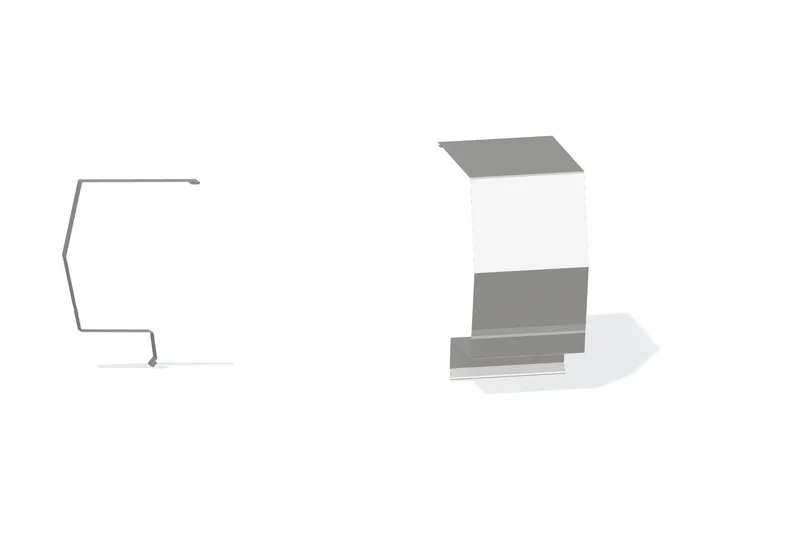

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 25.3125; 25.625; 26.3125; 26.9375; 27.5625; 28.1875; 28.8125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7155A | 0'-6" | 25.3125 | 24 | 1.0298 |
| F-7155A | 0'-6" | 25.3125 | 26 | 0.8207 |
| F-7155B | 0'-6" | 25.625 | 24 | 1.0425 |
| F-7155B | 0'-6" | 25.625 | 26 | 0.8308 |
| F-7155C | 0'-6" | 26.3125 | 24 | 1.0705 |
| F-7155C | 0'-6" | 26.3125 | 26 | 0.8531 |
| F-7155D | 0'-6" | 26.9375 | 24 | 1.0959 |
| F-7155D | 0'-6" | 26.9375 | 26 | 0.8734 |
| F-7155E | 0'-6" | 27.5625 | 24 | 1.1214 |
| F-7155E | 0'-6" | 27.5625 | 26 | 0.8936 |
| F-7155F | 0'-6" | 28.1875 | 24 | 1.1468 |
| F-7155F | 0'-6" | 28.1875 | 26 | 0.9139 |
| F-7155G | 0'-6" | 28.8125 | 24 | 1.1722 |
| F-7155G | 0'-6" | 28.8125 | 26 | 0.9342 |
Product resources
Request current drawings and installation instructions for your selected product.

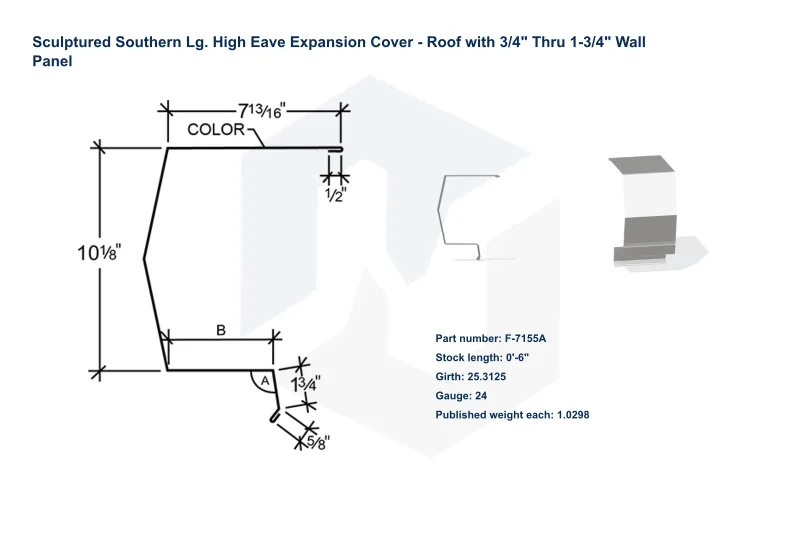

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
