Sculptured Southern Lg. Gutter Expansion Cap - Double-Lok, Ultra-Dek
0 ratings0 recorded purchasers
Sculptured Southern Lg. Gutter Expansion Cap - Double-Lok, Ultra-Dek. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0963376

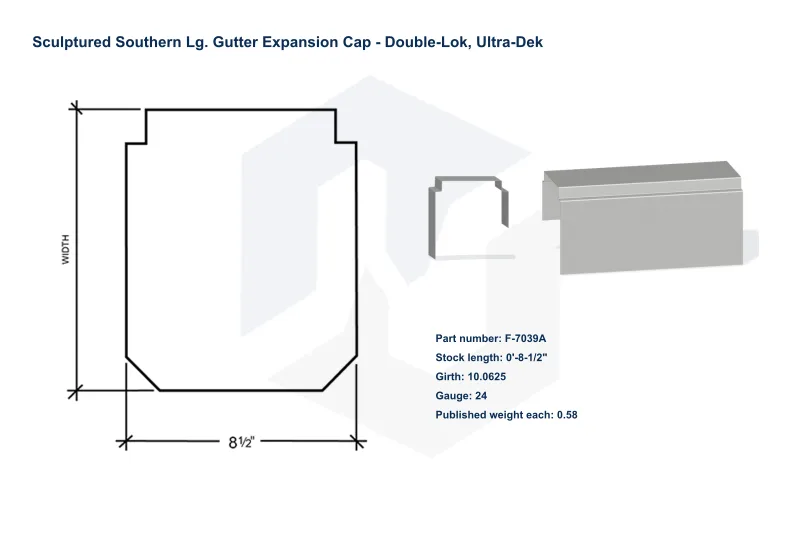

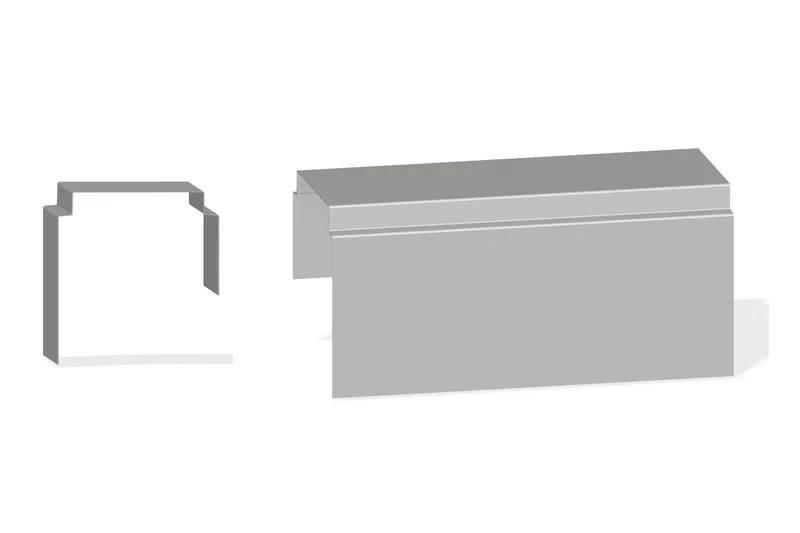

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-8-1/2"
- Published gauges
- 24; 26
- Published girth
- 10.0625; 10.4375; 10.9375; 11.3125; 11.8125; 12.125; 12.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7039A | 0'-8-1/2" | 10.0625 | 24 | 0.58 |
| F-7039A | 0'-8-1/2" | 10.0625 | 26 | 0.4622 |
| F-7039B | 0'-8-1/2" | 10.4375 | 24 | 0.6016 |
| F-7039B | 0'-8-1/2" | 10.4375 | 26 | 0.4794 |
| F-7039C | 0'-8-1/2" | 10.9375 | 24 | 0.6304 |
| F-7039C | 0'-8-1/2" | 10.9375 | 26 | 0.5024 |
| F-7039D | 0'-8-1/2" | 11.3125 | 24 | 0.652 |
| F-7039D | 0'-8-1/2" | 11.3125 | 26 | 0.5196 |
| F-7039E | 0'-8-1/2" | 11.8125 | 24 | 0.6808 |
| F-7039E | 0'-8-1/2" | 11.8125 | 26 | 0.5426 |
| F-7039F | 0'-8-1/2" | 12.125 | 24 | 0.6988 |
| F-7039F | 0'-8-1/2" | 12.125 | 26 | 0.5569 |
| F-7039G | 0'-8-1/2" | 12.6875 | 24 | 0.7313 |
| F-7039G | 0'-8-1/2" | 12.6875 | 26 | 0.5828 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
