Sculptured Northern Std. Mitered High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Std. Mitered High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0955648

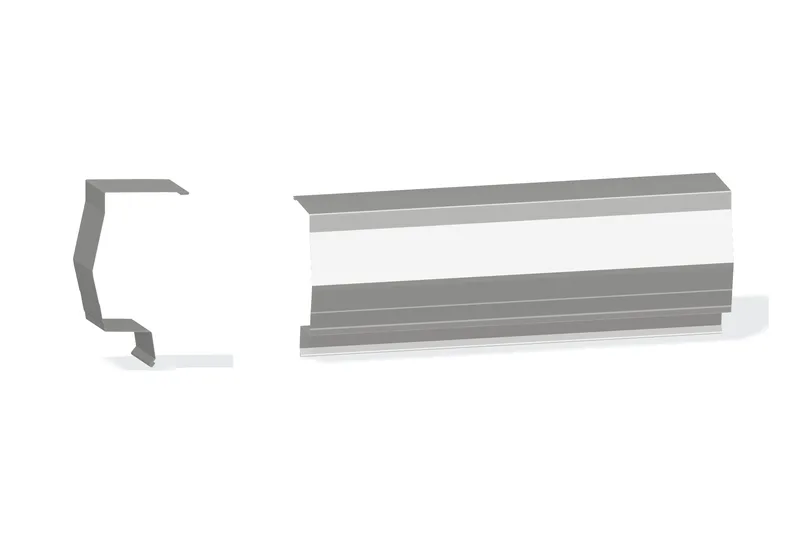

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 20.3125; 20.625; 21.3125; 21.9375; 22.5625; 23.1875; 23.8125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7157A | 8'-2" | 20.3125 | 24 | 13.4979 |
| F-7157A | 8'-2" | 20.3125 | 26 | 10.7568 |
| F-7157B | 8'-2" | 20.625 | 24 | 13.7056 |
| F-7157B | 8'-2" | 20.625 | 26 | 10.9223 |
| F-7157C | 8'-2" | 21.3125 | 24 | 14.1624 |
| F-7157C | 8'-2" | 21.3125 | 26 | 11.2864 |
| F-7157D | 8'-2" | 21.9375 | 24 | 14.5778 |
| F-7157D | 8'-2" | 21.9375 | 26 | 11.6174 |
| F-7157E | 8'-2" | 22.5625 | 24 | 14.9931 |
| F-7157E | 8'-2" | 22.5625 | 26 | 11.9484 |
| F-7157F | 8'-2" | 23.1875 | 24 | 15.4084 |
| F-7157F | 8'-2" | 23.1875 | 26 | 12.2793 |
| F-7157G | 8'-2" | 23.8125 | 24 | 15.8237 |
| F-7157G | 8'-2" | 23.8125 | 26 | 12.6103 |
Product resources

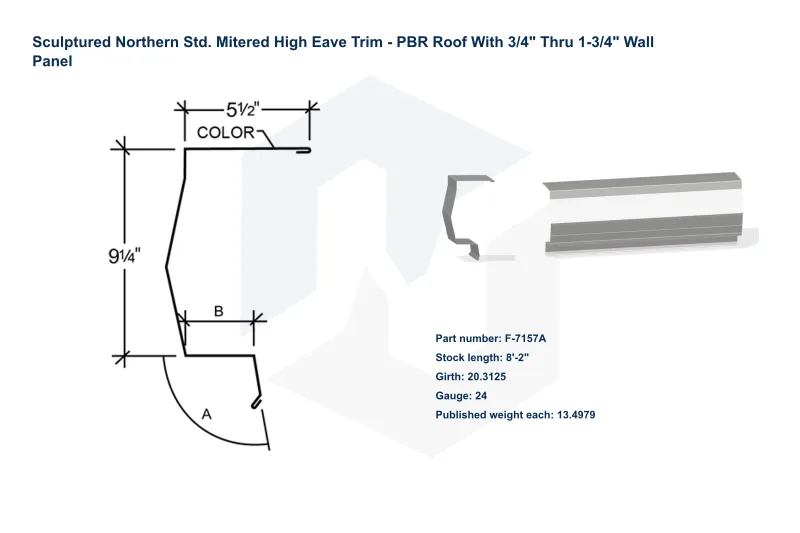

Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
