Sculptured Northern Std. Mitered High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Std. Mitered High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1107179

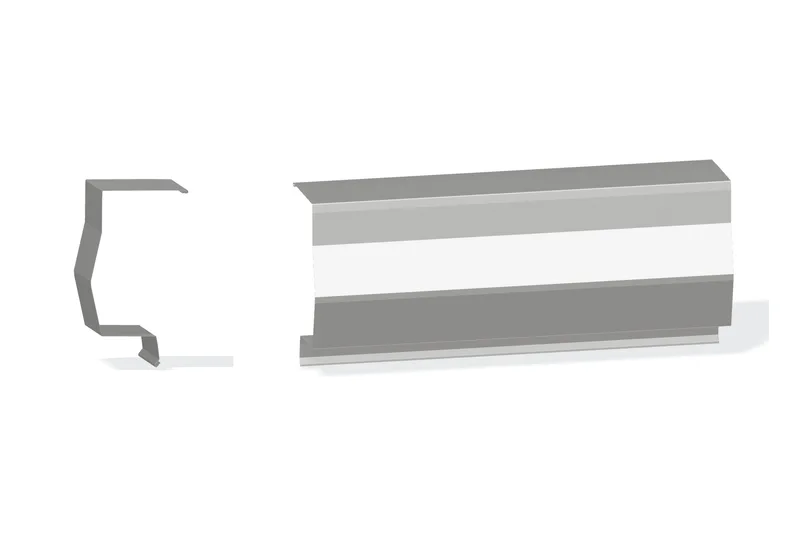

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 24.0625; 24.875; 25.0625; 25.6875; 26.3125; 26.9375; 27.5625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7169A | 8'-2" | 24.0625 | 24 | 15.9899 |
| F-7169A | 8'-2" | 24.0625 | 26 | 12.7427 |
| F-7169B | 8'-2" | 24.875 | 24 | 16.5298 |
| F-7169B | 8'-2" | 24.875 | 26 | 13.173 |
| F-7169C | 8'-2" | 25.0625 | 24 | 16.6544 |
| F-7169C | 8'-2" | 25.0625 | 26 | 13.2723 |
| F-7169D | 8'-2" | 25.6875 | 24 | 17.0697 |
| F-7169D | 8'-2" | 25.6875 | 26 | 13.6033 |
| F-7169E | 8'-2" | 26.3125 | 24 | 17.485 |
| F-7169E | 8'-2" | 26.3125 | 26 | 13.9342 |
| F-7169F | 8'-2" | 26.9375 | 24 | 17.9003 |
| F-7169F | 8'-2" | 26.9375 | 26 | 14.2652 |
| F-7169G | 8'-2" | 27.5625 | 24 | 18.3157 |
| F-7169G | 8'-2" | 27.5625 | 26 | 14.5962 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
