Sculptured Northern Std. High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Std. High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0874593

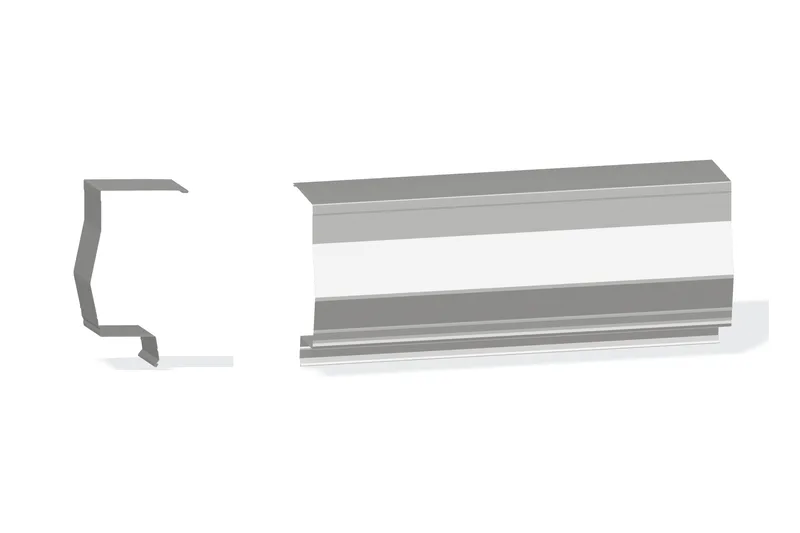

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 24.0625; 24.875; 25.0625; 25.6875; 26.3125; 26.9375; 27.5625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7168A | 20'-2" | 24.0625 | 24 | 39.4852 |
| F-7168A | 20'-2" | 24.0625 | 26 | 31.4667 |
| F-7168B | 20'-2" | 24.875 | 24 | 40.8184 |
| F-7168B | 20'-2" | 24.875 | 26 | 32.5292 |
| F-7168C | 20'-2" | 25.0625 | 24 | 41.1261 |
| F-7168C | 20'-2" | 25.0625 | 26 | 32.7744 |
| F-7168D | 20'-2" | 25.6875 | 24 | 42.1517 |
| F-7168D | 20'-2" | 25.6875 | 26 | 33.5917 |
| F-7168E | 20'-2" | 26.3125 | 24 | 43.1773 |
| F-7168E | 20'-2" | 26.3125 | 26 | 34.4091 |
| F-7168F | 20'-2" | 26.9375 | 24 | 44.2029 |
| F-7168F | 20'-2" | 26.9375 | 26 | 35.2264 |
| F-7168G | 20'-2" | 27.5625 | 24 | 45.2285 |
| F-7168G | 20'-2" | 27.5625 | 26 | 36.0437 |
Product resources
Request current drawings and installation instructions for your selected product.

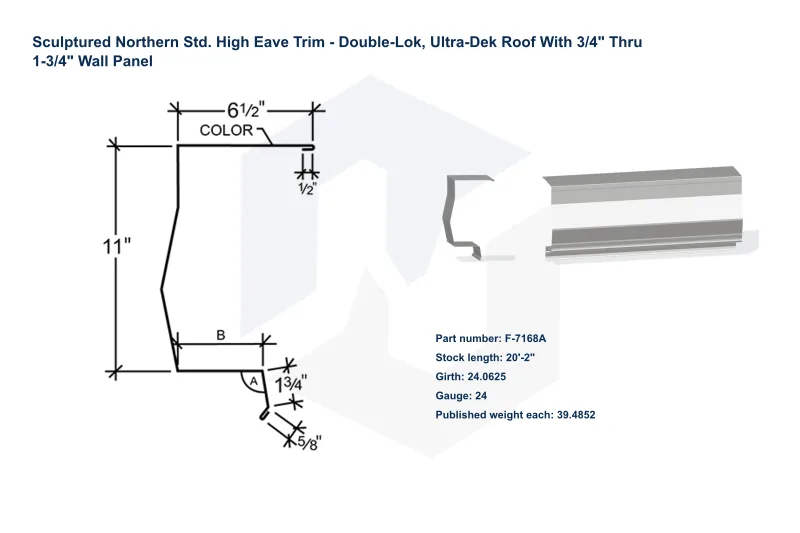

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
