Sculptured Northern Std. High Eave Trim - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Std. High Eave Trim - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0998882

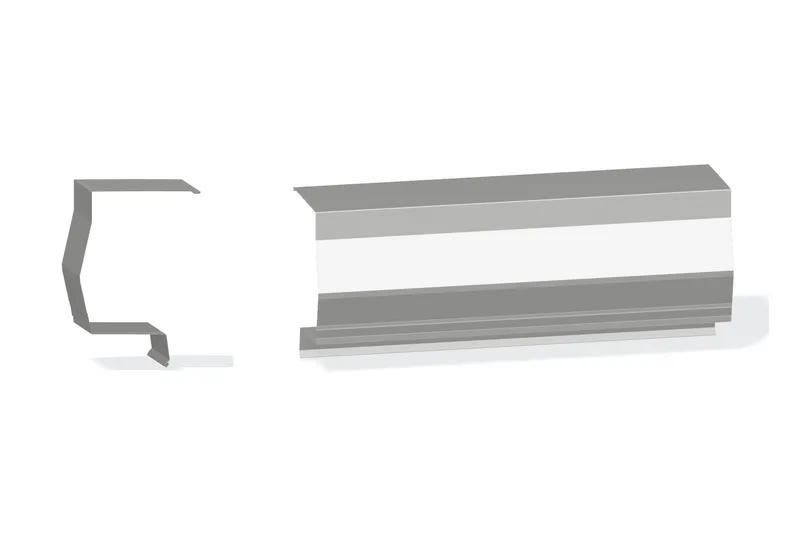

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 25.3125; 25.625; 26.3125; 26.9375; 27.5625; 28.1875; 28.8125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7162A | 20'-2" | 25.3125 | 24 | 41.5363 |
| F-7162A | 20'-2" | 25.3125 | 26 | 33.1013 |
| F-7162B | 20'-2" | 25.625 | 24 | 42.0491 |
| F-7162B | 20'-2" | 25.625 | 26 | 33.51 |
| F-7162C | 20'-2" | 26.3125 | 24 | 43.1773 |
| F-7162C | 20'-2" | 26.3125 | 26 | 34.4091 |
| F-7162D | 20'-2" | 26.9375 | 24 | 44.2029 |
| F-7162D | 20'-2" | 26.9375 | 26 | 35.2264 |
| F-7162E | 20'-2" | 27.5625 | 24 | 45.2285 |
| F-7162E | 20'-2" | 27.5625 | 26 | 36.0437 |
| F-7162F | 20'-2" | 28.1875 | 24 | 46.254 |
| F-7162F | 20'-2" | 28.1875 | 26 | 36.861 |
| F-7162G | 20'-2" | 28.8125 | 24 | 47.2796 |
| F-7162G | 20'-2" | 28.8125 | 26 | 37.6783 |
Product resources
Request current drawings and installation instructions for your selected product.

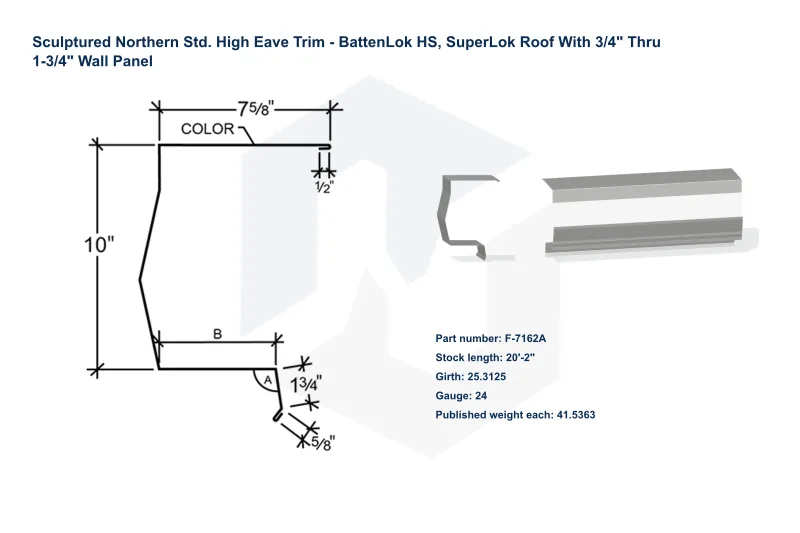

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
