Sculptured Northern Std. High Eave Expansion Cover - PBR Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Std. High Eave Expansion Cover - PBR Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1113617

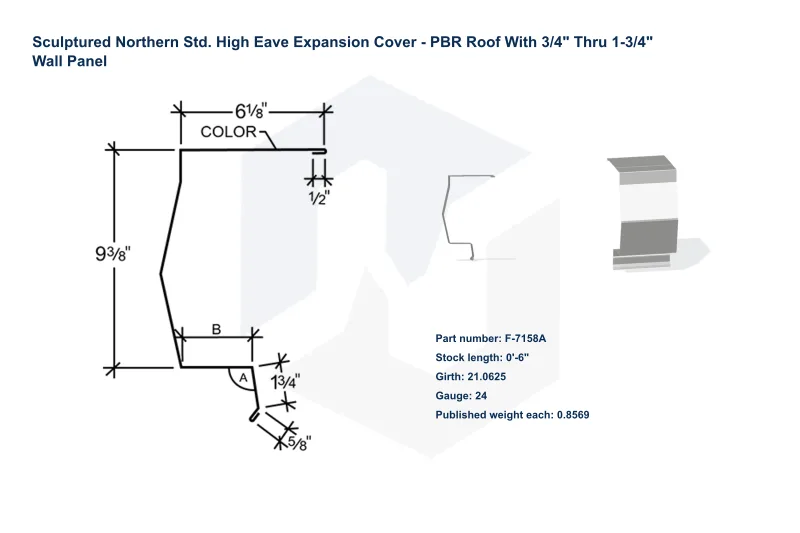

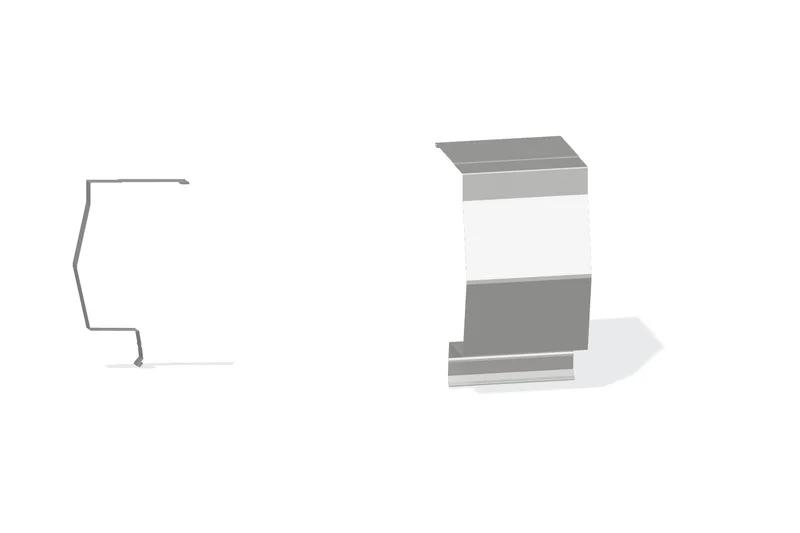

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 21.0625; 21.375; 22.0625; 22.6875; 23.3125; 23.9375; 24.5625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7158A | 0'-6" | 21.0625 | 24 | 0.8569 |
| F-7158A | 0'-6" | 21.0625 | 26 | 0.6829 |
| F-7158B | 0'-6" | 21.375 | 24 | 0.8696 |
| F-7158B | 0'-6" | 21.375 | 26 | 0.693 |
| F-7158C | 0'-6" | 22.0625 | 24 | 0.8976 |
| F-7158C | 0'-6" | 22.0625 | 26 | 0.7153 |
| F-7158D | 0'-6" | 22.6875 | 24 | 0.923 |
| F-7158D | 0'-6" | 22.6875 | 26 | 0.7356 |
| F-7158E | 0'-6" | 23.3125 | 24 | 0.9485 |
| F-7158E | 0'-6" | 23.3125 | 26 | 0.7558 |
| F-7158F | 0'-6" | 23.9375 | 24 | 0.9739 |
| F-7158F | 0'-6" | 23.9375 | 26 | 0.7761 |
| F-7158G | 0'-6" | 24.5625 | 24 | 0.9993 |
| F-7158G | 0'-6" | 24.5625 | 26 | 0.7964 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
