Sculptured Northern Std. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
Sculptured Northern Std. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1081896

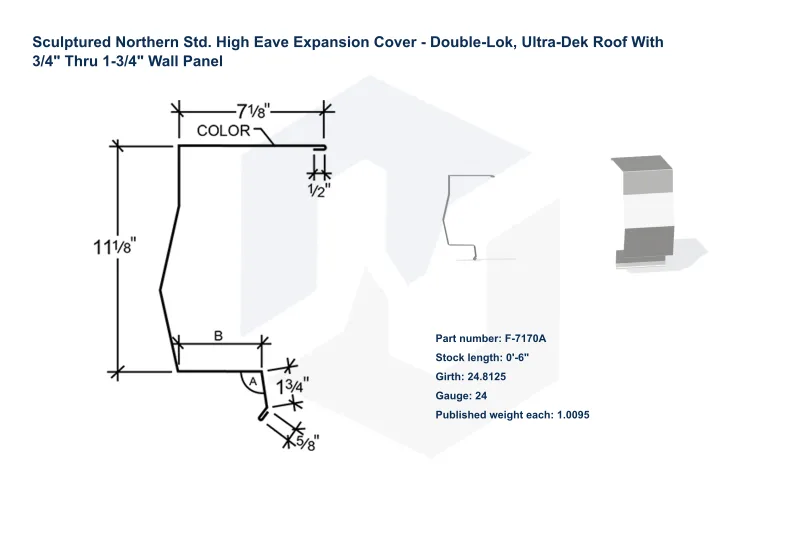

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 24.8125; 25.625; 25.8125; 26.4375; 27.0625; 27.6875; 28.3125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7170A | 0'-6" | 24.8125 | 24 | 1.0095 |
| F-7170A | 0'-6" | 24.8125 | 26 | 0.8045 |
| F-7170B | 0'-6" | 25.625 | 24 | 1.0425 |
| F-7170B | 0'-6" | 25.625 | 26 | 0.8308 |
| F-7170C | 0'-6" | 25.8125 | 24 | 1.0502 |
| F-7170C | 0'-6" | 25.8125 | 26 | 0.8369 |
| F-7170D | 0'-6" | 26.4375 | 24 | 1.0756 |
| F-7170D | 0'-6" | 26.4375 | 26 | 0.8572 |
| F-7170E | 0'-6" | 27.0625 | 24 | 1.101 |
| F-7170E | 0'-6" | 27.0625 | 26 | 0.8774 |
| F-7170F | 0'-6" | 27.6875 | 24 | 1.1265 |
| F-7170F | 0'-6" | 27.6875 | 26 | 0.8977 |
| F-7170G | 0'-6" | 28.3125 | 24 | 1.1519 |
| F-7170G | 0'-6" | 28.3125 | 26 | 0.918 |
Product resources
Request current drawings and installation instructions for your selected product.

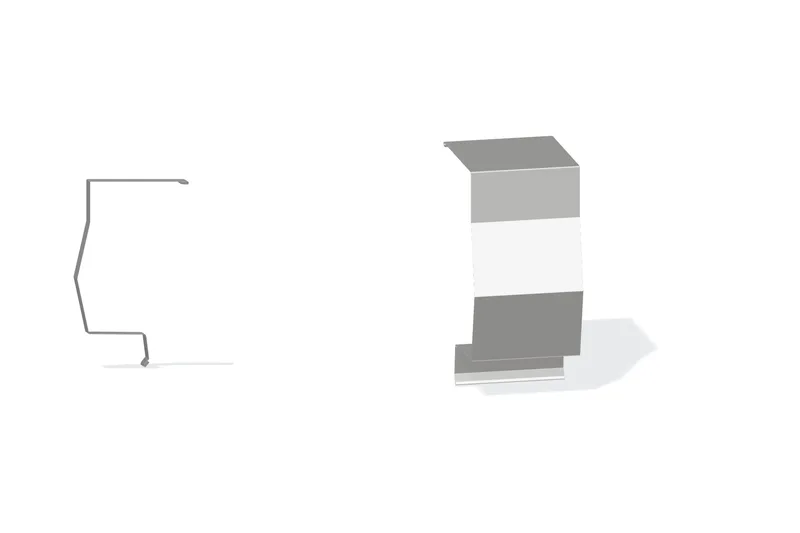

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
