Sculptured Northern Std. High Eave Expansion Cover - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel
Sculptured Northern Std. High Eave Expansion Cover - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0900699

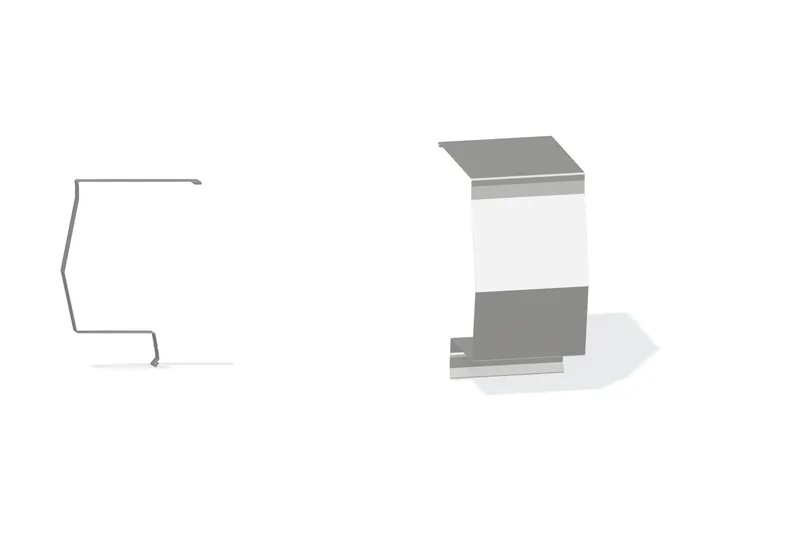

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 26.0625; 26.375; 27.0625; 27.6875; 28.3125; 28.9375; 29.5625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7164A | 0'-6" | 26.0625 | 24 | 1.0603 |
| F-7164A | 0'-6" | 26.0625 | 26 | 0.845 |
| F-7164B | 0'-6" | 26.375 | 24 | 1.0731 |
| F-7164B | 0'-6" | 26.375 | 26 | 0.8551 |
| F-7164C | 0'-6" | 27.0625 | 24 | 1.101 |
| F-7164C | 0'-6" | 27.0625 | 26 | 0.8774 |
| F-7164D | 0'-6" | 27.6875 | 24 | 1.1265 |
| F-7164D | 0'-6" | 27.6875 | 26 | 0.8977 |
| F-7164E | 0'-6" | 28.3125 | 24 | 1.1519 |
| F-7164E | 0'-6" | 28.3125 | 26 | 0.918 |
| F-7164F | 0'-6" | 28.9375 | 24 | 1.1773 |
| F-7164F | 0'-6" | 28.9375 | 26 | 0.9382 |
| F-7164G | 0'-6" | 29.5625 | 24 | 1.2027 |
| F-7164G | 0'-6" | 29.5625 | 26 | 0.9585 |
Product resources
Request current drawings and installation instructions for your selected product.

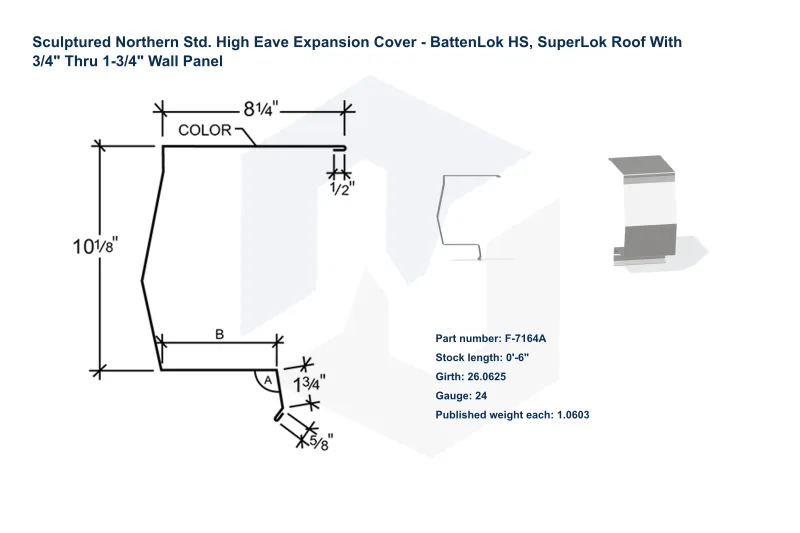

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
