Sculptured Northern Std. Gutter Expansion Cap - PBR, BattenLok HS, SuperLok, Double-Lok, Ultra-Dek
0 ratings0 recorded purchasers
Sculptured Northern Std. Gutter Expansion Cap - PBR, BattenLok HS, SuperLok, Double-Lok, Ultra-Dek. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0746013

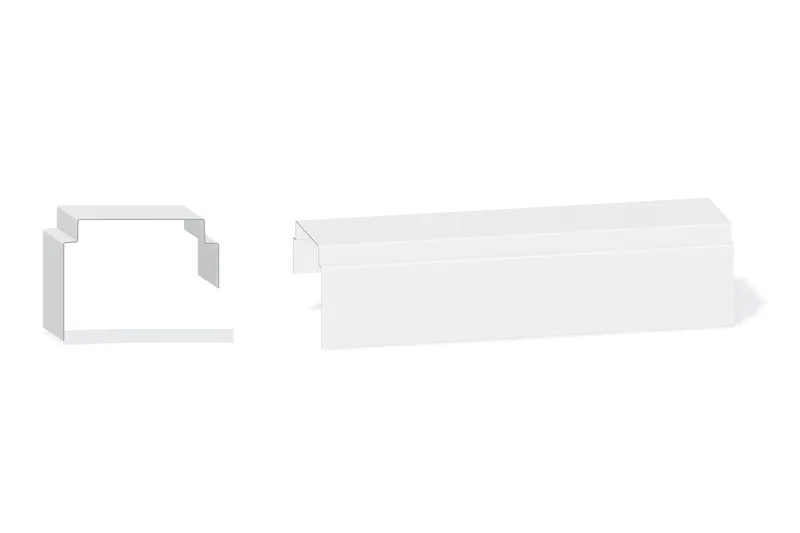

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-8-1/2"
- Published gauges
- 24; 26
- Published girth
- 5.75; 6.1875; 6.75; 7.1875; 7.8125; 8.0625; 8.625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7014A | 0'-8-1/2" | 5.75 | 24 | 0.3314 |
| F-7014A | 0'-8-1/2" | 5.75 | 26 | 0.2641 |
| F-7014B | 0'-8-1/2" | 6.1875 | 24 | 0.3566 |
| F-7014B | 0'-8-1/2" | 6.1875 | 26 | 0.2842 |
| F-7014C | 0'-8-1/2" | 6.75 | 24 | 0.389 |
| F-7014C | 0'-8-1/2" | 6.75 | 26 | 0.31 |
| F-7014D | 0'-8-1/2" | 7.1875 | 24 | 0.4143 |
| F-7014D | 0'-8-1/2" | 7.1875 | 26 | 0.3301 |
| F-7014E | 0'-8-1/2" | 7.8125 | 24 | 0.4503 |
| F-7014E | 0'-8-1/2" | 7.8125 | 26 | 0.3588 |
| F-7014F | 0'-8-1/2" | 8.0625 | 24 | 0.4647 |
| F-7014F | 0'-8-1/2" | 8.0625 | 26 | 0.3703 |
| F-7014G | 0'-8-1/2" | 8.625 | 24 | 0.4971 |
| F-7014G | 0'-8-1/2" | 8.625 | 26 | 0.3962 |
Product resources
Request current drawings and installation instructions for your selected product.

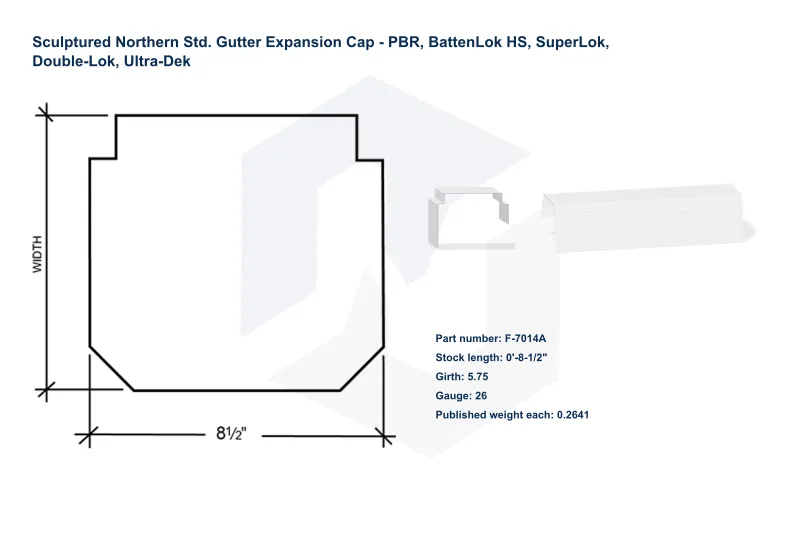

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
