Sculptured Northern Lg. Mitered High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Lg. Mitered High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0885497

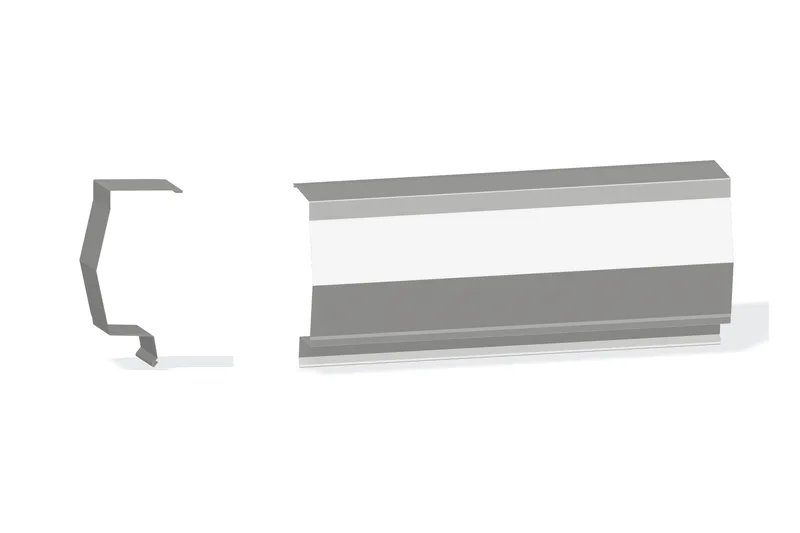

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 22.5; 22.9375; 23.75; 24.5625; 25.375; 26.1875; 26.9375
Supplier specifications

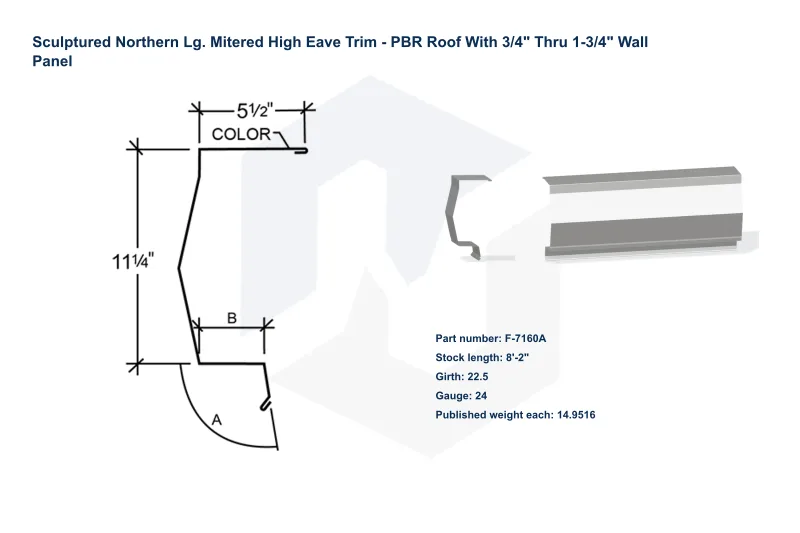

| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7160A | 8'-2" | 22.5 | 24 | 14.9516 |
| F-7160A | 8'-2" | 22.5 | 26 | 11.9153 |
| F-7160B | 8'-2" | 22.9375 | 24 | 15.2423 |
| F-7160B | 8'-2" | 22.9375 | 26 | 12.147 |
| F-7160C | 8'-2" | 23.75 | 24 | 15.7822 |
| F-7160C | 8'-2" | 23.75 | 26 | 12.5772 |
| F-7160D | 8'-2" | 24.5625 | 24 | 16.3221 |
| F-7160D | 8'-2" | 24.5625 | 26 | 13.0075 |
| F-7160E | 8'-2" | 25.375 | 24 | 16.862 |
| F-7160E | 8'-2" | 25.375 | 26 | 13.4378 |
| F-7160F | 8'-2" | 26.1875 | 24 | 17.4019 |
| F-7160F | 8'-2" | 26.1875 | 26 | 13.868 |
| F-7160G | 8'-2" | 26.9375 | 24 | 17.9003 |
| F-7160G | 8'-2" | 26.9375 | 26 | 14.2652 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
